CGY/D-36 (HC); CGY/D-36; CGY/D-42 (HC); CGY/D-42; CGY/D-52 (HC); CGY/D-52
SPRSUN
SPRSUN monoblokli havo manbali suzish havzasi issiqlik nasoslari maksimal chiqish suvining harorati 40 ℃ bo'lgan hovuz suvini isitish va sovutish uchun mo'ljallangan. Ular quyidagi muhim xususiyatlarga ega:
Yuqori COP (5,16 gacha) bilan havodan issiqlikni yutish;
Suvni isitish va sovutish monoblok turi;
Hovuzdagi suvning doimiy harorati (maksimal 40 ℃);
Ishlaydigan havo harorati diapazoni: -10 ℃ dan 45 ℃ gacha;
Titan trubkasidagi issiqlik almashtirgich bilan korroziyaga qarshi;
Avtomatik va majburiy muzdan tushirish funktsiyasi;
Kafolatlangan xavfsizlik: suv va elektr izolyatsiya qilingan;
Atrof-muhitni ifloslantirmasdan operatsion xarajatlarning 65% -80% ni tejang.
Nominal ish holati: quruq lampochka harorati: 24 ℃, ho'l lampochka harorati: 16 ℃, salqin suv harorati: 27 ℃, issiq suv harorati: 29 ℃.
| Model | CGY/D-36(HC) | CGY/D-36 (sovutish yo'q) | CGY/D-42(HC) | CGY/D-42 (sovutish yo'q) | CGY/D-52(HC) | CGY/D-52 (sovutish yo'q) | |
| Quvvatlantirish manbai | V | 380V～415V/50Hz/3ph | |||||
| Sovutgich | R410A | ||||||
| Isitish quvvati (A24/W28) | KVt | 40.0 | 40.0 | 46.0 | 48 | 60.0 | 60.0 |
| Isitishning kirish quvvati | KVt | 7.80 | 7.80 | 8.98 | 9.38 | 11.70 | 11.70 |
| COP | 5.13 | 5.13 | 5.12 | 5.12 | 5.13 | 5.13 | |
| Sovutish quvvati (A35/W28) | KVt | 26.0 | / | 29.9 | / | 39.0 | / |
| Sovutishning kirish quvvati | KVt | 8.45 | / | 9.73 | / | 12.67 | / |
| EER | 3.08 | / | 3.07 | / | 3.08 | / | |
| Nominal oqim | A | 14.8 | 14.8 | 17.1 | 17.8 | 22.2 | 22.2 |
| Maksimal oqim | A | 20.7 | 250 | 23.9 | 250 | 31.1 | 800 |
| Maksimal kirish quvvati | KVt | 10.9 | / | 12.6 | / | 16.4 | / |
| Fan Dvigatel quvvati | V | 250 | 90 | 250 | 90 | 800 | 90 |
| Fan motorining miqdori | Parcha | 2 | 2 | 2 | 2 | 2 | 2 |
| Kondensator | Titan quvurli issiqlik almashtirgich | ||||||
| Suv oqimi | L/soat | 13758 | 13758 | 15821 | 16509 | 20636 | 20636 |
| Suv bosimining pasayishi | Kpa | ≤38 | ≤38 | ≤40 | ≤40 | ≤42 | ≤42 |
| Sof og'irlik | kg | 250 | 250 | 286 | 286 | 325 | 325 |
| Brutto vazni | kg | 268 | 268 | 306 | 306 | 345 | 345 |
| Shovqin | db | 65 | 65 | 66 | 66 | 68 | 68 |
| Suv o'tkazmaydigan tasnifi | IPX4 | ||||||
| Elektr toki urishiga chidamlilik darajasi | I | ||||||
| Quvur hajmi (ichki ip) | mm | 63 | 63 | 63 | 63 | 75 | 75 |
| Hajmi | mm | 1450*740*1150 | 1450*740*1150 | 1580*855*1200 | 1580*855*1200 | 1580*855*1200 | 1580*855*1200 |
| Qadoqlash o'lchami | mm | 1540*820*1320 | 1540*820*1320 | 1700*950*1470 | 1700*950*1470 | 1700*950*1470 | 1700*950*1470 |
| Kompressor modeli/miqdori | ZW54KWP*2 | ZW54KWP*2 | ZW72KWP*2 | ZW72KWP*2 | ZW83KWP*2 | ZW83KWP*2 | |

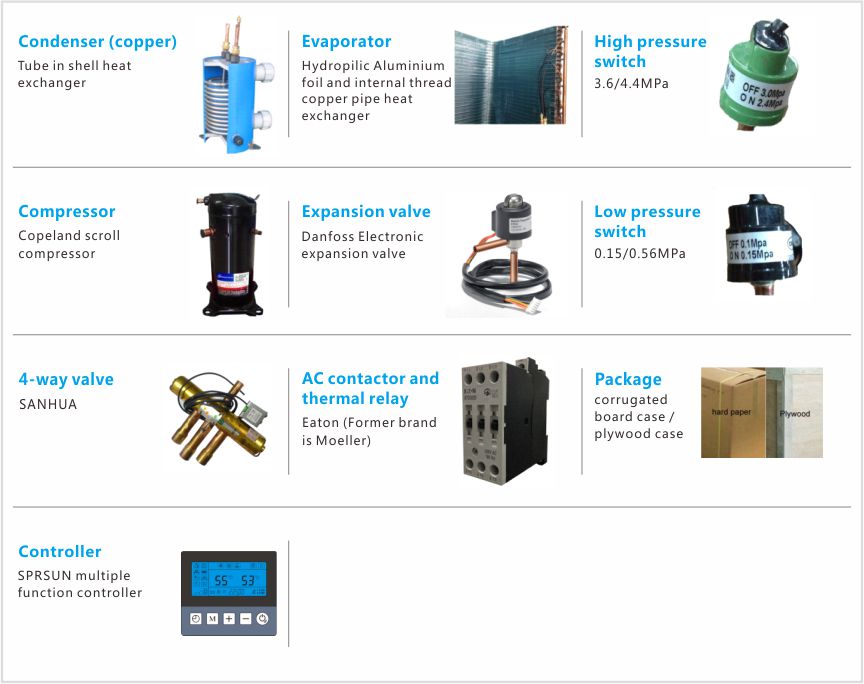

Bizning havo manbali suzish havzasi issiqlik nasoslari Copeland aylantiruvchi kompressor, Danfoss elektron kengaytirish valfi, SANHUA 4 tomonlama vana va boshqalar kabi yuqori sifatli komponentlardan foydalanadi.

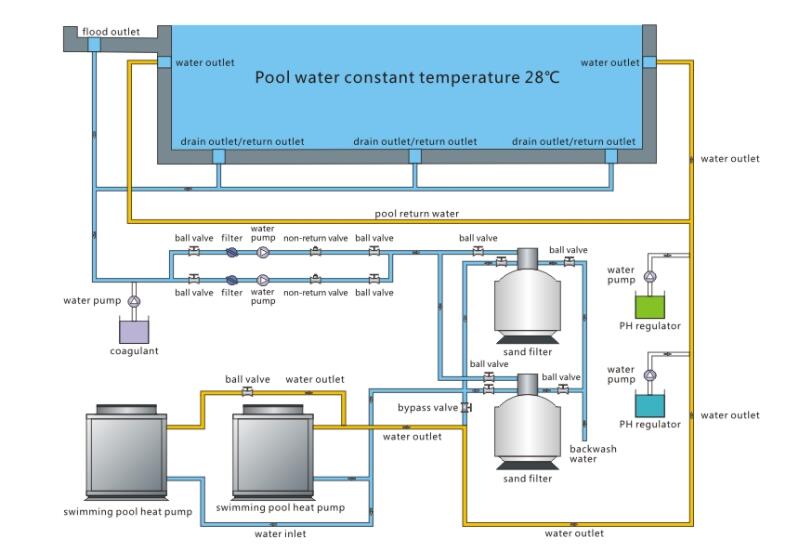

SPRSUN havo manbali suzish havzasi issiqlik nasosini quyidagi tarzda o'rnatish oson:
SPRSUN havo manbali suzish havzasi issiqlik pompasi turli xil ish sharoitlarida:
| Havo harorati ℃ | Suv harorati ℃ |
| W28 | |
| -7 | 3.40 |
| 0 | 4.30 |
| 2 | 4.40 |
| 5 | 4.49 |
| 7 | 4.57 |
| 10 | 4.71 |
| 12 | 4.80 |
| 15 | 4.93 |
| 20 | 5.02 |
| 24 | 5.15 |
Biz sizga kerak bo'lgan har bir tafsilotga e'tibor beramiz!
Super past shovqin: tebranishning oldini olish uchun kompressor va kuchli prokladkalar uchun o'rnatilgan kesilgan kiyimlar
Korroziyaga qarshi: alyuminiy qirrasi
Exellent payvandlash kafolati Oqish yo'q: to'rt tomonlama valfli payvandlash himoyasi
Energiyani tejash: energiya yo'qotilishining oldini olish uchun izolyatsiya uchun 30 mm qalinligi
Foydalanuvchi uchun qulay dizayn: Mashina simidan foydalangan holda RAM dizayni
Ulanishning ishonchliligi: Tayvandan avtomatik shtamplash mashinasini qabul qiling
75% gacha energiya tejash: Quyosh suv isitgichlari, gazli suv isitgichlari va elektr suv isitgichlari bilan taqqoslaganda, SPRSUN havo manbali issiqlik nasosli suv isitgichlari tomonidan tejalgan energiya narxi hayratlanarli.
| Element | SPRSUN issiqlik nasosi | Quyosh suv isitgichi | Gazli suv isitgichi | Elektr suv isitgichi | |
| Issiqlik manbai | elektrlik | quyosh+elektr | tabiiy gaz | suyultirilgan gaz | elektr energiyasi |
| Issiqlik qiymati | 860 kkal/kVt/soat | 860 kkal/kVt/soat | 9000 kkal/ m³ | 1080 kkal / kg | 860 kkal/kVt/soat |
| Samaradorlik | 450% | Elektr isitgichdan 1/3 marta foydalanish | 90% | 85% | 90% |
| Kuniga energiya iste'moli | 2,07 kVt/soat | 3,45 kVt/soat | 0,99 m³ | 0,87 kg | 10,34 kVt/soat |
| Narxi | $0,11/kVt | $0,11/kVt | $0,42/m³ | $1,1/kg | $0,11/kVt |
| Bir kunlik xarajat | $0,23 | $0,38 | $0,42 | $0,96 | $1,14 |
| Yillik xarajat | 84 dollar | 139 dollar | 153 dollar | 350 dollar | 416 dollar |

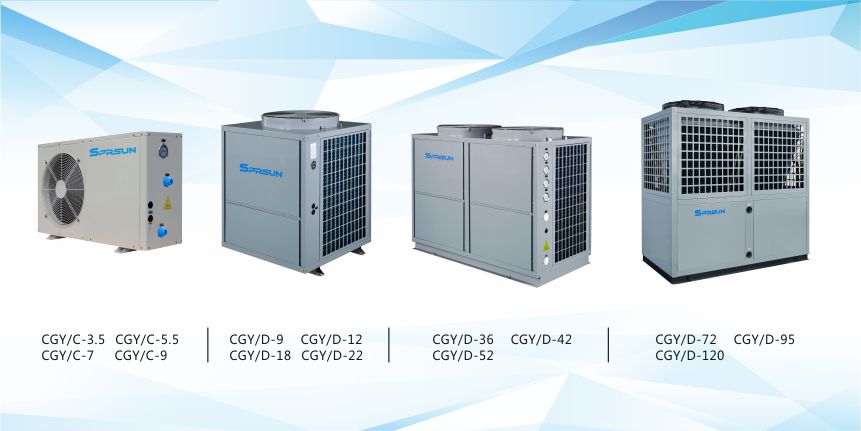

Tegishli modellar quyidagilar:
