CGY/D-36(HC); CGY/D-36; CGY/D-42(HC); CGY/D-42; CGY/D-52(HC); CGY/D-52
SPRSUN

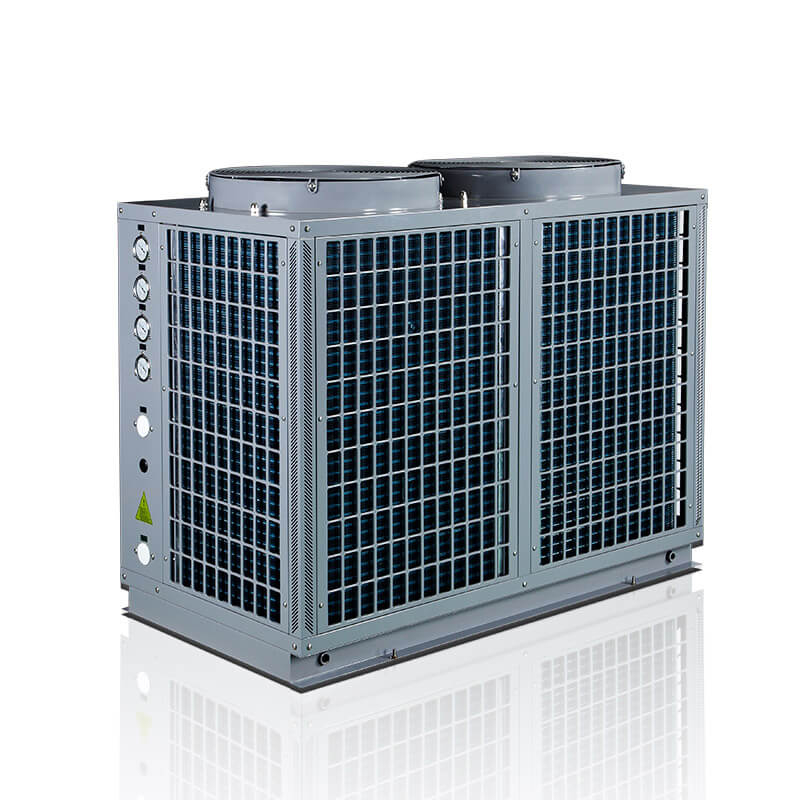

SPRSUN monoblock air source swimming pool heat pumps are designed for pool water heating and cooling with max outlet water temperature 40℃. They have the following important features:
Absorb heat from the air with high COP (up to 5.16);
Water heating and cooling mono-block type;
Constant pool water temperature (max 40℃);
Working air temperature range: -10℃ to 45℃;
Anti-corrosion with Titanium Tube-in-shell Heat Exchanger;
Automatic and forced defrosting function;
Guaranteed safety: water and electricity are isolated;
Save 65%-80% of the operating costs without pollution to the environment.
Rated working condition: dry-bulb temp: 24℃, wet-bulb temp: 16℃, cool water temp: 27℃, hot water temp: 29℃.
| Model | | CGY/D-36(HC) | CGY/D-36(no cooling) | CGY/D-42(HC) | CGY/D-42(no cooling) | CGY/D-52(HC) | CGY/D-52(no cooling) |
| Power Supply | V | 380V～415V/50Hz/3ph | |||||
| Refrigerant | | R410A | |||||
| Heating Capacity（A24/W28） | KW | 40.0 | 40.0 | 46.0 | 48 | 60.0 | 60.0 |
| Input Power of Heating | KW | 7.80 | 7.80 | 8.98 | 9.38 | 11.70 | 11.70 |
| COP | | 5.13 | 5.13 | 5.12 | 5.12 | 5.13 | 5.13 |
| Cooling Capacity（A35/W28） | KW | 26.0 | / | 29.9 | / | 39.0 | / |
| Input Power of Cooling | KW | 8.45 | / | 9.73 | / | 12.67 | / |
| EER | | 3.08 | / | 3.07 | / | 3.08 | / |
| Rated Current | A | 14.8 | 14.8 | 17.1 | 17.8 | 22.2 | 22.2 |
| Max Current | A | 20.7 | 250 | 23.9 | 250 | 31.1 | 800 |
| Max Input Power | KW | 10.9 | / | 12.6 | / | 16.4 | / |
| Fan Motor Power | W | 250 | 90 | 250 | 90 | 800 | 90 |
| Fan Motor Quantity | Piece | 2 | 2 | 2 | 2 | 2 | 2 |
| Condenser | | Titanium Tube-in-shell Heat Exchanger | | ||||
| Water Flow | L/h | 13758 | 13758 | 15821 | 16509 | 20636 | 20636 |
| Water Pressure Drop | Kpa | ≤38 | ≤38 | ≤40 | ≤40 | ≤42 | ≤42 |
| Net Weight | kg | 250 | 250 | 286 | 286 | 325 | 325 |
| Gross Weight | kg | 268 | 268 | 306 | 306 | 345 | 345 |
| Noise | db | 65 | 65 | 66 | 66 | 68 | 68 |
| Waterproof Classification | | IPX4 | |||||
| Electric Shock Proof Grade | | I | |||||
| Pipe Size (Internal Thread) | mm | 63 | 63 | 63 | 63 | 75 | 75 |
| Dimension | mm | 1450*740*1150 | 1450*740*1150 | 1580*855*1200 | 1580*855*1200 | 1580*855*1200 | 1580*855*1200 |
| Packing Dimension | mm | 1540*820*1320 | 1540*820*1320 | 1700*950*1470 | 1700*950*1470 | 1700*950*1470 | 1700*950*1470 |
| Compressor Model/Quantity | | ZW54KWP*2 | ZW54KWP*2 | ZW72KWP*2 | ZW72KWP*2 | ZW83KWP*2 | ZW83KWP*2 |
Our air source swimming pool heat pumps use high quality components such as Copeland scroll compressor, Danfoss electronic expansion valve, SANHUA 4-way valve, etc.
It is easy to install SPRSUN air source swimming pool heat pump as below:
SPRSUN air source swimming pool heat pump cop at different working conditions:
| Air Temp ℃ | Water Temp ℃ |
| | W28 |
| -7 | 3.40 |
| 0 | 4.30 |
| 2 | 4.40 |
| 5 | 4.49 |
| 7 | 4.57 |
| 10 | 4.71 |
| 12 | 4.80 |
| 15 | 4.93 |
| 20 | 5.02 |
| 24 | 5.15 |
We care every detail on what you need!
Super Low Noise: Fitted cut clothes for compressor and strong pads to avoid vibration
Anti-corrosion: Aluminum edging
Exellent Welding Guarantee No Leakage: Four-way valve welding protection
Energy Saving: 30mm thickness for insulation to prevent energy lost
User-friendly Design: Ram design using machine wire
Reliability of the Connection: Adopt automatic stamping machine from Taiwan
Energy Saving Up to 75%: Compared with solar water heaters, gas water heaters and electric water weaters, the energy cost saved by SPRSUN air source heat pump water heaters is shocking.
| Item | SPRSUN Heat Pump | Solar Water Heater | Gas Water Heater | Electric Water Heater | |
| Heat source | electicity | solar+electricity | natural gas | liquefield gas | electricity |
| Heat Value | 860kcal/kw/h | 860kcal/kw/h | 9000kcal/m⊃3; | 1080kcal/kg | 860kcal/kw/h |
| Efficiency | 450% | 1/3 time use of electric heater | 90% | 85% | 90% |
| Energy consumption per day | 2.07kw/h | 3.45kw/h | 0.99m⊃3; | 0.87kg | 10.34kw/h |
| Cost | $0.11/kw.h | $0.11/kw.h | $0.42/m⊃3; | $1.1/kg | $0.11/kw.h |
| Cost per day | $0.23 | $0.38 | $0.42 | $0.96 | $1.14 |
| Annual cost | $84 | $139 | $153 | $350 | $416 |
