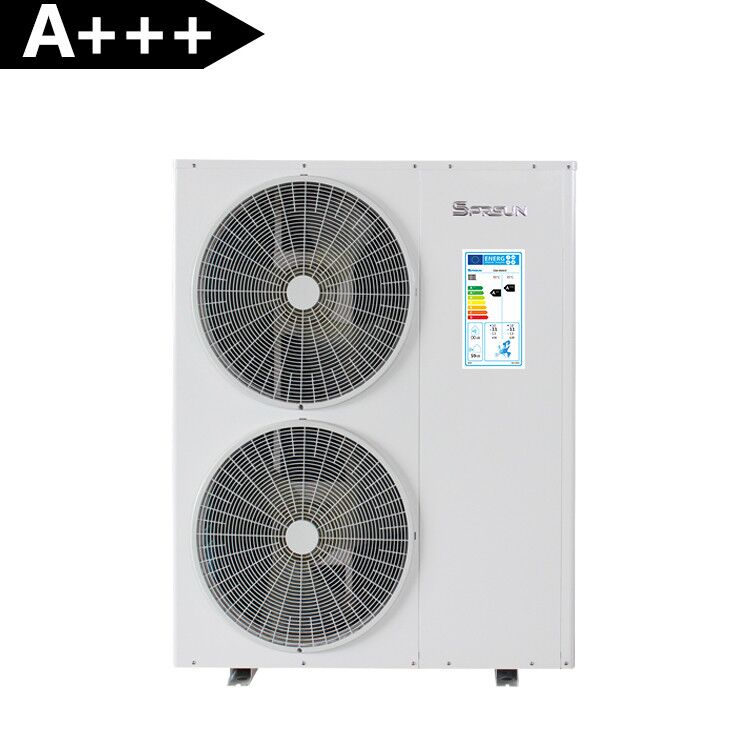

16-18KW A+++ DC Inverter Monoblock Air Source Heat Pump for Hot Water Home Heating Cooling

1. Max. COP: 5.60/5.49/5.65/5.53

2. Power Supply: 220V~240V/50Hz/1ph or 380V~420V/50Hz/3ph

3. Running Temp: -20℃~45℃

4. Max. Heating Capacity: 16.5-18.6KW

5. Max. Cooling Capacity: 14.7-16.6KW

6. Multi-functions: Hot Water/House Heating/House Cooling
Quantity:
  • CGK050V2, CGK060V2
  • SPRSUN

Product-Description

ERP A+++ DC Inverter Heat Pump



Model
CGK050V2 CGK060V2 CGK-050V2 CGK-060V2
Power Supply / Refrigerant V/Hz/Ph 220-240/50/1 - R410A 220-240/50/1 - R410A 380-420/50/3 - R410A 380-420/50/3 - R410A
Max. Heating Capacity (1) kW 16.5 18.5 16.6 18.6
C.O.P (1) W/W 4.48 4.39 4.52 4.42
Heating Capacity Min./Max.(1) kW 7.59 / 16.5 8.51 / 18.5 7.636 / 16.6 8.556 / 18.6
Heating Power Input Min./Max.(1) W 1355 / 3683 1551 / 4214 1352 / 3673 1549 / 4208
C.O.P Min./Max. (1) W/W 4.48 / 5.60 4.39 / 5.49 4.52 / 5.65 4.42 / 5.53
Max. Heating Capacity (2) kW 15.5 17.4 15.6 17.5
C.O.P (2) W/W 3.58 3.40 3.62 3.43
Heating Capacity Min./Max.(2) kW 7.13 / 15.51 8.00 / 17.39 7.18 / 15.60 8.04 / 17.48
Heating power input Min./Max.(2) W 1676 / 4328 1918 / 4952 1672 / 4315 1915 / 4945
C.O.P Min./Max. (2) W/W 3.58 / 4.26 3.51 / 4.17 3.62 / 4.29 3.54 / 4.20
Max. Cooling Capacity (3) kW 14.7 16.5 14.8 16.6
E.E.R (3) W/W 3.48 3.30 3.51 3.32
Cooling Capacity Min./Max.(3) kW 6.78 / 14.73 7.60 / 16.52 6.82 / 14.82 7.64 / 16.61
Cooling Power Input Min./Max.(3) W 1625 / 4953 1859 / 5667 1620 / 4939 1857 / 5659
E.E.R Min./Max. (3) W/W 2.97 / 4.17 2.91 / 4.09 3.00 / 4.21 2.93 / 4.12
Max. Cooling Capacity (4) kW 11.6 13.0 11.7 13.1
E.E.R (4) W/W 2.61 2.48 2.63 2.49
Cooling Capacity Min./Max.(4) kW 5.35 / 11.63 6.00 / 13.04 5.38 / 11.70 6.03 / 13.11
Cooling Power Input Min./Max.(4) W 1458 / 4601 1668 / 5264 1454 / 4587 1666 / 5256
E.E.R Min./Max. (4) W/W 2.53 / 3.67 2.48 / 3.60 2.55 / 3.70 2.49 / 3.62
Rated Current  A 17.6 20.2 7.8 8.9
Max Current A 25.55 29.24 11.24 12.88
Compressor Type - Quantity/System
Twin Rotary - 1 Twin Rotary - 1 Twin Rotary - 1 Twin Rotary - 1
Fan Quantity
2 2 2 2
Airflow m3/h 5000 5500 5000 5500
Rated power W 200 210 200 210
Water Side Heat Exchanger Type
Plate Heat Exchanger Plate Heat Exchanger Plate Heat Exchanger Plate Heat Exchanger
Water Pressure Drop kPa 23 25 23 25
Piping Connection Inch G1" G1" G1" G1"
Allowable Water Flow Min./Rated./Max. L/S 0.49 0.79 1.31 0.55 0.88 1.47 0.50 0.79 1.32 0.56 0.89 1.48
Noise Level
dB(A) 62 63 62 63
Net Dimension(L×D×H) mm 1100*490*1350 1100*490*1350 1100*490*1350 1100*490*1350
Net Weight Kg 124 124 124 124
Note:  (1) Heating condition: water inlet/outlet temperature: 30℃/35℃, Ambient temperature: DB 7℃/WB 6℃;
           (2) Heating condition: water inlet/outlet temperature: 40℃/45℃, Ambient temperature: DB 7℃/WB 6℃;
           (3) Cooling condition: water inlet/outlet temperature: 23℃/18℃, Ambient temperature: DB35℃/WB24℃;
           (4) Cooling condition: water inlet/outlet temperature: 12℃/7℃, Ambient temperature: DB35℃/WB24℃.



ERP A+++ Energy Label



The ERP energy label gives an indication of energy efficiency in products. A rating system of A to G is used to rate the efficiency of products such as heat pumps. The ERP A+++ energy label, rated by TUV SUD, is the highest rating available. This rating indicates that The new DC inverter heat pumps from SPRSUN have been rated ERP A+++ our air source heat pumps have low energy consumption and a high coefficient with a maximum COP of 5.65 and SCOP of 4 88.of performance (COP). The highly energy-efficient DC inverter heat pumps use more than 30% less energy than other air source heat pumps.

Heat Pump COP



Fast Heating Speed



Before the indoor temperature reaches the set value, the Panasonic rotary compressor delivers high levels of efficiency, enabling the unit to operate at high frequency so that it can heat water or provide house heating/cooling at a faster speed.

Fast Heating Curve DC Inverter Heat Pumps



Smart Control



The intelligent CAREL controller with RS485 is adopted to realize the linkage control between the heat pump unit and the terminal application end. With the Cascade function, multiple heat pumps can be controlled at once for greater operating efficiency. The WIFI APP enables users to operate their units through a smart phone wherever and whenever they are.

Smart Control DC Inverter Heat Pump



Super Low Noise



With Panasonic rotary compressor and DC inverter brushless fans, our DC inverter heat pumps adopt new noise reduction measures so that the sound of the unit is controlled at a satisfactory level. SPRSUN Full Inverter Heat Pump Series can realize low noise running of 59dB(A) when testing at sound power, equivalent to 45dB when testing at 1 meter.

Super Low Noise DC Inverter Heat Pumps



Five Working Modes



Mode 1 Central Hot Water: Constant Temperature, Sufficient Water Volume, 24-hour Instant Supply

Mode 2 Central Cooling: Water Cooled Air Conditioning, Soft Air Supply, Comfortable for Human Body.

Mode 3 Whole House Heating: Water Cycled Floor Heating, Well-distributed Heat Dissipation, Healthy & Energy Saving.

Mode 4 Hot Water + House Cooling: Meet the Requirements of Both Central Hot Water and Air Conditioning.

Mode 5 Hot Water + House Heating: Meet the Requirements of Both Central Hot Water and Room Heating.

Five Working Modes DC Inverter Heat Pumps



组 21





Technical Support



Our experienced engineering team provides good support for any questions concerning the products and installation before, during and after products are sold.



Before Selling

  • Set up customers file and arrange professional sales engineers to introduce company products and services to customers in details.

  • If customers are interested in our products, we will send professional technicians to survey the installation environment.

  • Provide solutions according to different customers' requirements.







During Selling

  • Machine installed and tested by QA engineers.

  • Ensure all the products we provide are qualified and new. The working life of the main engine is 15 years.

  • Construct and install the heat pump according to national relevant policies strictly and ensure high quality delivery on time.

  • Test and debug the equipments strictly to ensure the safety and stability.

  • During the delivery, provide comprehensive and professional technical training on instructions and maintenance to customers.







After Selling

  • We promise to offer free consulting call in 7×24 hours mode to solve the problems found in practice. The number is 86-20-82181867.

  • Sprsun offers standard 24-month warranty. Customers can choose to extend the warranty to 5 years with a small amount of fee. Within the warranty period since the delivery date, if the product has any failure under normal usage, Sprsun will provide free assembly parts.

  • After the expiration of the warranty period, we will continue to provide lifelong maintenance services, with just a small amount of charges.
