CGK010V4T200-A; CGK010V4T300-A
SPRSUN

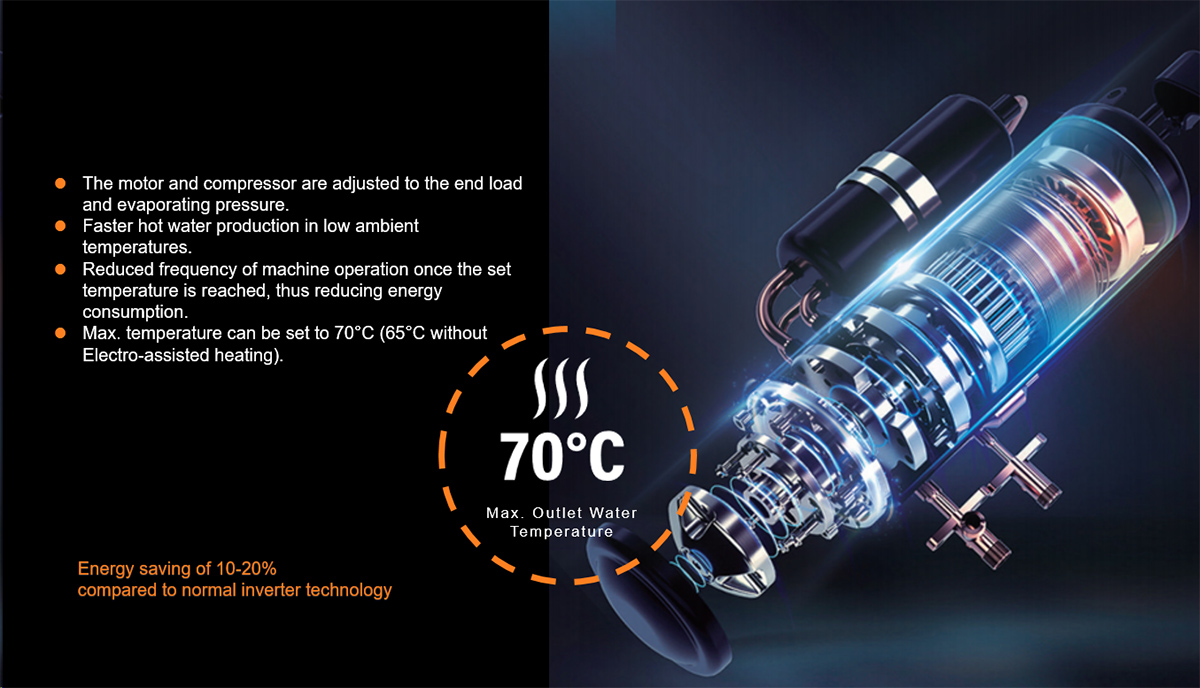

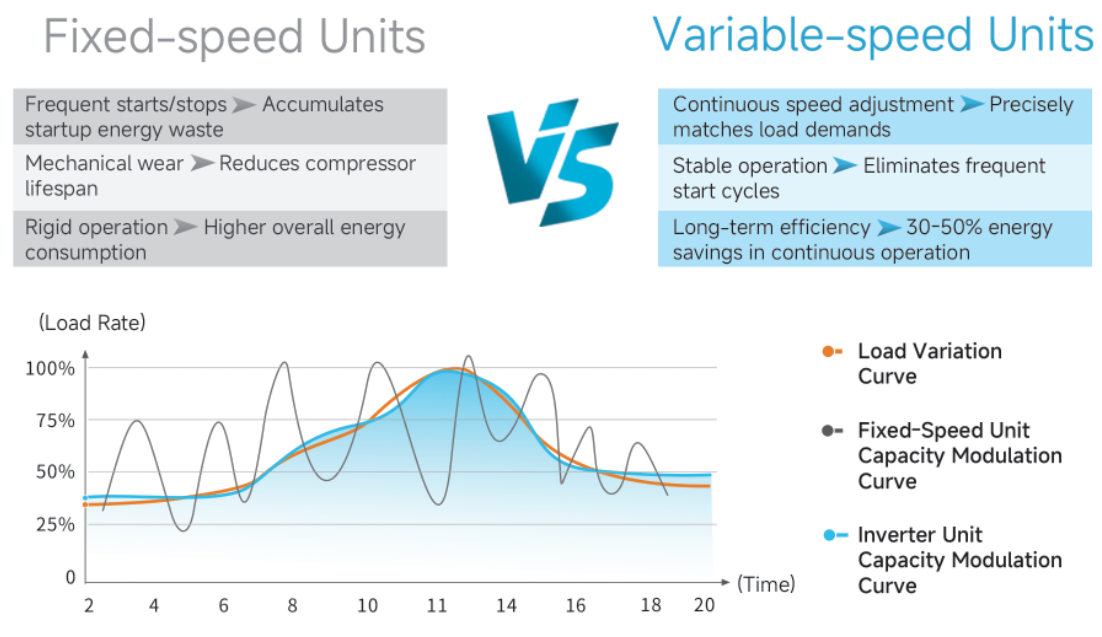

DC Inverter Technology
The motor and compressor are adjusted to the end load and evaporating pressure. Faster hot water production in low ambient temperatures. Reduced frequency of machine operation once the set temperature is reached, thus reducing energy consumption. Max. temperature can be set to 70°C (65°C without Electro-assisted heating).

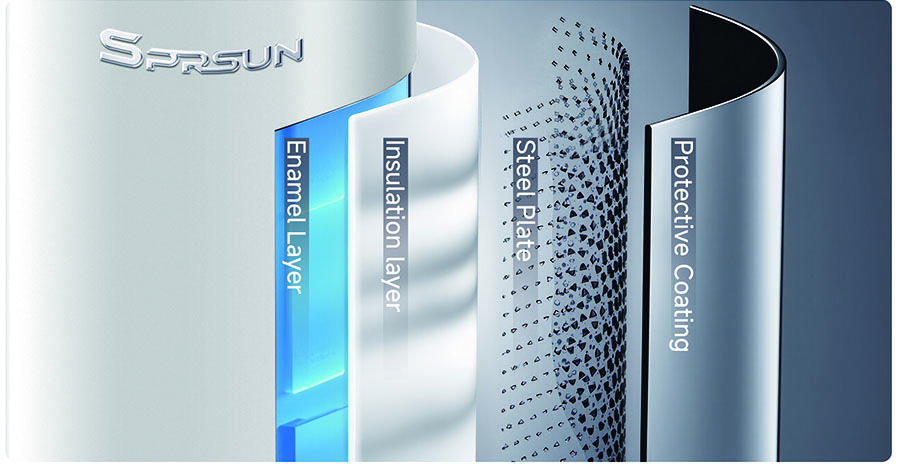

Longer Lifespan
It uses enameled water tanks and multiple anti-corrosion technologies for a longer service life.

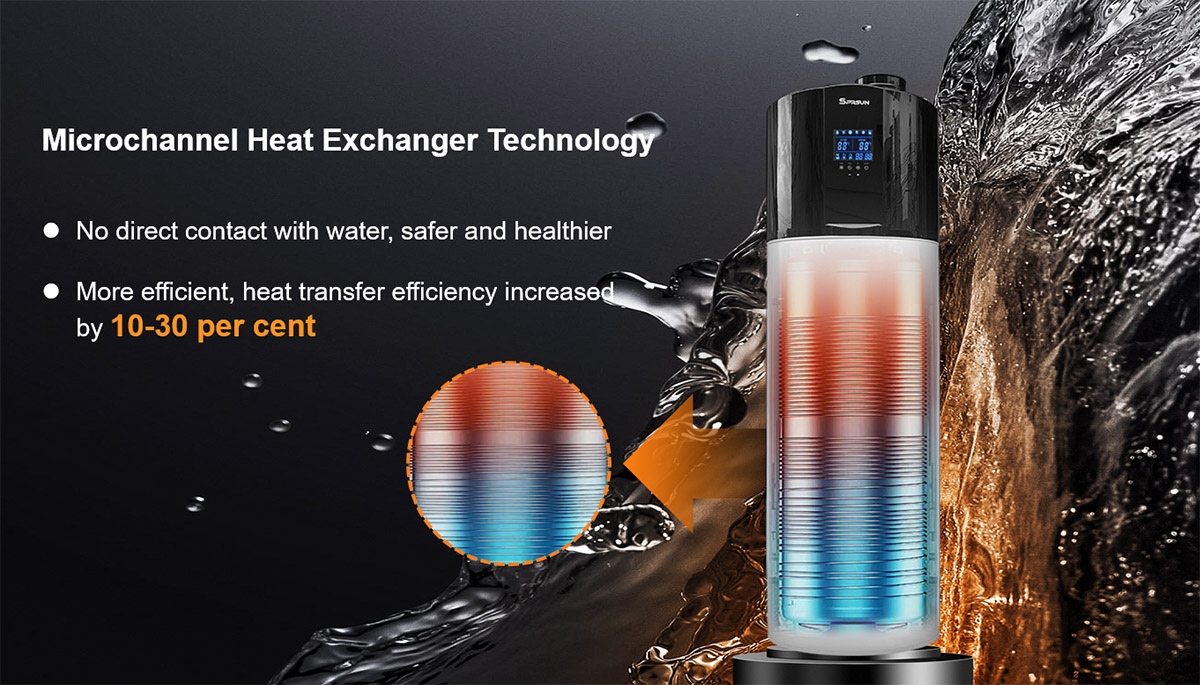

Microchannel Heat Exchanger Technology
The outer disc of the microchannel heat exchanger supports efficient heating without direct contact with water, making it safer and healthier; More efficient, heat transfer efficiency increased by 10-30 per cent.

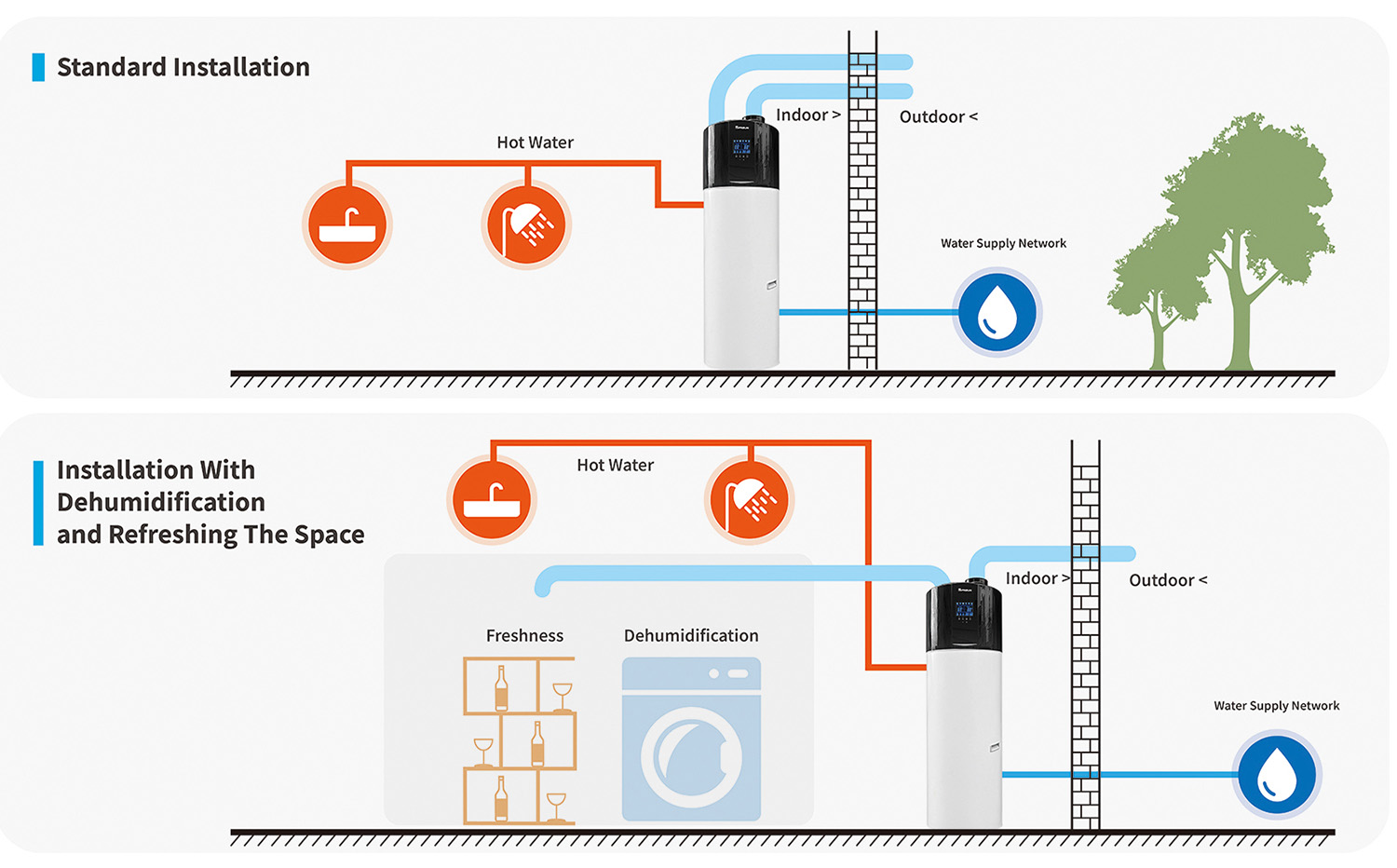

Quick Installation
There is no outdoor unit and it can be safely placed anywhere in the home, paired with a user-friendly draw handles design for easy mobility and installation.
The Specification of AquaHero Series All-in-one Hot Water Heat Pump
| Model | CGK010V4T200-A | CGK010V4T300-A | ||||||
| Power Supply / Refrigerant | V/Hz/Ph | 220-240/50/1 | 220-240/50/1 | |||||
| Rated Heating Capacity | kW | 2.2 | 2.4 | |||||
| Rated Power | kW | 0.55 | 0.66 | |||||
| COP | W/W | 3.42 | 3.40 | |||||
| Electric Heating | kW | 1.5 | 1.5 | |||||
| Warm-up time (warm weather: 14/13°C) | h | 5.1 | 6.5 | |||||
| Max. Running Current | A | 8.40 | 8.40 | |||||
| Water temperature setting range | ℃ | 35~70 | 35~70 | |||||
| Max. Water Outlet Temperature | ℃ | 65 | 65 | |||||
| Max.Outlet water Temp by E-heater | ℃ | 70 | 70 | |||||
| Outdoor Air Temperature range | ℃ | -7~43℃ | -7~43℃ | |||||
| Sound power level | dB(A) | 50 | 52 | |||||
| Condenser | / | Microchanel heat exchanger | Microchanel heat exchanger | |||||
| Water Tank Type | / | Enamel | Enamel | |||||
| Refrigerant/Weight | g | R290/150 | R290/150 | |||||
| Rated water yield | L/h | 46 | 50 | |||||
| Low/High maximum allowable pressure | MPa | 1.0/3.2 | 1.0/3.2 | |||||
| Max. Water operating pressure | MPa | 1.0 | 1.0 | |||||
| Rated water pressure | MPa | 0.7 | 0.7 | |||||
| torage tank volume | L | 200 | 300 | |||||
| Net Dimensions | mm | φ570*φ570*1810 | φ630*φ630*1855 | |||||
| Note: (1) Capacity and pawer input based on the following conditions:Amibient temperature 20°C, water temperature from 15°Cto 55°C | ||||||||
| (2) Noise is tested according to EN 12102 with water 55°C | ||||||||
