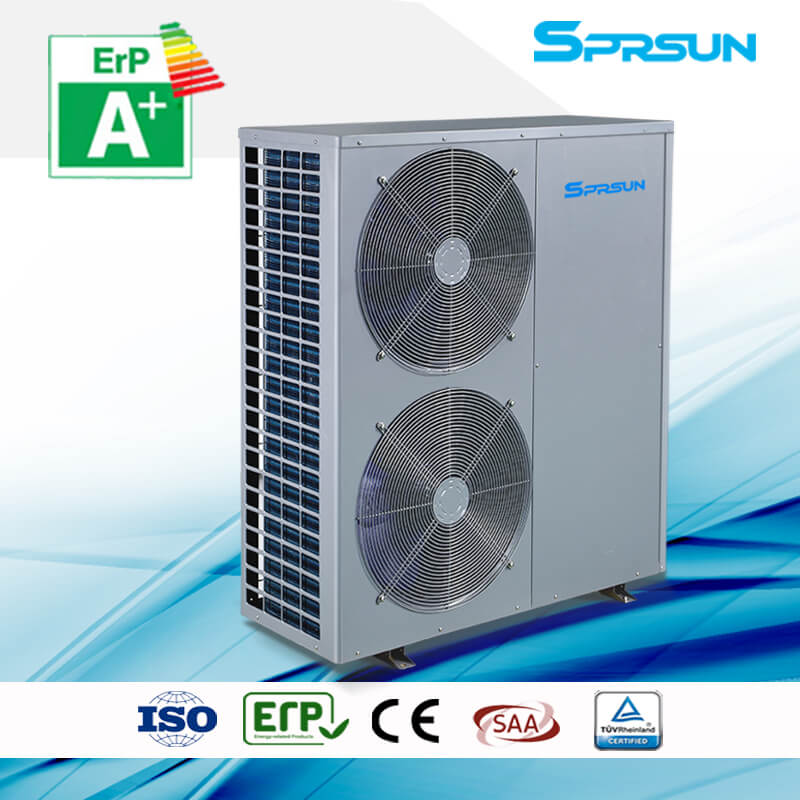

12.5-21KW 80℃ Industrial EVI Hot Water High Temperature Air to Water Heat Pump Heater

1. High COP: 2.85/2.86

2. Max Water Temp: 80℃

3. Power Supply: 220V~415V

4. Running Temp: -10℃~45℃

5. Heating Capacity: 12.5/14/21KW
SKU:
Availability:
Quantity:
  • CGK/C-18(LH) CGK/C-28(LH)
  • SPRSUN

Features of Heat Pumps

EVI High Temp Heat Pump Water Heater


SPRSUN EVI High Temperature Air Source Heat Pumps are designed for commercial/industrial hot water heating with lowest air temperature above -10℃.


  • Efficient and Energy-saving

Heat pump absorbs hot energy from the air freely, and the electricity is only used to drive the compressor to pump up the heat from the air, so it consumes just a quarter of traditional electric water heater, saving lot of power for the user.


  • Green and Environmental Protection

By using air energy and electric energy, there is no harmful gas being discharged during the work of heat pump. R134A refrigerant guarantees fluoride-free emission.


  • Usable All-weather

All weather operation: stable operation without being influenced by any windy, rainy or snowy weather.


  • Endurable

The Enhanced Vapor Injection (EVI) technology from Copeland compressor, Danfoss Electronic expansion valve, Eaton AC contactor and thermal relay and other brand components of the heat pump guarantee high quality and a long lifespan.

All of our screws and clips (both external and internal) are stainless steel. The cabinet we are using is made of  GALVANIZED STEEL, making them more rust resistant and durable.


  • Multiple Protections

For example, if water flow is not enough in the system, the system will show high pressure protection and stop the heat pump automatically to protect the compressor from being damaged. Also, there is high current protection: if the power supply is not stable, the heat pump will show the high current error to stop the heat pump and avoid compressor damage


  • Linkage Function

External signal on/off function


  • Guaranteed Safety

Complete isolation of water and electricity avoids electric shock, explosion and poisoning.


Important Features of EVI High Temp Air to Water Heat Pumps



Heat Pump Specifications


  • Rated working condition: dry-bulb temp: 20℃, wet-bulb temp: 15℃, cool water temp: 15℃, hot water temp: 75℃.

Model
CGK/C-18(LH) CGK/C-18(LH) CGK/C-28(LH)
Power Supply V 220V~240V/50Hz/1ph 380V~415V/50Hz/3ph
Refrigerant
R134A
Heating Capacity KW 12.5 14 21
Input Power KW 4.37 4.91 7.37
COP
2.86 2.85 2.85
Rated Current A 22.1 9.3 14.0
Max Current A 29.8 12.6 18.9
Fan Motor Power W 90 90 100
Fan Motor Quantity Piece 2 2 2
Water Rate L/h 179 201 301
Water Flow L/h 3583 4013 6019
Water Pressure Drop Kpa ≤50 ≤50 ≤52
Net Weight kg 164 164 200
Gross Weight kg 174 174 215
Noise db 60 60 59
Waterproof Classification
IPX4
Electric Shock Proof Grade
I
Pipe Size (Internal Thread) mm 25 25 25
Dimension mm 1090*480*1260 1090*480*1260 1237*480*1410
Packing Dimension mm 1160*500*1410 1160*500*1410 1300*540*1580
Compressor Model/Quantity
ZW52KSE*1 ZW61KSE*1 ZW79KAE



Heat Pump Components


SPRSUN EVI High Temperature Heat Pumps use high quality components, such as Copeland Enhanced vapour injection (EVI) technologh compressor, Danfoss Electronic expansion valve and Eaton AC contactor and thermal relay.

Materials of EVI High Temp Air to Water Heat Pumps



installing heat pumps


It is easy to install SPRSUN air source high temp heat pump as below:

Installation Diagram of EVI High Temp Air to Water Heat Pumps



COP of heat pumps


SPRSUN EVI High Temperature Air source Heat Pump COP at different temp conditions:

Air Temp ℃                                                 Water Temp ℃

15-40 15-50 15-60 15-70 15-75
-7 2.44 2.32 2.21 2.12 2.06
2 3.05 2.90 2.76 2.65 2.57
7 3.09 2.93 2.79 2.68 2.60
10 3.15 2.99 2.84 2.73 2.65
15 3.25 3.08 2.93 2.82 2.74
20 3.38 3.21 3.05 2.94 2.85
25 3.55 3.37 3.21 3.08 2.99
30 3.73 3.53 3.37 3.24 3.14



workmanship of heat pumps


We care every detail on what you need!


Super Low Noise: Fitted cut clothes for compressor and strong pads to avoid vibration

Anti-corrosion: Aluminum edging

Exellent Welding Guarantee No Leakage: Four-way valve welding protection


low noise heat pumps


Energy Saving: 30mm thickness for insulation to prevent energy lost

User-friendly Design: Ram design using machine wire

Reliability of the Connection: Adopt automatic stamping machine from Taiwan


energy saving heat pumps



economic analysis of heat pumps


Energy Saving Up to 75%: Compared with solar water heaters, gas water heaters and electric water weaters, the energy cost saved by SPRSUN air source heat pump water heaters is shocking.

Item

SPRSUN

Heat Pump

Solar

Water Heater

         Gas Water Heater Electric Water Heater
Heat source electicity solar+electricity natural gas liquefield gas electricity
Heat Value 860kcal/kw/h 860kcal/kw/h 9000kcal/m³ 1080kcal/kg 860kcal/kw/h
Efficiency 450%

1/3 time use of

electric heater

90% 85% 90%

Energy consumption

per day

2.07kw/h 3.45kw/h 0.99m³ 0.87kg 10.34kw/h
Cost $0.11/kw.h $0.11/kw.h $0.42/m³ $1.1/kg $0.11/kw.h
Cost per day $0.23 $0.38 $0.42 $0.96 $1.14
Annual cost $84 $139 $153 $350 $416



Heat Pump Models


Related models are as below:

EVI High Temp Heat Pump Models



Heat Pump Technical Support


Our experienced engineering team provides good support for any questions concerning the products and installation before, during and after products are sold.


Before Selling

  • Set up customers file and arrange professional sales engineers to introduce company products and services to customers in details.

  • If customers are interested in our products, we will send professional technicians to survey the installation environment.

  • Provide solutions according to different customers' requirements.


During Selling

  • Machine installed and tested by QA engineers.

  • Ensure all the products we provide are qualified and new. The working life of the main engine is 15 years.

  • Construct and install the heat pump according to national relevant policies strictly and ensure high quality delivery on time.

  • Test and debug the equipments strictly to ensure the safety and stability.

  • During the delivery, provide comprehensive and professional technical training on instructions and maintenance to customers.


After Selling

  • We promise to offer free consulting call in 7×24 hours mode to solve the problems found in practice. The number is 86-20-82181867.

  • Sprsun offers 18-month long warranty. Within 18 months since the delivery date, if the product has any failure under normal usage, Sprsun will provide free assembly parts.

  • After the expiration of the warranty period, we will continue to provide lifelong maintenance services, with just a small amount of charges.
