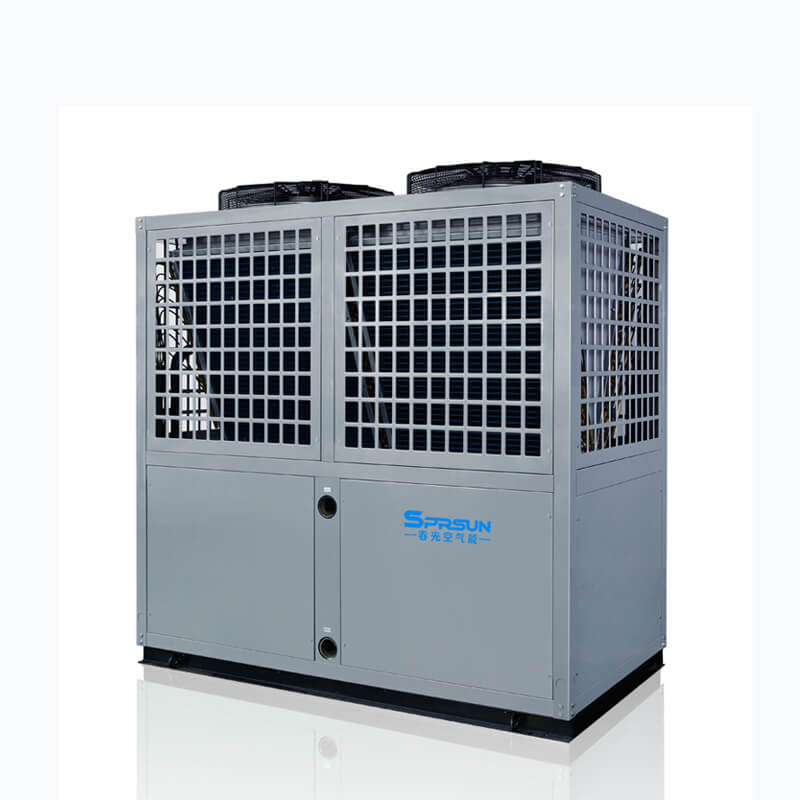

CGK/D-52(H) CGK/D-72(H) CGK/D-95(H)
SPRSUN
SPRSUN high temperature air source heat pumps are designed for commercial/industrial hot water heating with max outlet water temperature 80℃. They have the following important features:
Heating mode, mono-block type;
When air temprature range is 5℃ to 45℃, max outlet water temperature can reach 80℃;
Control object: hot water tank temperature; setting range: 30℃~75℃;
Control way: wire controller;
Water pump: stop when water reach preset temperature;
Refrigerant: R134A
Rated working condition: dry-bulb temp: 20℃, wet-bulb temp: 15℃, cool water temp: 15℃, hot water temp: 75℃.
| Model | | CGK/D-52(H) | CGK/D-72(H) | CGK/D-95(H) |
| Power Supply | V | 380V～415V/50Hz/3ph | ||
| Refrigerant | | R134A | ||
| Heating Capacity | KW | 42 | 55 | 68 |
| Input Power | KW | 14.74 | 19.23 | 23.86 |
| COP | | 2.85 | 2.86 | 2.85 |
| Rated Current | A | 28 | 36.5 | 45.3 |
| Max Current | A | 37.8 | 49.3 | 61.2 |
| Fan Motor Power | W | 250 | 800 | 1100 |
| Fan Motor Quantity | Piece | 2 | 2 | 2 |
| Water Rate | L/h | 602 | 788 | 974 |
| Water Flow | L/h | 12038 | 15764 | 19490 |
| Water Pressure Drop | Kpa | ≤60 | ≤65 | ≤70 |
| Net Weight | kg | 380 | 482 | 582 |
| Gross Weight | kg | 399 | 506 | 611 |
| Noise | db | 68 | 72 | 75 |
| Waterproof Classification | | IPX4 | ||
| Electric Shock Proof Grade | | I | ||
| Pipe Size (Internal Thread) | mm | 40 | 50 | 65 |
| Dimension | mm | 1500*800*1515 | 1850*1000*1950 | 2000*1100*2080 |
| Packing Dimension | mm | 1550*850*1665 | 1940*1120*2180 | 2090*1200*2260 |
| Compressor Model/Quantity | | ZW79KAE*2 | ZW108KAE*2 | VR144KSE*2 |
Our air source high temperature heat pumps use high quality components such as Copeland scroll compressor, Emerson thermal expansion valve, SANHUA 4-way valve, etc.
It is easy to install SPRSUN air source high temp heat pump as below:
SPRSUN high temperature air source heat pump cop at different working conditions:
| Air Temp ℃ | Water Temp ℃ | ||||
| | 15-40 | 15-50 | 15-60 | 15-70 | 15-75 |
| 7 | 3.09 | 2.93 | 2.79 | 2.68 | 2.60 |
| 10 | 3.15 | 2.99 | 2.84 | 2.73 | 2.65 |
| 15 | 3.25 | 3.08 | 2.93 | 2.82 | 2.74 |
| 20 | 3.38 | 3.21 | 3.05 | 2.94 | 2.85 |
| 25 | 3.55 | 3.37 | 3.21 | 3.08 | 2.99 |
| 30 | 3.73 | 3.53 | 3.37 | 3.24 | 3.14 |
We care every detail on what you need!
Super Low Noise: Fitted cut clothes for compressor and strong pads to avoid vibration
Anti-corrosion: Aluminum edging
Exellent Welding Guarantee No Leakage: Four-way valve welding protection
Energy Saving: 30mm thickness for insulation to prevent energy lost
User-friendly Design: Ram design using machine wire
Reliability of the Connection: Adopt automatic stamping machine from Taiwan
Energy Saving Up to 75%: Compared with solar water heaters, gas water heaters and electric water weaters, the energy cost saved by SPRSUN air source heat pump water heaters is shocking.
| Item | SPRSUN Heat Pump | Solar Water Heater | Gas Water Heater | Electric Water Heater | |
| Heat source | electicity | solar+electricity | natural gas | liquefield gas | electricity |
| Heat Value | 860kcal/kw/h | 860kcal/kw/h | 9000kcal/m⊃3; | 1080kcal/kg | 860kcal/kw/h |
| Efficiency | 450% | 1/3 time use of electric heater | 90% | 85% | 90% |
| Energy consumption per day | 2.07kw/h | 3.45kw/h | 0.99m⊃3; | 0.87kg | 10.34kw/h |
| Cost | $0.11/kw.h | $0.11/kw.h | $0.42/m⊃3; | $1.1/kg | $0.11/kw.h |
| Cost per day | $0.23 | $0.38 | $0.42 | $0.96 | $1.14 |
| Annual cost | $84 | $139 | $153 | $350 | $416 |
