CGY/D-72(HC); CGY/D-95(HC); CGY/D-120(HC); CGY/D-72; CGY/D-95; CGY/D-120
SPRSUN

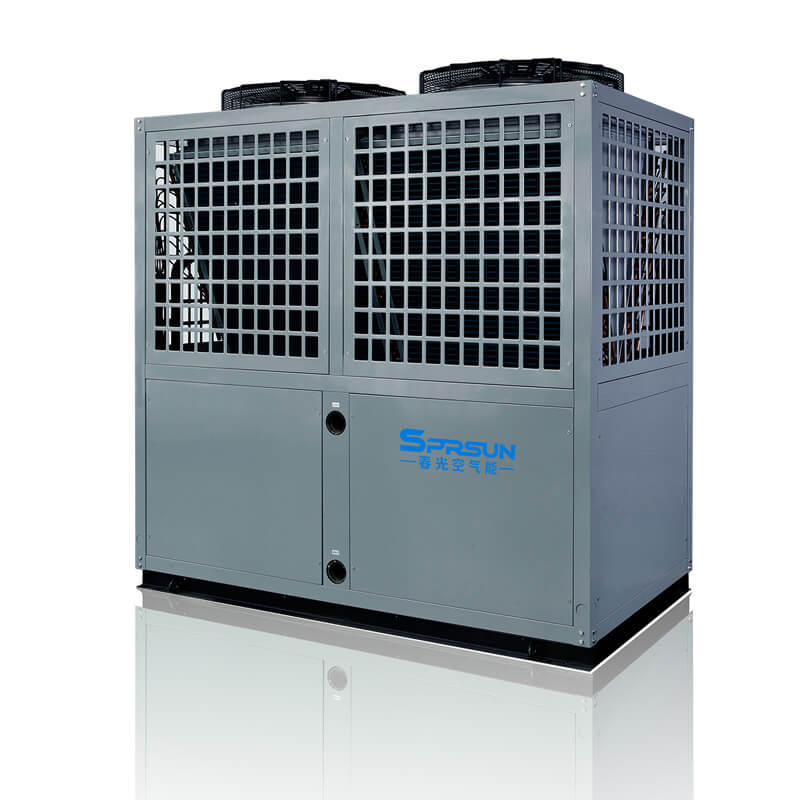

SPRSUN Top Discharge Swimming Pool Air Source Heat Pumps are designed for commercial pool water heating. They have the following important features:
Constant pool water temperature;
Absorb heat from the air with high COP (up to 5.16);
Working air temperature range: -10℃ to 45℃;
Automatic control of pool water temperature;
Max outlet water temperature: 40℃;
Guaranteed safety: water and electricity are isolated;
Anti-corrosion with Titanium tube-in-shell heat exchanger;
Save 65%-80% of the operating costs without pollution to the environment.
Rated working condition: dry-bulb temp: 24℃, wet-bulb temp: 16℃; water inlet temp: 27℃; water outlet temp: 29℃.
Model | | CGY/D-72 (Hot &Cool) | CGY/D-95 (Hot &Cool) | CGY/D-120 (Hot &Cool) | CGY/D-36 (No cooling) | CGY/D-42 (No cooling) | CGY/D-52 (No cooling) |
Power Supply | V | 380V~415V/50Hz/3ph | |||||
Refrigerant | | R407C | R140A | ||||
Heating Capacity(A24/W28) | KW | 80.0 | 100.0 | 120.0 | 40.0 | 48.0 | 60.0 |
Input Power of Heating | KW | 15.53 | 19.38 | 23.26 | 7.80 | 9.38 | 11.70 |
COP | | 5.15 | 5.16 | 5.16 | 5.13 | 5.12 | 5.13 |
Cooling Capacity(A35/W28) | KW | 52.0 | 65.0 | 78.0 | / | / | / |
Input Power of Cooling | KW | 16.83 | 20.99 | 25.19 | / | / | / |
EER | | 3.09 | 3.10 | 3.10 | / | / | / |
Rated Current | A | 29.5 | 36.8 | 44.2 | 14.8 | 17.8 | 22.2 |
Max Current | A | 41.3 | 51.5 | 61.8 | 250 | 250 | 800 |
Max Input Power | KW | 21.7 | 27.1 | 32.6 | / | / | / |
Fan Motor Power | W | 800 | 1150 | 1150 | 90 | 90 | 90 |
Fan Motor Quantity | Piece | 2 | 2 | 2 | 2 | 2 | 2 |
Condenser | | Titanium Tube-in-shell Heat Exchanger | |||||
Water Flow | L/h | 27515 | 34394 | 41273 | 13758 | 16509 | 20636 |
Water Pressure Drop | Kpa | ≤45 | ≤48 | ≤50 | ≤38 | ≤40 | ≤42 |
Net Weight | kg | 482 | 582 | 710 | 250 | 286 | 325 |
Gross Weight | kg | 506 | 611 | 745 | 268 | 306 | 345 |
Noise | db | 75 | 78 | 79 | 65 | 66 | 68 |
Waterproof Classification | | IPX4 | |||||
Electric Shock Proof Grade | | I | |||||
Pipe Size (Internal Thread) | mm | 75 | 90 | 90 | 63 | 63 | 75 |
Dimension | mm | 1850*1000*1950 | 2000*1100*2080 | 2200*1100*2080 | 1450*740*1150 | 1580*855*1200 | 1580*855*1200 |
Packing Dimension | mm | 1940*1120*2180 | 2090*1200*2260 | 2290*1200*2260 | 1540820*1320 | 1700*950*1470 | 1700950*1470 |
Compressor Model/Quantity | | ZW54KWP*2 | VR144KSE*2 | ZW108KAE*3 | | | |
It is easy to install SPRSUN swimming pool heat pump as shown by the following diagram:
We care every detail on what you need!
Super Low Noise: Fitted cut clothes for compressor and strong pads to avoid vibration
Anti-corrosion: Aluminum edging
Exellent Welding Guarantee No Leakage: Four-way valve welding protection
Energy Saving: 30mm thickness for insulation to prevent energy lost
User-friendly Design: Ram design using machine wire
Reliability of the Connection: Adopt automatic stamping machine from Taiwan
Related models are as below:
SPRSUN Top Discharge Swimming Pool Air Source Heat Pumps are designed for commercial pool water heating. They have the following important features:
Constant pool water temperature;
Absorb heat from the air with high COP (up to 5.16);
Working air temperature range: -10℃ to 45℃;
Automatic control of pool water temperature;
Max outlet water temperature: 40℃;
Guaranteed safety: water and electricity are isolated;
Anti-corrosion with Titanium tube-in-shell heat exchanger;
Save 65%-80% of the operating costs without pollution to the environment.
Rated working condition: dry-bulb temp: 24℃, wet-bulb temp: 16℃; water inlet temp: 27℃; water outlet temp: 29℃.
Model | | CGY/D-72 (Hot &Cool) | CGY/D-95 (Hot &Cool) | CGY/D-120 (Hot &Cool) | CGY/D-36 (No cooling) | CGY/D-42 (No cooling) | CGY/D-52 (No cooling) |
Power Supply | V | 380V~415V/50Hz/3ph | |||||
Refrigerant | | R407C | R140A | ||||
Heating Capacity(A24/W28) | KW | 80.0 | 100.0 | 120.0 | 40.0 | 48.0 | 60.0 |
Input Power of Heating | KW | 15.53 | 19.38 | 23.26 | 7.80 | 9.38 | 11.70 |
COP | | 5.15 | 5.16 | 5.16 | 5.13 | 5.12 | 5.13 |
Cooling Capacity(A35/W28) | KW | 52.0 | 65.0 | 78.0 | / | / | / |
Input Power of Cooling | KW | 16.83 | 20.99 | 25.19 | / | / | / |
EER | | 3.09 | 3.10 | 3.10 | / | / | / |
Rated Current | A | 29.5 | 36.8 | 44.2 | 14.8 | 17.8 | 22.2 |
Max Current | A | 41.3 | 51.5 | 61.8 | 250 | 250 | 800 |
Max Input Power | KW | 21.7 | 27.1 | 32.6 | / | / | / |
Fan Motor Power | W | 800 | 1150 | 1150 | 90 | 90 | 90 |
Fan Motor Quantity | Piece | 2 | 2 | 2 | 2 | 2 | 2 |
Condenser | | Titanium Tube-in-shell Heat Exchanger | |||||
Water Flow | L/h | 27515 | 34394 | 41273 | 13758 | 16509 | 20636 |
Water Pressure Drop | Kpa | ≤45 | ≤48 | ≤50 | ≤38 | ≤40 | ≤42 |
Net Weight | kg | 482 | 582 | 710 | 250 | 286 | 325 |
Gross Weight | kg | 506 | 611 | 745 | 268 | 306 | 345 |
Noise | db | 75 | 78 | 79 | 65 | 66 | 68 |
Waterproof Classification | | IPX4 | |||||
Electric Shock Proof Grade | | I | |||||
Pipe Size (Internal Thread) | mm | 75 | 90 | 90 | 63 | 63 | 75 |
Dimension | mm | 1850*1000*1950 | 2000*1100*2080 | 2200*1100*2080 | 1450*740*1150 | 1580*855*1200 | 1580*855*1200 |
Packing Dimension | mm | 1940*1120*2180 | 2090*1200*2260 | 2290*1200*2260 | 1540820*1320 | 1700*950*1470 | 1700950*1470 |
Compressor Model/Quantity | | ZW54KWP*2 | VR144KSE*2 | ZW108KAE*3 | | | |
It is easy to install SPRSUN swimming pool heat pump as shown by the following diagram:
We care every detail on what you need!
Super Low Noise: Fitted cut clothes for compressor and strong pads to avoid vibration
Anti-corrosion: Aluminum edging
Exellent Welding Guarantee No Leakage: Four-way valve welding protection
Energy Saving: 30mm thickness for insulation to prevent energy lost
User-friendly Design: Ram design using machine wire
Reliability of the Connection: Adopt automatic stamping machine from Taiwan
Related models are as below:
Our experienced engineering team provides good support for any questions concerning the products and installation before, during and after products are sold.
Before Selling
Set up customers file and arrange professional sales engineers to introduce company products and services to customers in details.
If customers are interested in our products, we will send professional technicians to survey the installation environment.
Provide solutions according to different customers' requirements.
During Selling
Machine installed and tested by QA engineers.
Ensure all the products we provide are qualified and new. The working life of the main engine is 15 years.
Construct and install the heat pump according to national relevant policies strictly and ensure high quality delivery on time.
Test and debug the equipments strictly to ensure the safety and stability.
During the delivery, provide comprehensive and professional technical training on instructions and maintenance to customers.
After Selling
We promise to offer free consulting call in 7×24 hours mode to solve the problems found in practice. The number is 86-20-82181867.
Sprsun offers 18-month long warranty. Within 18 months since the delivery date, if the product has any failure under normal usage, Sprsun will provide free assembly parts.
After the expiration of the warranty period, we will continue to provide lifelong maintenance services, with just a small amount of charges.
