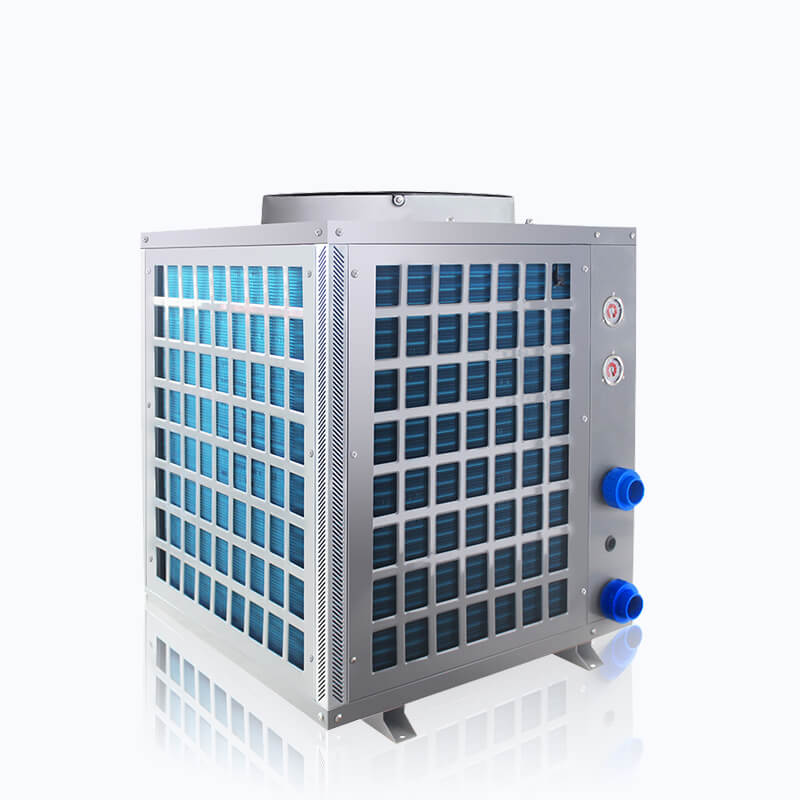

9.5KW to 24.5KW Monoblock Top Discharge Air Source Heat Pump Hot Water Heater

1. High COP: 4.12/4.13/4.14/4.15

2. Max Water Temp: 60℃

3. Power Supply: 220V-415V

4. Running temp: -10℃~45℃

5. Heating Capacity: 9.5KW to 24.5KW
Quantity:
  • CGK/D-9 CGK/D-12 CGK/D-18 CGK/D-22
  • SPRSUN

Heat Pump Features

Cheap Air Source Heat Pump Water Heaters



SPRSUN air source heat pump water heaters are designed for domestic hot water heating with max outlet water temperature 60℃. They have the following important features:



  • Heating mode, mono-block type;

  • COP up to 4.15;

  • Running temprature range: -10℃ to 45℃;

  • Max outlet water temperature can reach 60℃;

  • Electric heater backup function;

  • Multiple protections;

  • Refrigerant: R410A

Important Features of Low Cost Air Source Heat Pump Water Heaters





Heat Pump Specifications



  • Rated working condition: dry-bulb temp: 20℃, wet-bulb temp: 15℃, cool water temp: 15℃, hot water temp: 55℃.



Model
CGK/D-9 CGK/D-12 CGK/D-18
Power Supply V 220V~240V/50Hz/1ph
Refrigerant
R410A
Heating Capacity KW 9.5 13.8 17.5
Input Power KW

2.29

3.35

4.23
COP
4.15 4.12 4.14
Rated Current A 11.6 16.9 21.3
Max Current A 15.6 22.8 28.8
Max Input Power KW 3.2 4.7 5.9
Fan Motor Power W 90 90 250
Fan Motor Quantity Piece 1 1 1
Condenser
Tube in shell heat exchanger
Water Flow L/h 1815 2637 3344
Water Rate L/h 204 297 376
Water Pressure Drop Kpa ≤30 ≤35 ≤40
Net Weight kg 95 100 140
Gross Weight kg 101 106 150
Noise db 52 52 57
Waterproof Classification
IPX4
Electric Shock Proof Grade
Pipe Size (Internal Thread) mm 25 25 25
Dimension mm 710*710*925 710*710*925 810*810*1055
Packing Dimension mm 780*780*1075 780*780*1075 890*890*1205
Compressor Model/Quantity
ZW28KWP*1 ZW42KWP*1 ZW51KWP*1
Model
CGK/D-12 CGK/D-18 CGK/D-22
Power Supply V 380V~415V/50Hz/3ph
Refrigerant
R410A
Heating Capacity KW 13.8 18.5 24.5
Input Power KW 3.35 4.48 5.95
COP
4.12 4.13 4.12
Rated Current A 6.4 8.5 11.3
Max Current A 8.6 11.5 15.2
Max Input Power KW 4.7 6.3 8.3
Fan Motor Power W 90 250 250
Fan Motor Quantity Piece 1 1 1
Condenser
Tube in shell heat exchanger
Water Flow L/h 2637 3535 4681
Water Rate L/h 297 398 527
Water Pressure Drop Kpa ≤35 ≤45 ≤50
Net Weight kg 100 140 148
Gross Weight kg 106 150 158
Noise db 52 57 58
Waterproof Classification
IPX4
Electric Shock Proof Grade
Pipe Size (Internal Thread) mm 25 25 25
Dimension mm 710*710*925 810*810*1055 810*810*1055
Packing Dimension mm 780*780*1075 890*890*1205 890*890*1205
Compressor Model/Quantity
ZW42KWP*1 ZW54KWP*1 ZW72KWP*1





Heat Pump Components



Our low cost air source heat pump water heaters use high quality components such as Copeland scroll compressor, Emerson thermal expansion valve, SANHUA 4-way valve, etc.

Components of Air Source Heat Pumps





Heat Pump Installation Diagram



It is easy to install SPRSUN air source heat pump water heaters as below:

Air Source Heat Pump Installation





Heat Pump COP



SPRSUN air source heat pump cop at different working conditions:

Air Temp ℃

COP ( Outlet temp. W45)
-7 2.33
0 2.69
2

2.89

5 3.11
7 3.38
12 3.75
20 4.17
30 4.59





Heat Pump Workmanship





We care every detail on what you need!



Super Low Noise: Fitted cut clothes for compressor and strong pads to avoid vibration

Anti-corrosion: Aluminum edging

Exellent Welding Guarantee No Leakage: Four-way valve welding protection



energy saving air source heat pumps





Energy Saving: 30mm thickness for insulation to prevent energy lost

User-friendly Design: Ram design using machine wire

Reliability of the Connection: Adopt automatic stamping machine from Taiwan



low noise air source heat pumps





Heat Pump Economic Analysis



Energy Saving Up to 75%: Compared with solar water heaters, gas water heaters and electric water weaters, the energy cost saved by SPRSUN air source heat pump water heaters is shocking.



Item

SPRSUN

Heat Pump

Solar

Water Heater

         Gas Water Heater Electric Water Heater
Heat source electicity solar+electricity natural gas liquefield gas electricity
Heat Value 860kcal/kw/h 860kcal/kw/h 9000kcal/m⊃3; 1080kcal/kg 860kcal/kw/h
Efficiency 450%

1/3 time use of

electric heater

90% 85% 90%

Energy consumption

per day

2.07kw/h 3.45kw/h 0.99m⊃3; 0.87kg 10.34kw/h
Cost $0.11/kw.h $0.11/kw.h $0.42/m⊃3; $1.1/kg $0.11/kw.h
Cost per day $0.23 $0.38 $0.42 $0.96 $1.14
Annual cost $84 $139 $153 $350 $416




Heat Pump Models



Related models are as below:

Air Source Heat Pump Water Heater Models





Technical Support





Our experienced engineering team provides good support for any questions concerning the products and installation before, during and after products are sold.



Before Selling

  • Set up customers file and arrange professional sales engineers to introduce company products and services to customers in details.

  • If customers are interested in our products, we will send professional technicians to survey the installation environment.

  • Provide solutions according to different customers' requirements.



During Selling

  • Machine installed and tested by QA engineers.

  • Ensure all the products we provide are qualified and new. The working life of the main engine is 15 years.

  • Construct and install the heat pump according to national relevant policies strictly and ensure high quality delivery on time.

  • Test and debug the equipments strictly to ensure the safety and stability.

  • During the delivery, provide comprehensive and professional technical training on instructions and maintenance to customers.



After Selling

  • We promise to offer free consulting call in 7×24 hours mode to solve the problems found in practice. The number is 86-20-82181867.

  • Sprsun offers 18-month long warranty. Within 18 months since the delivery date, if the product has any failure under normal usage, Sprsun will provide free assembly parts.

  • After the expiration of the warranty period, we will continue to provide lifelong maintenance services, with just a small amount of charges.
