CGK020V4P-B; CGK030V4P-B; CGK040V4P-B; CGK-030V4P-B; CGK-040V4P-B; CGK-050V4P-B
SPRSUN

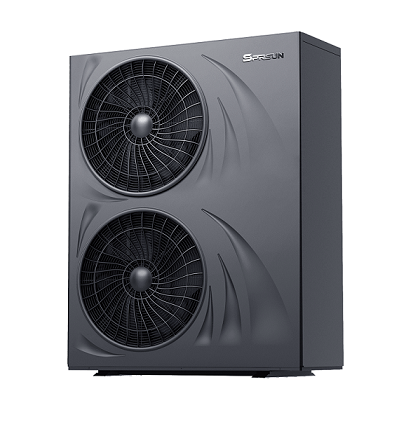

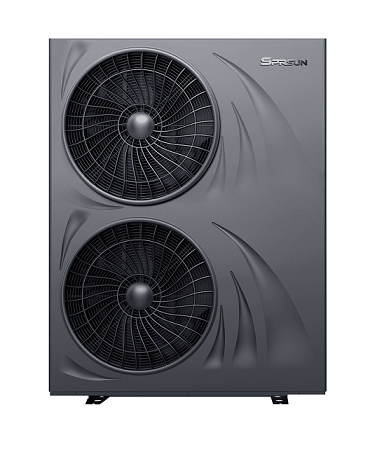

SPRSUN's latest innovation, the R290 ultra-quiet DC inverter air source heat pump, fulfills users' needs for efficient heating, cooling, and domestic hot water all in one unit. It features an innovative "Silent Compartment" design, allowing its operating noise level to be as low as 40dB(A), and even quieter at night! This series of heat pumps uses full inverter compressors, enabling efficient heating and providing users with a quiet and comfortable home experience. Additionally, they support WiFi remote control and SG-ready functionality. This means you can control your home's temperature and hot water with your phone anytime, anywhere. With the SG-ready function, the unit can communicate with the power grid to reduce household electricity consumption during peak periods and save on electricity bills.
The Specification of R290 ultra-quiet DC inverter air source heat pump
| Model | CGK020V4P-B | CGK030V4P-B | CGK040V4P-B | CGK-030V4P-B | CGK-040V4P-B | CGK-050V4P-B | ||||||||||||||
| Power Supply / Refrigerant | V/Hz/Ph | 220-240/50/1 | 220-240/50/1 | 220-240/50/1 | 380-420/50/3 | 220-240/50/1 | 380-420/50/3 | |||||||||||||
| Max. Heating Capacity (A7℃/W35℃) | kW | 6.1 | 9.1 | 12 | 9.1 | 12 | 15.2 | |||||||||||||
| C.O.P (A7℃/W35℃) | W/W | 4.4 | 4.2 | 3.9 | 4.2 | 3.9 | 3.9 | |||||||||||||
| Heating Capacity Min./Max.(A7℃/W35℃) | kW | 2.20 | / | 6.10 | 3.15 | / | 9.10 | 4.35 | / | 12.00 | 3.15 | / | 9.10 | 4.35 | / | 12.00 | 5.60 | / | 15.20 | |
| Heating Power Input Min./Max.(A7℃/W35℃) | W | 441 | / | 1386 | 626 | / | 2167 | 885 | / | 3073 | 626 | / | 2167 | 885 | / | 3073 | 1125 | / | 3900 | |
| C.O.P Min./Max.(A7℃/W35℃) | W/W | 4.4 | / | 4.99 | 4.2 | / | 5.03 | 3.90 | / | 4.92 | 4.2 | / | 5.03 | 3.90 | / | 4.92 | 3.90 | / | 4.98 | |
| Max. Heating Capacity(A7℃/W45℃) | kW | 6.30 | 8.60 | 11.2 | 8.60 | 11.2 | 14.5 | |||||||||||||
| C.O.P (A7℃/W45℃) | W/W | 3.60 | 3.52 | 3.28 | 3.52 | 3.28 | 3.23 | |||||||||||||
| Heating Capacity Min./Max.(A7℃/W45℃) | kW | 2.01 | / | 6.30 | 2.90 | / | 8.60 | 4.00 | / | 11.20 | 2.90 | / | 8.60 | 4.00 | / | 11.20 | 5.40 | / | 14.50 | |
| Heating power input Min./Max.(A7℃/W45℃) | W | 522 | / | 1750 | 757 | / | 2443 | 1071 | / | 3415 | 757 | / | 2443 | 1071 | / | 3415 | 1427 | / | 4489 | |
| C.O.P Min./Max.(A7℃/W45℃) | W/W | 3.60 | / | 3.85 | 3.52 | / | 3.83 | 3.28 | / | 3.74 | 3.52 | / | 3.83 | 3.28 | / | 3.74 | 3.23 | / | 3.78 | |
| Max. Cooling Capacity(A35℃/W18℃) | kW | 5.70 | 7.04 | 10.0 | 7.04 | 10.0 | 13.6 | |||||||||||||
| E.E.R (A35℃/W18℃) | W/W | 3.48 | 3.43 | 3.40 | 3.43 | 3.40 | 3.28 | |||||||||||||
| Cooling Capacity Min./Max.(A35℃/W18℃) | kW | 1.82 | / | 5.70 | 2.64 | / | 7.04 | 3.81 | / | 10.00 | 2.64 | / | 7.04 | 3.81 | / | 10.00 | 5.20 | / | 13.60 | |
| Cooling Power Input Min./Max.(A35℃/W18℃) | W | 463 | / | 1638 | 677 | / | 2052 | 1003 | / | 2941 | 677 | / | 2052 | 1003 | / | 2941 | 1402 | / | 4146 | |
| E.E.R Min./Max.(A35℃/W18℃) | W/W | 3.48 | / | 3.93 | 3.43 | / | 3.90 | 3.40 | / | 3.80 | 3.43 | / | 3.90 | 3.40 | / | 3.80 | 3.28 | / | 3.71 | |
| Max. Cooling Capacity(A35℃/W7℃) | kW | 4.45 | 5.63 | 7.2 | 5.63 | 7.2 | 10.2 | |||||||||||||
| E.E.R(A35℃/W7℃) | W/W | 2.87 | 2.66 | 2.62 | 2.66 | 2.62 | 2.60 | |||||||||||||
| Cooling Capacity Min./Max.(A35℃/W7℃) | kW | 1.53 | / | 4.45 | 2.10 | / | 5.63 | 3.58 | / | 7.20 | 2.10 | / | 5.63 | 3.58 | / | 7.20 | 4.52 | / | 10.20 | |
| Cooling Power Input Min./Max.(A35℃/W7℃) | W | 443 | / | 1551 | 612 | / | 2117 | 1213 | / | 2748 | 612 | / | 2117 | 1213 | / | 2748 | 1520 | / | 3923 | |
| E.E.R Min./Max.(A35℃/W7℃) | W/W | 2.87 | / | 3.45 | 2.66 | / | 3.43 | 2.62 | / | 2.95 | 2.66 | / | 3.43 | 2.62 | / | 2.95 | 2.60 | / | 2.97 | |
| Max Power Input | kW | 3.00 | 4.00 | 5.00 | 4.00 | 5.00 | 6.30 | |||||||||||||
| Max Current | A | 14.35 | 19.14 | 23.92 | 8.44 | 10.55 | 13.29 | |||||||||||||
| Wire diameter | mm² | 4.0 | 4.0 | 6.0 | 2.5 | 2.5 | 4.0 | |||||||||||||
| Fuse or circuitbreakerer | A | 20A | 25A | 32A | 13A | 16A | 20A | |||||||||||||
| Compressor Type - Quantity/System | Brand | HIGHLY | HIGHLY | HIGHLY | HIGHLY | HIGHLY | HIGHLY | |||||||||||||
| Refrigerant / Suggested Input | Kg | R290/0.50 | R290/0.75 | R290/0.90 | R290/0.75 | R290/0.90 | R290/1.20 | |||||||||||||
| Fan | Type | / | DC | DC | DC | DC | DC | DC | ||||||||||||
| Quantity | / | 1 | 1 | 1 | 1 | 1 | 2 | |||||||||||||
| Airflow | m3/h | 2500 | 3000 | 3500 | 3000 | 3500 | 5000 | |||||||||||||
| Rated Fan Speed | RPM | 900 | 900 | 900 | 900 | 900 | 900 | |||||||||||||
| Rated power | W | 116 | 116 | 116 | 116 | 116 | 116*2 | |||||||||||||
| Water Side Heat Exchanger | Type | / | Plate Heat Exchanger | Plate Heat Exchanger | Plate Heat Exchanger | Plate Heat Exchanger | Plate Heat Exchanger | Plate Heat Exchanger | ||||||||||||
| Water Pressure Drop | kPa | 18 | 20 | 23 | 20 | 23 | 25 | |||||||||||||
| Piping Connection | Inch | G1" | G1" | G1" | G1" | G1" | G1" | |||||||||||||
| Pump model | / | APM25-9-130SPWM1 | APM25-9-130SPWM1 | APM25-9-130SPWM1 | APM25-9-130SPWM1 | APM25-9-130SPWM1 | APF25-12-130E FPWM1 | |||||||||||||
| Max Water Pump Head | m | 9 | 9 | 9 | 9 | 9 | 12 | |||||||||||||
| Allowable Water Flow | Min./Rated./Max. | L/S | 0.18 | 0.29 | 0.49 | 0.27 | 0.43 | 0.72 | 0.36 | 0.57 | 0.96 | 0.27 | 0.43 | 0.72 | 0.36 | 0.57 | 0.96 | 0.45 | 0.73 | 1.21 |
| Noise Level (Power Power) | dB(A) | 53 | 55 | 58 | 54 | 57 | 60 | |||||||||||||
| Moisture Resistance | / | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | |||||||||||||
| Net Dimension(L×D×H) | mm | 1053*475*755 | 1110*475*810 | 1110*475*960 | 1110*475*810 | 1110*475*960 | 1110*475*1355 | |||||||||||||
| Carton packing Dimension(L×D×H) | mm | 1115*505*910 | 1165*505*960 | 1165*505*1100 | 1165*505*960 | 1165*505*1100 | 1165*505*1520 | |||||||||||||
| Splint packing Dimension(L×D×H) | mm | 1150*530*920 | 1200*530*970 | 1200*530*1120 | 1220*530*970 | 1200*530*1120 | 1200*530*1510 | |||||||||||||
| Net Weight | kg | 90 | 106 | 120 | 106 | 120 | 151 | |||||||||||||
| Carton gross Weight | kg | 102 | 119 | 133 | 119 | 133 | 166 | |||||||||||||
| Splint gross Weight | kg | 122 | 142 | 156 | 142 | 156 | 188 | |||||||||||||
| Container Loading Capacity (20/40HQ) | number | 44 | / | 96 | 44 | / | 92 | 44 | / | 92 | 44 | / | 92 | 44 | / | 92 | 22 | / | 48 | |
| Operation Ambint Temp.(℃) | -25~45 | |||||||||||||||||||
| Operation water Temp.(℃) | 10~70(DHW) | |||||||||||||||||||
| Operation water Temp.(℃) | 10~70(Heating) | |||||||||||||||||||
| Operation water Temp.(℃) | 12~30(Cooling) | |||||||||||||||||||
| Note: (1) Heating condition: water inlet/outlet temperature: 30℃/35℃, Ambient temperature: DB 7℃/WB 6℃; | ||||||||||||||||||||
| (2) Heating condition: water inlet/outlet temperature: 40℃/45℃, Ambient temperature: DB 7℃/WB 6℃; | ||||||||||||||||||||
| (3) Cooling condition: water inlet/outlet temperature: 23℃/18℃, Ambient temperature: DB35℃/WB24℃; | ||||||||||||||||||||
| (4) Cooling condition: water inlet/outlet temperature: 12℃/7℃, Ambient temperature: DB35℃/WB24℃; | ||||||||||||||||||||
