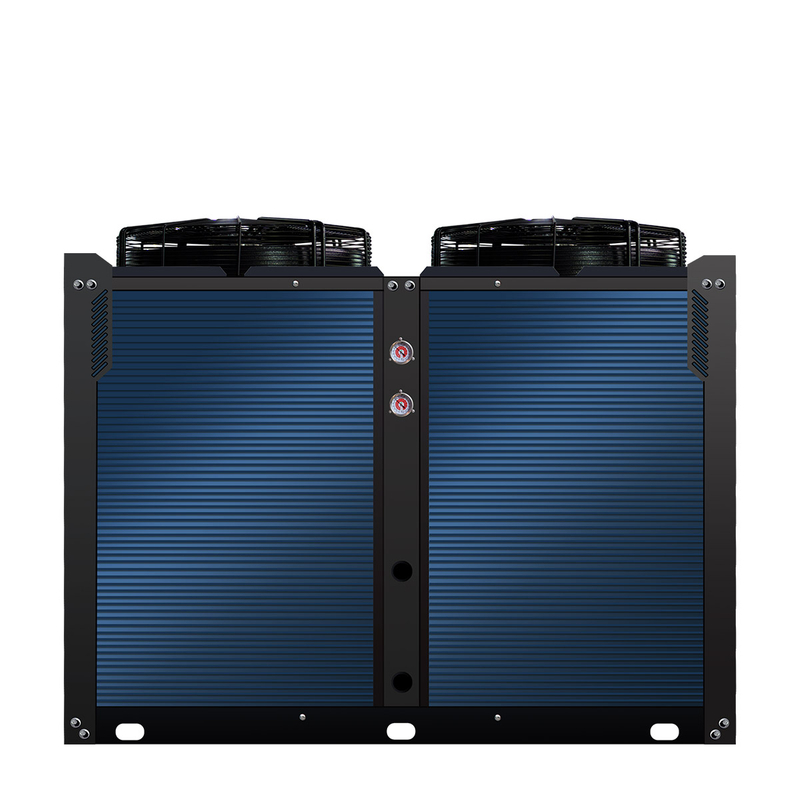

Combo Series - 36KW-115KW Commercial Heat Pump Water Heater

1. High Cop: 4.15
2. Max Water Temp: 60℃
3. Power Supply: 220V-415V
3. Heating Capacity: 36KW-115KW
SKU:
Availability:
Quantity:
  • CGK/D-36; CGK/D-42; CGK/D-52; CGK/D-72; CGK/D-95; CGK/D-120

  • SPRSUN

Model
CGK/D-36 CGK/D-42 CGK/D-52 CGK/D-72 CGK/D-95 CGK/D-120
Power supply V 380V~415V/50Hz/3ph
Heating capacity KW 36 42 52 72 92 115
Input power KW 8.67 10.12 12.53 17.35 22.17 28.91
COP
4.15 4.15 4.15 4.15 4.15 3.98
Rated current A 16.5 19.2 23.8 33 42.1 54.9
Max current A 22.2 25.9 32.1 44.5 56.8 74.1
Max input power KW 11.7 13.7 16.9 23.4 29.9 39
Fan motor power W 250 250 550 800 1150 1250
Fan motor quantity Piece 2 2 2 2 2 2
Water flow L/h 6879 8025 9936 13758 17579 21974
Water rate L/h 774 903 1118 1548 1978 2472
Water pressure drop Kpa ≤65 ≤67 ≤70 ≤72 ≤75 ≤85
Net weight kg 250 270 300 482 582 582
Gross weight kg 268 288 320 506 611 611
Noise db 65 66 68 72 75 76
Condenser Tube in shell heat exchanger/Double pipe exchanger
Refrigerant R410A
Classification of   waterproof IPX4
Electric shock   proof grade I
Pipe size (internalmmthread) mm DN40 DN40 DN40 DN50 DN65 DN65
Dimension mm 1500*800*
    1150
1500*800*
    1150
1500*800*
    1150
2100*1100* 1250 2100*1100* 1250 2100*1100* 1250
Packing Dimension(L×D×H) mm 1580*880*13
    00
1580*880*13
    00
1580*880*13
    00
2180*1180*14
    10
2180*1180*14
    10
2180*1180*14
    10


Technical Support





Our experienced engineering team provides good support for any questions concerning the products and installation before, during and after products are sold.



Before Selling

  • Set up customers file and arrange professional sales engineers to introduce company products and services to customers in details.

  • If customers are interested in our products, we will send professional technicians to survey the installation environment.

  • Provide solutions according to different customers' requirements.



During Selling

  • Machine installed and tested by QA engineers.

  • Ensure all the products we provide are qualified and new. The working life of the main engine is 15 years.

  • Construct and install the heat pump according to national relevant policies strictly and ensure high quality delivery on time.

  • Test and debug the equipments strictly to ensure the safety and stability.

  • During the delivery, provide comprehensive and professional technical training on instructions and maintenance to customers.



After Selling

  • We promise to offer free consulting call in 7×24 hours mode to solve the problems found in practice. The number is 86-20-82181867.

  • Sprsun offers 18-month long warranty. Within 18 months since the delivery date, if the product has any failure under normal usage, Sprsun will provide free assembly parts.

  • After the expiration of the warranty period, we will continue to provide lifelong maintenance services, with just a small amount of charges.
