10KW-26KW Monoblock Air Source Swimming Pool Heat pump for Water Heating and Cooling

1. High Cop: 5.10/5.11/5.12

2. Max Water Temp: 40℃

3. Power Supply: 220V-415V

4. Running temp: -10℃~45℃

5. Heating Capacity: 10KW/15KW/18.5KW/20KW/26KW

6. Cooling Capacity: 6.5KW/9.75KW/12.03KW/13KW/16.90KW
Quantity:
  • CGY/D-9(HC) CGY/D-12(HC) CGY/D-18(HC) CGY/D-22(HC)

  • SPRSUN

Features of Heat Pumps

Swimming Pool Heat Pumps for Water Heating and Cooling



SPRSUN monoblock air source swimming pool heat pumps are designed for pool water heating and cooling with max outlet water temperature 40℃. They have the following important features:



  • Water heating and cooling mono-block type;

  • Constant pool water temperature (max 40℃);

  • Working air temperature range: -10℃ to 45℃;

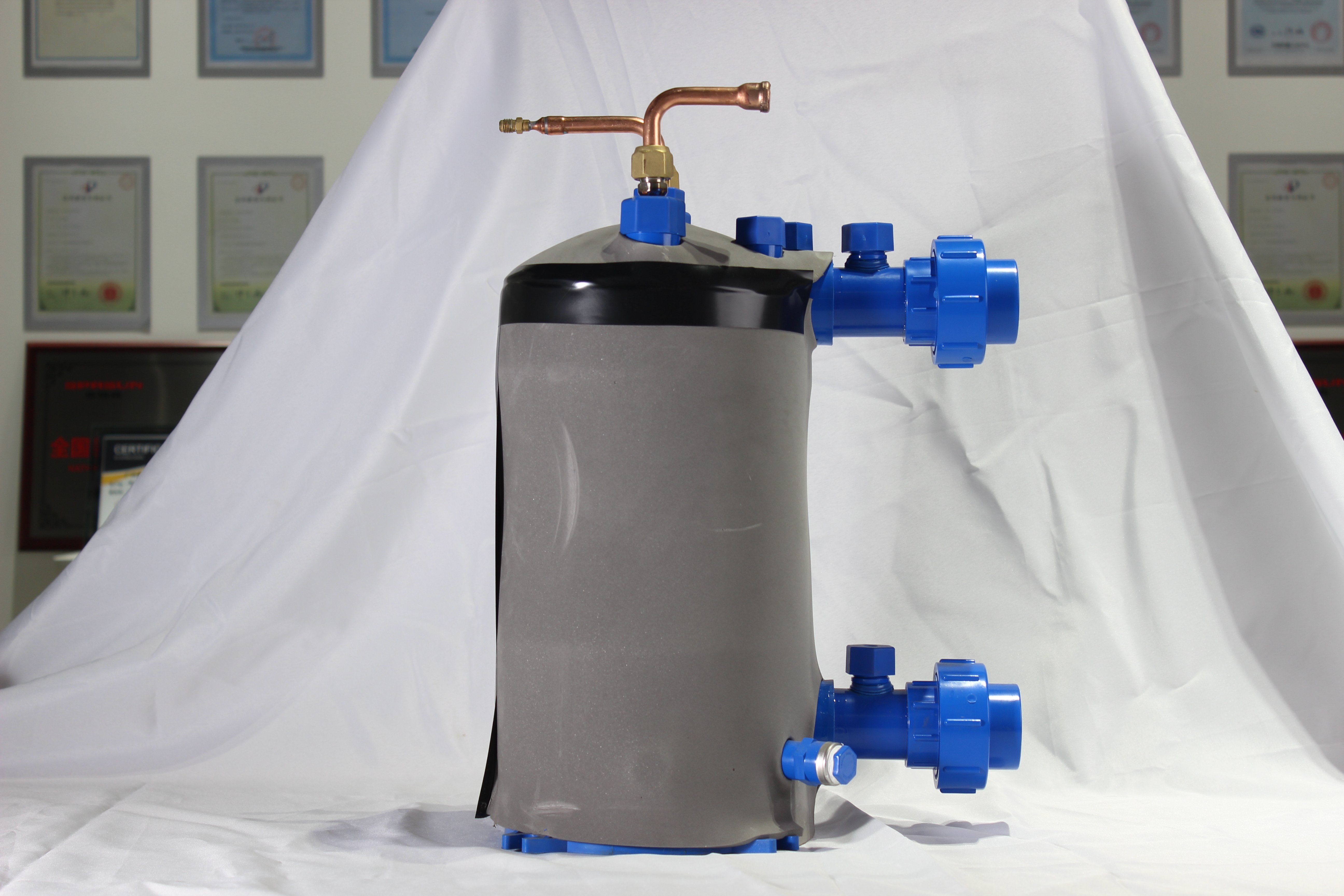

  • Anti-corrosion with Titanium Tube-in-shell Heat Exchanger;

  • Automatic and forced defrosting function;

  • Multiple protections with timer function





Heat Pump Specifications



  • Rated working condition: dry-bulb temp: 24℃, wet-bulb temp: 16℃, cool water temp: 27℃, hot water temp: 29℃.



Model
CGY/D-9 CGY/D-12 CGY/D-18
Power Supply V 220V~240V/50Hz/1ph
Refrigerant
R410A
Heating Capacity(A24/W28) KW 10 15 18.5
Input Power of Heating KW 1.95 2.94 3.61
COP
5.12 5.11 5.12
Cooling Capacity(A35/W28) KW 6.50 9.75 12.03
Input Power of Cooling KW 2.12 3.18 3.91
EER
3.07 3.07 3.07
Rated Current A 9.3 14.0 17.3
Max Current A 13.1 19.7 24.2
Max Input Power KW 2.7 4.1 5.1
Fan Motor Power W 90 90 90
Fan Motor Quantity Piece 1 1 1
Condenser
Titanium Tube-in-shell Heat Exchanger
Water Flow L/h 3439 5159 6363
Water Pressure Drop Kpa ≤20 ≤23 ≤25
Net Weight kg 95 100 140
Gross Weight kg 101 106 150
Noise db 54 54 58
Waterproof Classification
IPX4
Electric Shock Proof Grade
I
Pipe Size (Internal Thread) mm 50 50 50
Dimension mm 710*710*925 710*710*925 810*810*1055
Packing Dimension mm 780*780*1075 780*780*1075 890*890*1205
Compressor Model/Quantity
ZW28KWP*1 ZW42KWP*1 ZW51KWP*1
Model
CGY/D-12 CGY/D-18 CGY/D-22
Power Supply V 380V~415V/50Hz/3ph
Refrigerant
R410A
Heating Capacity(A24/W28) KW 15.0 20.0 26.0
Input Power of Heating KW 2.93 3.91 5.10
COP
5.12 5.11 5.10
Cooling Capacity(A35/W28) KW 9.75 13.0 16.90
Input Power of Cooling KW 3.17 4.24 5.52
EER
3.07 3.07 3.06
Rated Current A 5.6 7.4 9.7
Max Current A 7.8 10.4 13.6
Max Input Power KW 4.1 5.5 7.1
Fan Motor Power W 90 90 90
Fan Motor Quantity Piece 1 1 1
Condenser
Titanium Tube-in-shell Heat Exchanger
Water Flow L/h 5159 6879 8942
Water Pressure Drop Kpa ≤28 ≤35 ≤36
Net Weight kg 100 140 148
Gross Weight kg 106 150 158
Noise db 54 58 58
Waterproof Classification
IPX4
Electric Shock Proof Grade
I
Pipe Size (Internal Thread) mm 50 50 50
Dimension mm 710*710*925 810*810*1055 810*810*1055
Packing Dimension mm 780*780*1075 890*890*1205 890*890*1205
Compressor Model/Quantity
ZW42KWP*1 ZW54KWP*1 ZW72KWP*1





components of heat pumps



Our air source swimming pool heat pumps use high quality components such as Copeland scroll compressor, Danfoss electronic expansion valve, SANHUA 4-way valve, etc.

Materials of Swimming Pool Heat Pumps for Water Heating and Cooling



installing heat pumps



It is easy to install SPRSUN air source swimming pool heat pump as below:



Air Source Pool Heat Pump Installation





COP of heat pumps



SPRSUN air source swimming pool heat pump cop at different working conditions:



Air Temp ℃                                                 Water Temp ℃

W28
-7 3.40
0 4.30
2 4.40
5 4.49
7 4.57
10 4.71
12 4.80
15 4.93
20 5.02
24 5.15





workmanship of heat pumps





We care every detail on what you need!



Super Low Noise: Fitted cut clothes for compressor and strong pads to avoid vibration

Anti-corrosion: Aluminum edging

Exellent Welding Guarantee No Leakage: Four-way valve welding protection



energy saving heat pumps





Energy Saving: 30mm thickness for insulation to prevent energy lost

User-friendly Design: Ram design using machine wire

Reliability of the Connection: Adopt automatic stamping machine from Taiwan



low noise heat pumps





economic analysis of heat pumps



Energy Saving Up to 75%: Compared with solar water heaters, gas water heaters and electric water weaters, the energy cost saved by SPRSUN air source heat pump water heaters is shocking.



Item SPRSUN Heat Pump Solar Water Heater          Gas Water Heater Electric Water Heater
Heat source electicity solar+electricity natural gas liquefield gas electricity
Heat Value 860kcal/kw/h 860kcal/kw/h 9000kcal/m⊃3; 1080kcal/kg 860kcal/kw/h
Efficiency 450% 1/3 time use of electric heater 90% 85% 90%
Energy consumption per day 2.07kw/h 3.45kw/h 0.99m⊃3; 0.87kg 10.34kw/h
Cost $0.11/kw.h $0.11/kw.h $0.42/m⊃3; $1.1/kg $0.11/kw.h
Cost per day $0.23 $0.38 $0.42 $0.96 $1.14
Annual cost $84 $139 $153 $350 $416

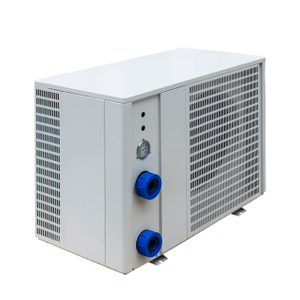

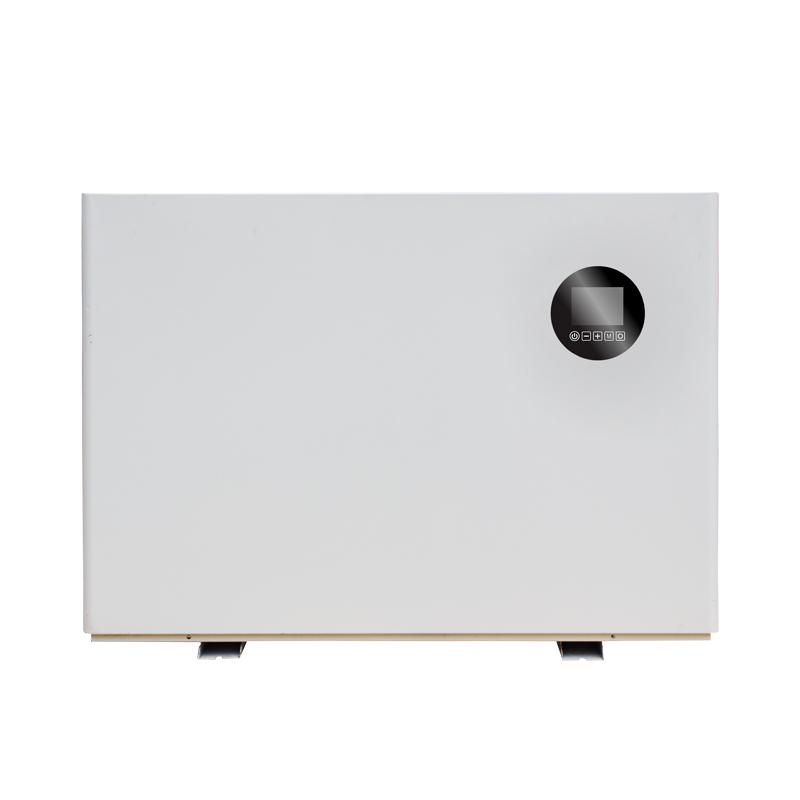

Heat Pump Models



Related models are as below:

Swimming Pool Heat Pump Models



Technical Support





Our experienced engineering team provides good support for any questions concerning the products and installation before, during and after products are sold.



Before Selling

  • Set up customers file and arrange professional sales engineers to introduce company products and services to customers in details.

  • If customers are interested in our products, we will send professional technicians to survey the installation environment.

  • Provide solutions according to different customers' requirements.



During Selling

  • Machine installed and tested by QA engineers.

  • Ensure all the products we provide are qualified and new. The working life of the main engine is 15 years.

  • Construct and install the heat pump according to national relevant policies strictly and ensure high quality delivery on time.

  • Test and debug the equipments strictly to ensure the safety and stability.

  • During the delivery, provide comprehensive and professional technical training on instructions and maintenance to customers.



After Selling

  • We promise to offer free consulting call in 7×24 hours mode to solve the problems found in practice. The number is 86-20-82181867.

  • Sprsun offers 18-month long warranty. Within 18 months since the delivery date, if the product has any failure under normal usage, Sprsun will provide free assembly parts.

  • After the expiration of the warranty period, we will continue to provide lifelong maintenance services, with just a small amount of charges.
