CGY025V3-C; CGY035V3-C; CGY050V3-C; CGY-050V3-C; CGY-080V3-C
SPRSUN
| Model | CGY025V3-C | CGY035V3-C | CGY050V3-C | CGY-050V3-C | CGY-080V3-C | ||||||||||||
| Advised Pool Volume | m3 | 25-40 | 40-80 | 50-100 | 50-100 | 80-140 | |||||||||||
| Power Supply | V/Hz/Ph | 220-240/50/1 | 220-240/50/1 | 220-240/50/1 | 380-420/50/3 | 380-420/50/3 | |||||||||||
| Refrigerant | R32 | R32 | R32 | R32 | R32 | ||||||||||||
| Max. Heating Capacity (1) | kW | 10.5 | 17 | 28 | 28 | 39 | |||||||||||
| C.O.P (1) | W/W | 7.12 | 7.15 | 7.08 | 7.11 | 7.1 | |||||||||||
| Heating Capacity Min./Max.(1) | kW | 1.68 | / | 10.5 | 2.72 | / | 17 | 4.48 | / | 28 | 4.48 | / | 28 | 6.24 | / | 39 | |
| Heating Power Input Min./Max.(1) | W | 93 | / | 1475 | 149 | / | 2378 | 248 | / | 3955 | 247 | / | 3938 | 345 | / | 5493 | |
| C.O.P Min./Max.(1) | W/W | 7.12 | / | 18.16 | 7.15 | / | 18.23 | 7.08 | / | 18.05 | 7.11 | / | 18.13 | 7.1 | / | 18.11 | |
| Max. Heating Capacity(2) | kW | 7.6 | 12.2 | 20.2 | 20.2 | 28.1 | |||||||||||
| C.O.P (2) | W/W | 4.95 | 4.97 | 4.92 | 4.94 | 4.93 | |||||||||||
| Heating Capacity Min./Max.(2) | kW | 1.36 | / | 7.56 | 2.20 | / | 12.24 | 3.63 | / | 20.16 | 3.63 | / | 20.16 | 5.05 | / | 28.08 | |
| Heating power input Min./Max.(2) | W | 167 | / | 1528 | 269 | / | 2463 | 447 | / | 4097 | 445 | / | 4080 | 620 | / | 5691 | |
| C.O.P Min./Max.(2) | W/W | 4.95 | / | 8.17 | 4.97 | / | 8.20 | 4.92 | / | 8.12 | 4.94 | / | 8.16 | 4.93 | / | 8.15 | |
| Max. Cooling Capacity(3) | kW | 5.8 | 9.4 | 15.4 | 15.4 | 21.5 | |||||||||||
| E.E.R (3) | W/W | 3.22 | 3.23 | 3.20 | 3.21 | 3.21 | |||||||||||
| Cooling Capacity Min./Max.(3) | kW | 2.66 | / | 5.78 | 4.30 | / | 9.35 | 7.08 | / | 15.40 | 7.08 | / | 15.40 | 9.87 | / | 21.45 | |
| Cooling Power Input Min./Max.(3) | W | 551 | / | 1795 | 888 | / | 2895 | 1477 | / | 4815 | 1470 | / | 4795 | 2051 | / | 6688 | |
| E.E.R Min./Max.(3) | W/W | 3.22 | / | 4.82 | 3.23 | / | 4.85 | 3.20 | / | 4.80 | 3.21 | / | 4.82 | 3.21 | / | 4.81 | |
| Rated Current | A | 7.1 | 11.4 | 18.9 | 8.3 | 11.6 | |||||||||||
| Max Current | A | 10.2 | 16.5 | 27.44 | 12.05 | 16.81 | |||||||||||
| Max Power Input | kW | 2.09 | 3.38 | 5.62 | 5.59 | 7.80 | |||||||||||

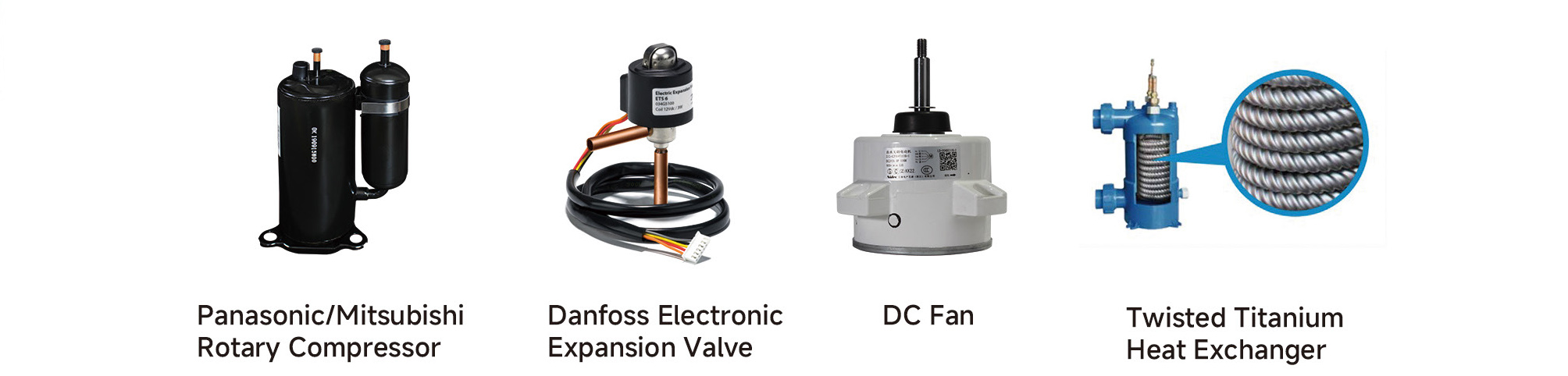

| Compressor | Type - Quantity/System | Twin Rotary - 1 | Twin Rotary - 1 | Twin Rotary - 1 | Twin Rotary - 1 | Twin Rotary - 1 | |||||||||||
| Fan | Quantity | 1 | 1 | 1 | 1 | 2 | |||||||||||
| Airflow | m3/h | 2000 | 2800 | 4000 | 4000 | 6000 | |||||||||||
| Rated power | W | 40 | 80 | 200 | 200 | 250 | |||||||||||
| Water Side Heat Exchanger | Type | Titanium Tube in PVC | Titanium Tube in PVC | Titanium Tube in PVC | Titanium Tube in PVC | Titanium Tube in PVC | |||||||||||
| Water Pressure Drop | kPa | 9.5 | 11 | 20 | 20 | 25 | |||||||||||
| Piping Connection | mm | φ50 | φ50 | φ50 | φ50 | φ50 | |||||||||||
| Allowable Water Flow | Min./Rated./Max | L/S | 0.63 | 1.00 | 1.25 | 1.02 | 1.62 | 2.03 | 1.67 | 2.68 | 3.34 | 1.67 | 2.68 | 3.34 | 2.33 | 3.73 | 4.66 |
| Noise Level | dB(A) | 45 | 52 | 58 | 58 | 62 | |||||||||||
| Net Dimension(L×D×H) | mm | 930*380*670 | 1090*510*820 | 1090*510*1000 | 1090*510*1000 | 1090*550*1100 | |||||||||||
| Packing Dimension(L×D×H) | mm | 960*410*770 | 1120*540*930 | 1120*540*1120 | 1120*540*1120 | 1120*540*1230 | |||||||||||
| Net Weight | kg | 64 | 92 | 124 | 124 | 150 | |||||||||||
| Gross Weight | kg | 67 | 97 | 135 | 163 | 176 | |||||||||||
| Note: (1) Performance Condition: Air 27℃/Water 26℃/Humidity 80% | |||||||||||||||||
| (2) Performance Condition: Air 15℃/Water 26℃/Humidity 70% | |||||||||||||||||
| (3) Performance condition: Air 35℃/Water 28℃/Humidity 64% | |||||||||||||||||
