| Quantity: | |
|---|---|

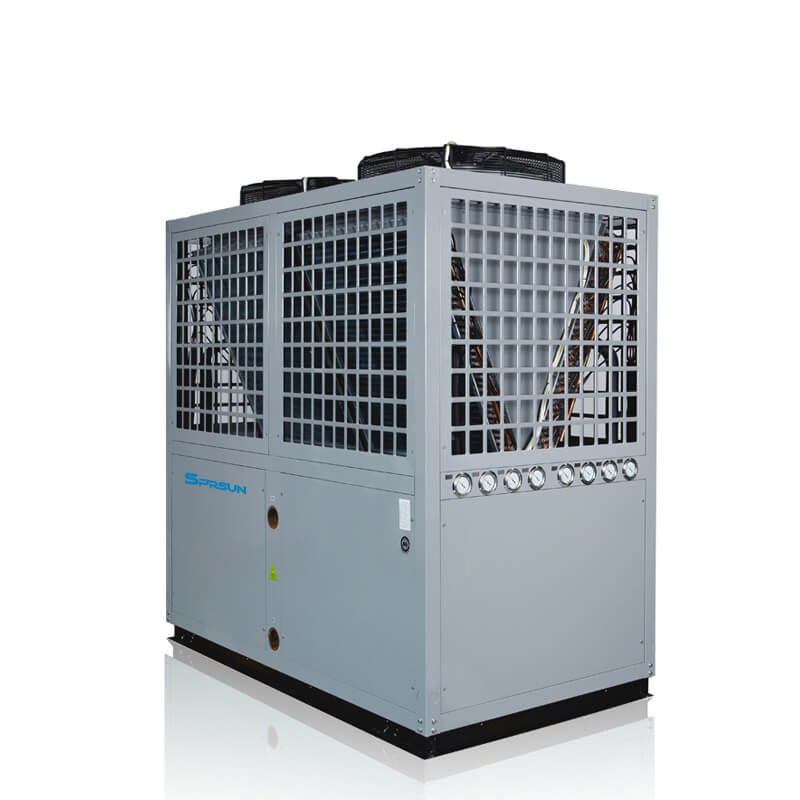

CGK/D-52; CGK/D-72; CGK/D-95; CGK/D-52(H); CGK/D-72(H); CGK/D-95(H)
SPRSUN
Rated working condition: dry-bulb temp: 20℃; wet-bulb temp: 15℃; cool water temp: 15℃; hot water temp: 55℃.
| Model | | CGK/D-52 | CGK/D-72 | CGK/D-95 | CGK/D-52(H) | CGK/D-72(H) | CGK/D-95(H) |
| Power Supply | V | 380V～415V/50Hz/3ph | |||||
| Refrigerant | | R410A | R407C | R134A | |||
| Heating Capacity | KW | 52 | 72 | 88 | 42 | 55 | 68 |
| Input Power | KW | 12.44 | 17.22 | 21 | 14.74 | 19.23 | 23.86 |
| COP | | 4.18 | 4.18 | 4.19 | 2.85 | 2.86 | 2.85 |
| Rated Current | A | 23.6 | 32.7 | 39.9 | 28 | 36.5 | 45.3 |
| Max Current | A | 31.9 | 44.2 | 53.8 | 37.8 | 49.3 | 61.2 |
| Max Input Power | KW | 16.8 | 23.3 | 28.4 | / | / | / |
| Fan Motor Power | W | 550 | 800 | 1150 | 250 | 800 | 1100 |
| Fan Motor Quantity | Piece | 2 | 2 | 2 | 2 | 2 | 2 |
| Condenser | | Tube in shell heat exchanger | |||||
| Water Rate | L/h | / | / | / | 602 | 788 | 974 |
| Water Flow | L/h | 9936 | 13758 | 16815 | 12038 | 15764 | 19490 |
| Water Pressure Drop | Kpa | ≤65 | ≤70 | ≤75 | ≤60 | ≤65 | ≤70 |
| Net Weight | kg | 300 | 482 | 582 | 380 | 482 | 582 |
| Gross Weight | kg | 320 | 506 | 611 | 399 | 506 | 611 |
| Noise | db | 68 | 75 | 78 | 68 | 72 | 75 |
| Waterproof Classification | | IPX4 | |||||
| Electric Shock Proof Grade | | I | |||||
| Pipe Size (Internal Thread) | mm | 40 | 50 | 65 | 40 | 50 | 65 |
| Dimension | mm | 1850*1000*1950 | 2000*1100*2080 | 1500*800*1515 | 1850*1000*1950 | 2000*1100*2080 | |
| Packing Dimension | mm | 1940*1120*2180 | 2090*1200*2260 | 1550*850*1665 | 1940*1120*2180 | 2090*1200*2260 | |
| Compressor Model/Quantity | | ZW83KWP*2 | ZW108KAE*2 | VR144KSE*2 | ZW79KAE*2 | ZW108KAE*2 | VR144KSE*2 |
SPRSUN air source heat pumps can supply domestic/commercial hot water and/or house heating. With 3-way valve, the heat pump controller can change the circulating direction of water between hot water tank and house heating system, and set hot water as priority.
Wide Range of Applications: these air to water heat pumps could meet the hot water and heating requirements of different places, such as villas, families, schools, factories, hotels, hospitals, spacenters, sauna centers, water parks, etc.
SPRSUN air source heat pumps use high quality components such as Copeland scroll compressor, Danfoss electronic expansion valve, Eaton AC contactor and thermal relay, etc.
It is easy to install SPRSUN air to water heat pumps, shown as the following Installation Diagram:
The COP of SPRSUN Air Source Heat Pumps at Different Working Conditions:
| Model | Air Temp ℃ | Water Temp ℃ | ||||
| CGK/D-52(H) | | 15-40 | 15-50 | 15-60 | 15-70 | 15-75 |
| CGK/D-72(H) | 7 | 3.09 | 2.93 | 2.79 | 2.68 | 2.6 |
| CGK/D-95(H) | 10 | 3.15 | 2.99 | 2.84 | 2.73 | 2.65 |
| | 15 | 3.25 | 3.08 | 2.93 | 2.82 | 2.74 |
| | 20 | 3.38 | 3.21 | 3.05 | 2.94 | 2.85 |
| | 25 | 3.55 | 3.37 | 3.21 | 3.08 | 2.99 |
| | 30 | 3.73 | 3.53 | 3.37 | 3.24 | 3.14 |
| Model | Air temp ℃ | Outlet water temperature ℃ | ||
| CGK/D-52 | | W35 | W45 | W55 |
| CGK/D-72 | -7 | 2.91 | 2.33 | 2.05 |
| CGK/D-95 | 0 | 3.36 | 2.69 | 2.37 |
| | 2 | 3.61 | 2.89 | 2.54 |
| | 5 | 3.88 | 3.11 | 2.73 |
| | 7 | 4.22 | 3.38 | 2.97 |
| | 12 | 4.69 | 3.75 | 3.3 |
| | 20 | 5.21 | 4.17 | 3.67 |
We care every detail on what you need!
Super Low Noise: Fitted cut clothes for compressor and strong pads to avoid vibration
Anti-corrosion: Aluminum edging
Exellent Welding Guarantee No Leakage: Four-way valve welding protection
Energy Saving: 30mm thickness for insulation to prevent energy lost
User-friendly Design: Ram design using machine wire
Reliability of the Connection: Adopt automatic stamping machine from Taiwan
Energy Saving Up to 75%: Compared with solar water heaters, gas water heaters and electric water weaters, the energy cost saved by SPRSUN air source heat pump water heaters is shocking.
| Item | SPRSUN Heat Pump | Solar Water Heater | Gas Water Heater | Electric Water Heater | |
| Heat source | electicity | solar+electricity | natural gas | liquefield gas | electricity |
| Heat Value | 860kcal/kw/h | 860kcal/kw/h | 9000kcal/m³ | 1080kcal/kg | 860kcal/kw/h |
| Efficiency | 450% | 1/3 time use of electric heater | 90% | 85% | 90% |
| Energy consumed per day | 2.07kw/h | 3.45kw/h | 0.99m³ | 0.87kg | 10.34kw/h |
| Cost | $0.11/kw.h | $0.11/kw.h | $0.42/m³ | $1.1/kg | $0.11/kw.h |
| Cost per day | $0.23 | $0.38 | $0.42 | $0.96 | $1.14 |
| Annual cost | $84 | $139 | $153 | $350 | $416 |
