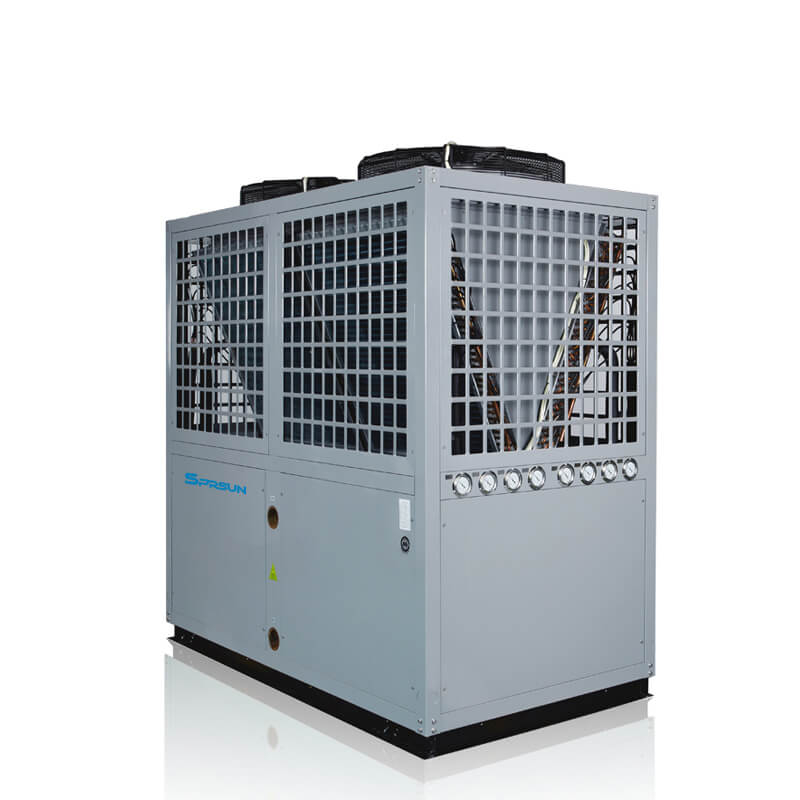

Combo Series - 42KW-92KW 80℃ Industrial EVI High Temperature Air Source Heat Pump Water Heater

1. High COP: 2.85/2.86/4.31

2. Max Water Temp: 80℃ CGK/D-52(LH) CGK/D-72(LH)

Max Water Temp: 60℃ CGK/D-52(L) CGK/D-72(L) CGK/D-95(L)

3. Power Supply: 380V～415V/50Hz/3ph

4. Running Temp: -25℃-45℃ CGK/D-52(L) CGK/D-72(L) CGK/D-95(L)

Running Temp: -10℃~45℃ CGK/D-52(LH) CGK/D-72(LH)

5. Heating Capacity: 42KW52KW/55KW/72KW/92KW
Quantity:
Inquire

  • CGK/D-52(LH); CGK/D-72(LH); CGK/D-52(L); CGK/D-72(L); CGK/D-95(L)

  • SPRSUN

Features of Heat Pumps



Tech Features of EVI High Temperature Air Source Heat Pump Water Heaters



Heat Pump Specifications



  • Rated working condition: dry-bulb temp: 20℃, wet-bulb temp: 15℃, cool water temp: 15℃, hot water temp: 55℃-75℃.

Model
CGK/D-52(LH)
No Cooling		 CGK/D-72(LH)
No Cooling		 CGK/D-52(L)
No Cooling		 CGK/D-72(L)
No Cooling		 CGK/D-95(L)
No Cooling
Power Supply V 380V～415V/50Hz/3ph
Refrigerant
R134A R407C R410A
Heating Capacity KW 42 55 52 72 92
Input Power KW 14.74 19.23 12.1 16.7 21.3
COP
2.85 2.86 4.31 4.31 4.31
Rated Current A 28 36.5 22.9 31.7 40.5
Max Current A 37.8 49.3 30.9 42.8 54.7
Max Input Power KW / / 16.3 22.6 28.8
Fan Motor Power W 250 800 350 800 1100
Fan Motor Quantity Piece 2 2 2 2 2
Water Rate L/h 602 788 / / /
Water Flow L/h 12038 15764 9936 13758 17579
Water Pressure Drop Kpa ≤65 ≤70 ≤60 ≤62 ≤65
Hot Water Production L/h / / 1188 1548 1978
Net Weight kg 380 482 380 482 582
Gross Weight kg 399 506 400 506 611
Noise db 68 75 68 72 75
Waterproof Classification
IPX4
Electric Shock Proof Grade
I
Pipe Size (Internal Thread) mm 40 50 40 50 65
Dimension mm 1500*800*1515 1850*1000*1950 1500*800*1515 1850*1000*1950 2000*1100*2080
Packing Dimension mm 1550*850*1665 1940*1120*2180 1580*880*1665 1940*1120*2180 2090*1200*2260
Compressor Model/Quantity
ZW79KSE*2 ZW108KSE*2 ZW79KSE*2 ZW108KSE*2 PSH034*2

The information in this document is just for reference. Since the continuous improvement and control in the production process, the information
contained in this document may be subject to change. Please refer to the nameplate on the machine for model specifications.



Heat Pump Components



SPRSUN EVI High Temperature Heat Pumps use high quality components, such as Copeland Enhanced vapour injection (EVI) technologh compressor, Danfoss Electronic expansion valve and Eaton AC contactor and thermal relay.

Components of EVI High Temperature Air Source Heat Pump Water Heaters





installing heat pumps



It is easy to install SPRSUN air source high temp heat pump as below:

Installation Diagram of EVI High Temperature Air Source Heat Pump Water Heaters





COP of heat pumps



SPRSUN High Temperature Air source Heat Pump COP at different temp conditions:

Model Air temp ℃  Hot water temp ℃
CGK/D-52(L);
CGK/D-72(L);
CGK/D-95(L)
W35 W45 W55

-25 2.21 1.85 1.5

-20 2.49 2.08 1.69

-12 2.89 2.41 1.97

-7 3.25 2.62 2.21

2 3.65 2.95 2.48

7 4.15 3.35 2.82

12 4.52 3.72 3.13

20 5.07 4.28 3.6


Model Air Temp ℃  Water Temp ℃
CGK/D-52(LH);
CGK/D-72(LH)
15-40 15-50 15-60 15-70 15-75

-7 2.44 2.32 2.21 2.12 2.06

2 3.05 2.9 2.76 2.65 2.57

7 3.09 2.93 2.79 2.68 2.6

10 3.15 2.99 2.84 2.73 2.65

15 3.25 3.08 2.93 2.82 2.74

20 3.38 3.21 3.05 2.94 2.85

25 3.55 3.37 3.21 3.08 2.99

30 3.73 3.53 3.37 3.24 3.14


workmanship of heat pumps





We care every detail on what you need!



Super Low Noise: Fitted cut clothes for compressor and strong pads to avoid vibration

Anti-corrosion: Aluminum edging

Exellent Welding Guarantee No Leakage: Four-way valve welding protection



low noise heat pumps





Energy Saving: 30mm thickness for insulation to prevent energy lost

User-friendly Design: Ram design using machine wire

Reliability of the Connection: Adopt automatic stamping machine from Taiwan



energy saving heat pumps





economic analysis of heat pumps



Energy Saving Up to 75%: Compared with solar water heaters, gas water heaters and electric water weaters, the energy cost saved by SPRSUN air source heat pump water heaters is shocking.

Item

SPRSUN

Heat Pump

Solar

Water Heater

          Gas Water Heater Electric Water Heater
Heat source electicity solar+electricity natural gas liquefield gas electricity
Heat Value 860kcal/kw/h 860kcal/kw/h 9000kcal/m³ 1080kcal/kg 860kcal/kw/h
Efficiency 450%

1/3 time use of

electric heater

 90% 85% 90%

Energy consumption

per day

 2.07kw/h 3.45kw/h 0.99m³ 0.87kg 10.34kw/h
Cost $0.11/kw.h $0.11/kw.h $0.42/m³ $1.1/kg $0.11/kw.h
Cost per day $0.23 $0.38 $0.42 $0.96 $1.14
Annual cost $84 $139 $153 $350 $416




Heat Pump Models



Related models are as below:

EVI High Temp Heat Pump Models





Heat Pump Technical Support





Our experienced engineering team provides good support for any questions concerning the products and installation before, during and after products are sold.



Before Selling

  • Set up customers file and arrange professional sales engineers to introduce company products and services to customers in details.

  • If customers are interested in our products, we will send professional technicians to survey the installation environment.

  • Provide solutions according to different customers' requirements.



During Selling

  • Machine installed and tested by QA engineers.

  • Ensure all the products we provide are qualified and new. The working life of the main engine is 15 years.

  • Construct and install the heat pump according to national relevant policies strictly and ensure high quality delivery on time.

  • Test and debug the equipments strictly to ensure the safety and stability.

  • During the delivery, provide comprehensive and professional technical training on instructions and maintenance to customers.



After Selling

  • We promise to offer free consulting call in 7×24 hours mode to solve the problems found in practice. The number is 86-20-82181867.

  • Sprsun offers 18-month long warranty. Within 18 months since the delivery date, if the product has any failure under normal usage, Sprsun will provide free assembly parts.

  • After the expiration of the warranty period, we will continue to provide lifelong maintenance services, with just a small amount of charges.
