CGH02-B CGH03-B CGH04-B CGH06-B
SPRSUN

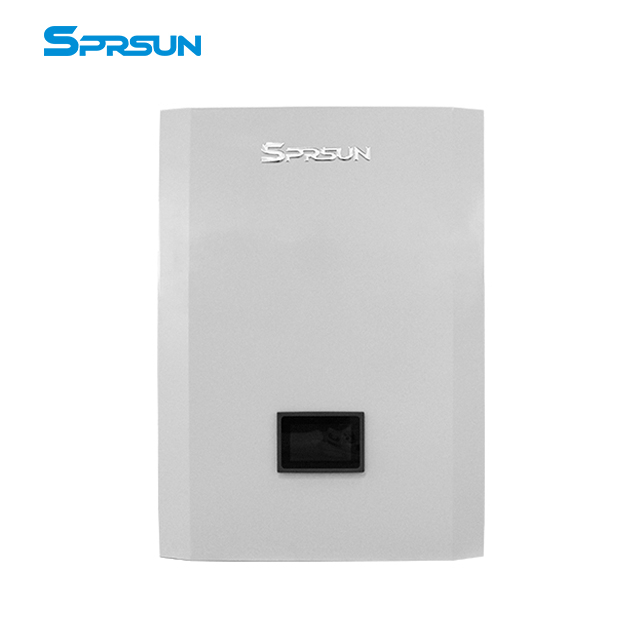

SPRSUN Heat Pump Kit is a perfect choice when installing a Monoblock heat pump. The heat pump kit consists of all major components for installation, including water pump, electric box, AC contactor, three-way valve, expansion tank, filter, leakage protection switch, etc. Currently the Heat Pump Kit supports R32 DC Inverter Heat Pumps, saving customers a lot of time and money on heat pump installation. Installing a Monoblock heat pump has never been so easy!
Model | CGH02-B | CGH03-B | CGH04-B | CGH06-B |
Sheet Metal | White | White | White | White |
3-Way Valve | DN25 | DN25 | DN25 | DN25 |
Filter | CALEFFI | CALEFFI | CALEFFI | CALEFFI |
Electric Heater | 3kW/220V | 3kW/220V | 3kW/220V | 3kW/220V |
Water Pump | Sinhoo GPA25-7.5H/130 | Sinhoo GPA25-9H/130 | Sinhoo GPA25-9H/130 | Sinhoo GPA25-11 |
Expansion Tank(L) | 5 | 5 | 5 | 5 |
Leakage Switch(A) | 32 | 40 | 63 | 63 |
AC Contactor(A) | 18 | 18 | 18 | 18 |
Cable Length(m) | 7 | 7 | 7 | 7 |
Connection Cable | 2.5mm²*3+0.75mm²*5+0.75mm²*2+24AWG*2 | 4mm²*3+0.75mm²*5+0.75mm²*2+24AWG*2 | 6mm²*3+0.75mm²*5+0.75mm²*2+24AWG*2 | 6mm²*3+0.75mm²*5+0.75mm²*2+24AWG*2 |
Package | Splint/Carton | Splint/Carton | Splint/Carton | Splint/Carton |
Power Supply(V) | 220-240 | 220-240 | 220-240 | 220-240 |
Max Current(A) | 14.4 | 14.4 | 14.4 | 14.4 |
Net Weight(kg) | 34 | 36 | 36 | 36 |
Gross Weight(kg) | 39 | 41 | 41 | 41 |
Splint Gross Weight(kg) | 49 | 51 | 51 | 51 |
Net Dimension(mm) | 600*290*825 | 600*290*825 | 600*290*825 | 600*290*825 |
Packing Dimension(mm) | 680*370*885 | 680*370*885 | 680*370*885 | 680*370*885 |
Splint Packaging Dimension(mm) | 680*370*995 | 680*370*995 | 680*370*995 | 680*370*995 |
Applicable Models | A101508/A102008/ Expansion Models | A102508/A103008/ Expansion Models | A104008/ Expansion Models | A105008/A106008/ Expansion Models |
The cost of installing a heat pump might range from anywhere between $2,000 to $10,000 or more. That's quite a range! However, with the component kit, customers can easily install their units by themselves without the help of a professional installer, saving a lot of money in this respect. What’s more, with the all-in-one installation kit, you do not need to spend time purchasing all the components that are needed for setting up your hot water and heating application.
Ideal for tight space, SPRSUN Heat Pump Kit is an all-in-one component kit with compact design. It comes with almost everything you need for installing a Monoblock heat pump, including water pump, 3-way valve, filters, electric box, expansion tank, switch, etc.
SPRSUN Heat Pump Kit uses high quality parts and components to ensure the functionality and efficiency of your heat pump unit.
Grundfos water pumps are designed to maximize the efficiency of a water-based heating system with a longer service life. The running cost can be reduced with less energy consumption. To meet the needs of different customers, SPRSUN Heat Pump Kit also offers a cheaper water pump alternative instead of Grundfos.
With the 3-way valve, customers can select the right modes according to their demands. If the hot water function is required, mixing applications (heating + hot water) can be selected while the hot water sensor is put into the hot water tank.
When water is heated, its volume expands and puts extra pressure on the tank. Located on the load side of an air to water heat pump, the expansion tank is used to protect the water heating system from thermal expansion.
The magnetic dirt separator with filter combines magnetic decontamination and safety exhaust components into a compact unit, suitable for heat pumps and boiler systems. As a reliable and efficient device, it is capable of different functions, including exhaust, filtering, magnetic decontamination, safe pressure relief and pressure monitoring.
SPRSUN Heat Pump Kit is a perfect choice when installing a Monoblock heat pump. The heat pump kit consists of all major components for installation, including water pump, electric box, AC contactor, three-way valve, expansion tank, filter, leakage protection switch, etc. Currently the Heat Pump Kit supports R32 DC Inverter Heat Pumps, saving customers a lot of time and money on heat pump installation. Installing a Monoblock heat pump has never been so easy!
Model | CGH02-B | CGH03-B | CGH04-B | CGH06-B |
Sheet Metal | White | White | White | White |
3-Way Valve | DN25 | DN25 | DN25 | DN25 |
Filter | CALEFFI | CALEFFI | CALEFFI | CALEFFI |
Electric Heater | 3kW/220V | 3kW/220V | 3kW/220V | 3kW/220V |
Water Pump | Sinhoo GPA25-7.5H/130 | Sinhoo GPA25-9H/130 | Sinhoo GPA25-9H/130 | Sinhoo GPA25-11 |
Expansion Tank(L) | 5 | 5 | 5 | 5 |
Leakage Switch(A) | 32 | 40 | 63 | 63 |
AC Contactor(A) | 18 | 18 | 18 | 18 |
Cable Length(m) | 7 | 7 | 7 | 7 |
Connection Cable | 2.5mm²*3+0.75mm²*5+0.75mm²*2+24AWG*2 | 4mm²*3+0.75mm²*5+0.75mm²*2+24AWG*2 | 6mm²*3+0.75mm²*5+0.75mm²*2+24AWG*2 | 6mm²*3+0.75mm²*5+0.75mm²*2+24AWG*2 |
Package | Splint/Carton | Splint/Carton | Splint/Carton | Splint/Carton |
Power Supply(V) | 220-240 | 220-240 | 220-240 | 220-240 |
Max Current(A) | 14.4 | 14.4 | 14.4 | 14.4 |
Net Weight(kg) | 34 | 36 | 36 | 36 |
Gross Weight(kg) | 39 | 41 | 41 | 41 |
Splint Gross Weight(kg) | 49 | 51 | 51 | 51 |
Net Dimension(mm) | 600*290*825 | 600*290*825 | 600*290*825 | 600*290*825 |
Packing Dimension(mm) | 680*370*885 | 680*370*885 | 680*370*885 | 680*370*885 |
Splint Packaging Dimension(mm) | 680*370*995 | 680*370*995 | 680*370*995 | 680*370*995 |
Applicable Models | A101508/A102008/ Expansion Models | A102508/A103008/ Expansion Models | A104008/ Expansion Models | A105008/A106008/ Expansion Models |
The cost of installing a heat pump might range from anywhere between $2,000 to $10,000 or more. That's quite a range! However, with the component kit, customers can easily install their units by themselves without the help of a professional installer, saving a lot of money in this respect. What’s more, with the all-in-one installation kit, you do not need to spend time purchasing all the components that are needed for setting up your hot water and heating application.
Ideal for tight space, SPRSUN Heat Pump Kit is an all-in-one component kit with compact design. It comes with almost everything you need for installing a Monoblock heat pump, including water pump, 3-way valve, filters, electric box, expansion tank, switch, etc.
SPRSUN Heat Pump Kit uses high quality parts and components to ensure the functionality and efficiency of your heat pump unit.
Grundfos water pumps are designed to maximize the efficiency of a water-based heating system with a longer service life. The running cost can be reduced with less energy consumption. To meet the needs of different customers, SPRSUN Heat Pump Kit also offers a cheaper water pump alternative instead of Grundfos.
With the 3-way valve, customers can select the right modes according to their demands. If the hot water function is required, mixing applications (heating + hot water) can be selected while the hot water sensor is put into the hot water tank.
When water is heated, its volume expands and puts extra pressure on the tank. Located on the load side of an air to water heat pump, the expansion tank is used to protect the water heating system from thermal expansion.
The magnetic dirt separator with filter combines magnetic decontamination and safety exhaust components into a compact unit, suitable for heat pumps and boiler systems. As a reliable and efficient device, it is capable of different functions, including exhaust, filtering, magnetic decontamination, safe pressure relief and pressure monitoring.
