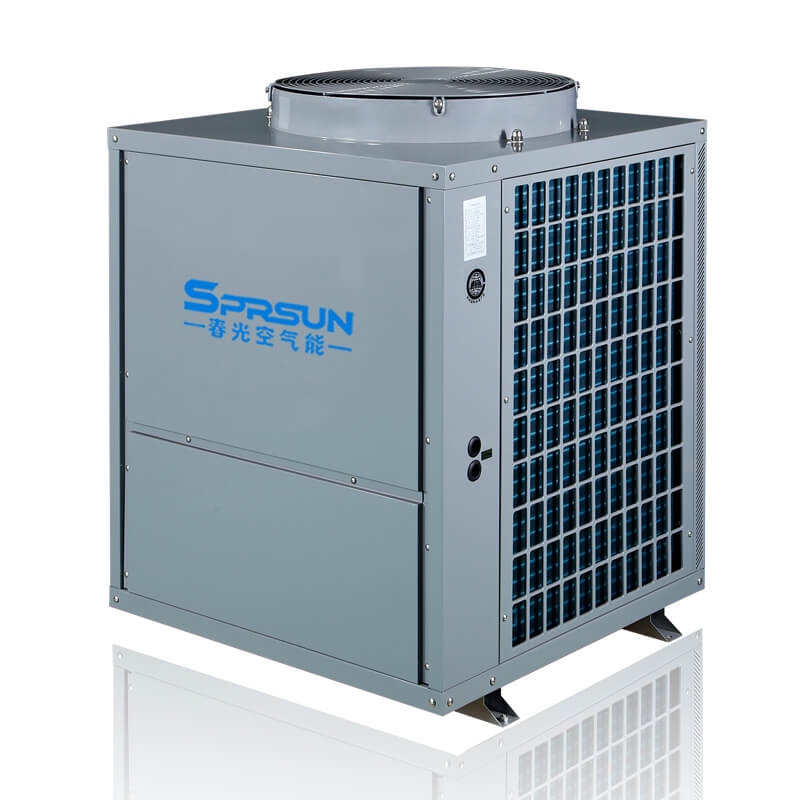

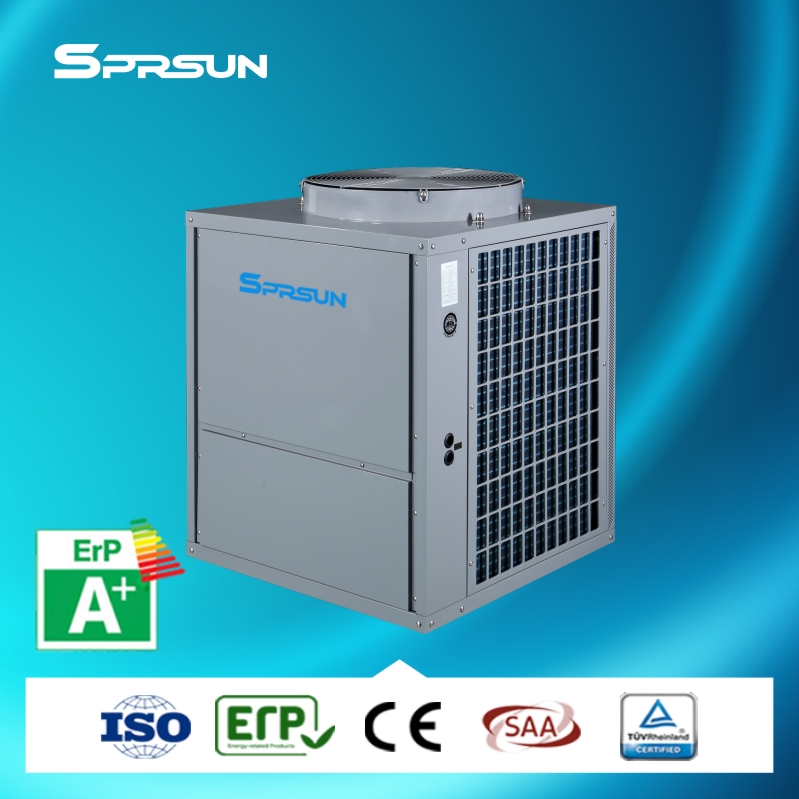

SPRSUN Top Discharge Swimming Pool Air Source Heat Pumps are designed for commercial pool water heating. They have the following important features:
Constant pool water temperature;
Absorb heat from the air with high COP (up to 5.16);
Working air temperature range: -10℃ to 45℃;
Automatic control of pool water temperature;
Max outlet water temperature: 40℃;
Guaranteed safety: water and electricity are isolated;
Anti-corrosion with Titanium tube-in-shell heat exchanger;
Save 65%-80% of the operating costs without pollution to the environment.
Rated working condition: dry-bulb temp: 24℃, wet-bulb temp: 16℃; water inlet temp: 27℃; water outlet temp: 29℃.
Model | | CGY/D-9 | CGY/D-12 | CGY/D-18 | CGY/D-12 | CGY/D-18 | CGY/D-22 |
Power Supply | V | 220-240V/50Hz/1ph | 380-415V/50Hz/3ph | ||||
Refrigerant | | R410A | |||||
Heating Capacity | KW | 10 | 15 | 18.5 | 15 | 20 | 26 |
Input Power | KW | 1.95 | 2.94 | 3.61 | 2.93 | 3.91 | 5.10 |
COP | | 5.12 | 5.11 | 5.12 | 5.12 | 5.11 | 5.10 |
Rated Current | A | 9.3 | 14.0 | 17.3 | 5.6 | 7.4 | 9.7 |
Max Current | A | 13.1 | 19.7 | 24.2 | 7.8 | 10.4 | 13.6 |
Fan Motor Power | W | 90 | 90 | 90 | 90 | 90 | 90 |
Fan Motor Quantity | Piece | 1 | 1 | 1 | 1 | 1 | 1 |
Condenser | | Titanium Tube in Shell Heat Exchanger | |||||
Water Flow | L/h | 3439 | 5159 | 6363 | 5159 | 6879 | 8942 |
Water Pressure Drop | Kpa | ≤20 | ≤23 | ≤25 | ≤28 | ≤35 | ≤36 |
Net Weight | kg | 95 | 100 | 140 | 100 | 140 | 148 |
Gross Weight | kg | 101 | 106 | 150 | 106 | 150 | 158 |
Noise | db | 54 | 54 | 58 | 54 | 58 | 58 |
Waterproof Grade | | IPX4 | |||||
Electric Shock Proof Grade | | I | |||||
Pipe Size (Internal Thread) | mm | 50 | 50 | 50 | 50 | 50 | 50 |
Dimension | mm | 710*710*925 | 810*810*1055 | 710*710*925 | 810*810*1055 | ||
Packing Dimension | mm | 780*780*1075 | 890*890*1205 | 780*780*1075 | 890*890*1205 |
It is easy to install SPRSUN swimming pool heat pump as shown by the following diagram:
We care every detail on what you need!
Super Low Noise: Fitted cut clothes for compressor and strong pads to avoid vibration
Anti-corrosion: Aluminum edging
Exellent Welding Guarantee No Leakage: Four-way valve welding protection
Energy Saving: 30mm thickness for insulation to prevent energy lost
User-friendly Design: Ram design using machine wire
Reliability of the Connection: Adopt automatic stamping machine from Taiwan
Related models are as below:
