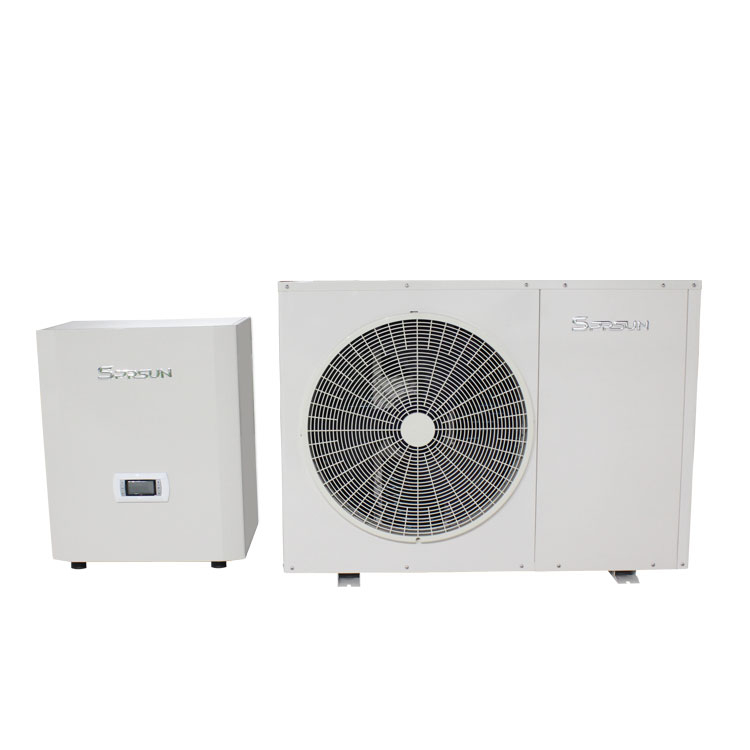

9.6KW EVI DC Inverter Split Air Source Heat Pump Water Heater House Heating Cooling Pump
2. Power Supply: 220V～240V/50Hz/1ph
3. Running Temp: -25℃~45℃
4. Max. Heating Capacity: 9.6KW
5. Max. Cooling Capacity: 7.9KW
6. Multi-functions: Hot Water/House Heating/House Cooling
| Quantity: | |
|---|---|
-
CGK030V2LS
-
SPRSUN
SPRSUN EVI DC Inverter Split Air Source Heat Pump Water Heater functions equally well with a traditional gas boiler, and yet it costs minimal electricity and has little influence on the planet. This EVI air to water heat pump are designed for domestic hot water, room heating and cooling in areas with cold climates or lowest ambient temperature of -25℃. It has a maximum COP of 5.56 and a power supply of 220V～240V/50Hz/1ph. It reaches a maximum heating capacity of 9.6KW and a maximum cooling capacity of 7.9KW and yet produces super low noise.
| Model | | CGK030V2LS | CGK050V2LS | CGK060V2LS | |||||||
| Power Supply / Refrigerant | V/Hz/Ph | 220-240/50/1 - R410A | 220-240/50/1 - R410A | 220-240/50/1 - R410A | |||||||
| Max. Heating Capacity (1) | kW | 9.6 | 16.8 | 18.8 | |||||||
| C.O.P (1) | W/W | 4.45 | 4.48 | 4.39 | |||||||
| Heating Capacity Min./Max. (1) | kW | 4.416 | / | 9.6 | 7.728 | / | 16.8 | 8.648 | / | 18.8 | |
| Heating Power Input Min./Max. (1) | W | 794 | / | 2157 | 1380 | / | 3750 | 1576 | / | 4282 | |
| C.O.P Min./Max. (1) | W/W | 4.45 | / | 5.56 | 4.48 | / | 5.60 | 4.39 | / | 5.49 | |
| Max. Heating Capacity (2) | kW | 9.0 | 15.8 | 17.7 | |||||||
| C.O.P (2) | W/W | 3.60 | 3.58 | 3.40 | |||||||
| Heating Capacity Min./Max. (2) | kW | 4.15 | / | 9.02 | 7.26 | / | 15.79 | 8.13 | / | 17.67 | |
| Heating power input Min./Max. (2) | W | 982 | / | 2535 | 1707 | / | 4406 | 1949 | / | 5032 | |
| C.O.P Min./Max. (2) | W/W | 3.56 | / | 4.23 | 3.58 | / | 4.26 | 3.51 | / | 4.17 | |
| Max. Cooling Capacity (3) | kW | 7.9 | 13.9 | 15.6 | |||||||
| E.E.R (3) | W/W | 3.50 | 3.48 | 3.30 | |||||||
| Cooling Capacity Min./Max. (3) | kW | 3.65 | / | 7.94 | 6.39 | / | 13.90 | 7.15 | / | 15.55 | |
| Cooling Power Input Min./Max. (3) | W | 919 | / | 2688 | 1598 | / | 4672 | 1825 | / | 5335 | |
| E.E.R Min./Max. (3) | W/W | 2.95 | / | 3.97 | 2.97 | / | 4.00 | 2.91 | / | 3.92 | |
| Max. Cooling Capacity (4) | kW | 6.3 | 11.1 | 12.4 | |||||||
| E.E.R (4) | W/W | 2.62 | 2.61 | 2.48 | |||||||
| Cooling Capacity Min./Max. (4) | kW | 2.91 | / | 6.32 | 5.09 | / | 11.05 | 5.69 | / | 12.37 | |
| Cooling Power Input Min./Max. (4) | W | 831 | / | 2672 | 1444 | / | 4645 | 1649 | / | 5305 | |
| E.E.R Min./Max. (4) | W/W | 2.36 | / | 3.50 | 2.38 | / | 3.52 | 2.33 | / | 3.45 | |
| Rated Current | A | 10.3 | 17.9 | 20.5 | |||||||
| Max Current | A | 14.97 | 26.02 | 29.71 | |||||||
| Compressor | Type - Quantity/System | | Twin Rotary - 1 | Twin Rotary - 1 | Twin Rotary - 1 | ||||||
| Fan | Quantity | | 1 | 2 | 2 | ||||||
| Airflow | m3/h | 3000 | 5000 | 5500 | |||||||
| Rated power | W | 100 | 200 | 210 | |||||||
| Water Side Heat Exchanger | Type | | Plate Heat Exchanger | Plate Heat Exchanger | Plate Heat Exchanger | ||||||
| Water Pressure Drop | kPa | 20 | 23 | 25 | |||||||
| Piping Connection | Inch | G1" | G1" | G1" | |||||||
| Allowable Water Flow | Min./Rated./Max. | L/S | 0.29 | 0.46 | 0.76 | 0.50 | 0.80 | 1.34 | 0.56 | 0.90 | 1.50 |
| Noise Level | | dB(A) | 59 | 62 | 63 | ||||||
| Expansion Tank | | L | 5 | 5 | 5 | ||||||
| Electric Heater | | kW | 3 | 6 | 6 | ||||||
| Grundfos Inverter Pump | | | UPMGEO 25-85-130 | UPMGEO 25-85-130 | UPMGEO 25-85-130 | ||||||
| Outdoor Unit Size（L×D×H) | mm | 1100*490*810 | 1100*490*1350 | 1100*490*1350 | |||||||
| Indoor Unit Size（L×D×H) | mm | 550*325*650 | 550*325*650 | 550*325*650 | |||||||
| Outdoor Unit Weight | Kg | 88 | 124 | 124 | |||||||
| Indoor Unit Weight | Kg | 25 | 27 | 27 | |||||||
| Note: (1) Heating condition: water inlet/outlet temperature: 30℃/35℃, Ambient temperature: DB 7℃/WB 6℃; | |||||||||||
| (2) Heating condition: water inlet/outlet temperature: 40℃/45℃, Ambient temperature: DB 7℃/WB 6℃; | |||||||||||
| (3) Cooling condition: water inlet/outlet temperature: 23℃/18℃, Ambient temperature: DB35℃/WB24℃; | |||||||||||
| (4) Cooling condition: water inlet/outlet temperature: 12℃/7℃, Ambient temperature: DB35℃/WB24℃. | |||||||||||
With 24-month long warranty, SPRSUN EVI Split DC Inverter Air Source Heat Pumps are designed for domestic hot water, room heating and cooling with lowest ambient temperature -25℃. They are featured with:
-
Low Ambient Temperature (-25℃ to 45℃)
Use the Panasonic Enhanced Vapour Injection (EVI) Technology Rotary Compressor. Work stably in cold weather where lowest air temperature reaches -25℃.
-
Anti-freezing Protection
Split model design to better avoid freezing problem. Automatic anti-freezing protection by detecting system water temperature.
-
Improved Heating Efficiency
To save energy, it will automatically change to low frequency operation mode when temperature reaches set value.
-
Low Noise Operation
Thanks to the DC inverter brushless fans, our split EVI DC inverter heat pumps are operating with sound insulation measures to ensure you have a super low noise unit.
-
Reduced Defrosting Time
When the unit needs defrosting, it will use high frequency operation, which greatly reduces the defrosting time.
SPRSUN EVI DC Inverter Split Air Source Heat Pump Water Heater functions equally well with a traditional gas boiler, and yet it costs minimal electricity and has little influence on the planet. This EVI air to water heat pump are designed for domestic hot water, room heating and cooling in areas with cold climates or lowest ambient temperature of -25℃. It has a maximum COP of 5.56 and a power supply of 220V～240V/50Hz/1ph. It reaches a maximum heating capacity of 9.6KW and a maximum cooling capacity of 7.9KW and yet produces super low noise.
