CGK050V2LS, CGK060V2LS
SPRSUN

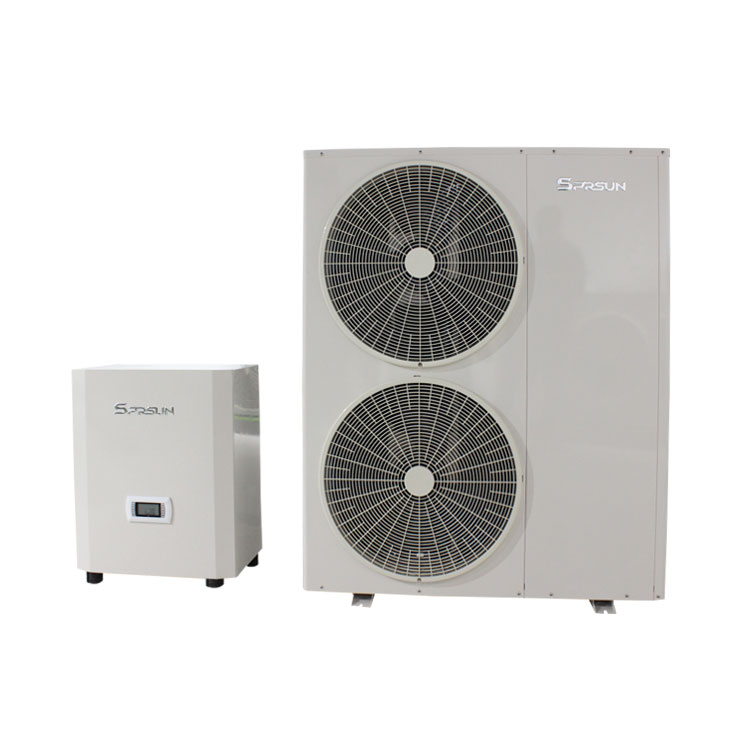

This SPRSUN DC Inverter Air to Water Heat Pump has a maximum heating capacity of 16.8-18.8KW and a maximum cooling capacity of 13.9-15.6KW. This heat pump is capable of hot water heating, house heating and cooling. It works well in low-temperature climates and yet consumes much less power. Hence, using this heat pump is cost effective. It’s convenient to install and easy to operate. Additionally, its spilt-type design can better avoid freezing problems during harsh days as the system implement automatic anti-freezing protection. SPRSUN DC Inverter Air to Water Low Temperature Spilt-type Heat Pump is safe and environmental-friendly, as well as bringing comfort to you and no pollution to the planet.
Model | | CGK030V2LS | CGK050V2LS | CGK060V2LS | |||||||
Power Supply / Refrigerant | V/Hz/Ph | 220-240/50/1 - R410A | 220-240/50/1 - R410A | 220-240/50/1 - R410A | |||||||
Max. Heating Capacity (1) | kW | 9.6 | 16.8 | 18.8 | |||||||
C.O.P (1) | W/W | 4.45 | 4.48 | 4.39 | |||||||
Heating Capacity Min./Max. (1) | kW | 4.416 | / | 9.6 | 7.728 | / | 16.8 | 8.648 | / | 18.8 | |
Heating Power Input Min./Max. (1) | W | 794 | / | 2157 | 1380 | / | 3750 | 1576 | / | 4282 | |
C.O.P Min./Max. (1) | W/W | 4.45 | / | 5.56 | 4.48 | / | 5.60 | 4.39 | / | 5.49 | |
Max. Heating Capacity (2) | kW | 9.0 | 15.8 | 17.7 | |||||||
C.O.P (2) | W/W | 3.60 | 3.58 | 3.40 | |||||||
Heating Capacity Min./Max. (2) | kW | 4.15 | / | 9.02 | 7.26 | / | 15.79 | 8.13 | / | 17.67 | |
Heating power input Min./Max. (2) | W | 982 | / | 2535 | 1707 | / | 4406 | 1949 | / | 5032 | |
C.O.P Min./Max. (2) | W/W | 3.56 | / | 4.23 | 3.58 | / | 4.26 | 3.51 | / | 4.17 | |
Max. Cooling Capacity (3) | kW | 7.9 | 13.9 | 15.6 | |||||||
E.E.R (3) | W/W | 3.50 | 3.48 | 3.30 | |||||||
Cooling Capacity Min./Max. (3) | kW | 3.65 | / | 7.94 | 6.39 | / | 13.90 | 7.15 | / | 15.55 | |
Cooling Power Input Min./Max. (3) | W | 919 | / | 2688 | 1598 | / | 4672 | 1825 | / | 5335 | |
E.E.R Min./Max. (3) | W/W | 2.95 | / | 3.97 | 2.97 | / | 4.00 | 2.91 | / | 3.92 | |
Max. Cooling Capacity (4) | kW | 6.3 | 11.1 | 12.4 | |||||||
E.E.R (4) | W/W | 2.62 | 2.61 | 2.48 | |||||||
Cooling Capacity Min./Max. (4) | kW | 2.91 | / | 6.32 | 5.09 | / | 11.05 | 5.69 | / | 12.37 | |
Cooling Power Input Min./Max. (4) | W | 831 | / | 2672 | 1444 | / | 4645 | 1649 | / | 5305 | |
E.E.R Min./Max. (4) | W/W | 2.36 | / | 3.50 | 2.38 | / | 3.52 | 2.33 | / | 3.45 | |
Rated Current | A | 10.3 | 17.9 | 20.5 | |||||||
Max Current | A | 14.97 | 26.02 | 29.71 | |||||||
Compressor | Type - Quantity/System | | Twin Rotary - 1 | Twin Rotary - 1 | Twin Rotary - 1 | ||||||
Fan | Quantity | | 1 | 2 | 2 | ||||||
Airflow | m3/h | 3000 | 5000 | 5500 | |||||||
Rated power | W | 100 | 200 | 210 | |||||||
Water Side Heat Exchanger | Type | | Plate Heat Exchanger | Plate Heat Exchanger | Plate Heat Exchanger | ||||||
Water Pressure Drop | kPa | 20 | 23 | 25 | |||||||
Piping Connection | Inch | G1" | G1" | G1" | |||||||
Allowable Water Flow | Min./Rated./Max. | L/S | 0.29 | 0.46 | 0.76 | 0.50 | 0.80 | 1.34 | 0.56 | 0.90 | 1.50 |
Noise Level | | dB(A) | 59 | 62 | 63 | ||||||
Expansion Tank | | L | 5 | 5 | 5 | ||||||
Electric Heater | | kW | 3 | 6 | 6 | ||||||
Grundfos Inverter Pump | | | UPMGEO 25-85-130 | UPMGEO 25-85-130 | UPMGEO 25-85-130 | ||||||
Outdoor Unit Size(L×D×H) | mm | 1100*490*810 | 1100*490*1350 | 1100*490*1350 | |||||||
Indoor Unit Size(L×D×H) | mm | 550*325*650 | 550*325*650 | 550*325*650 | |||||||
Outdoor Unit Weight | Kg | 88 | 124 | 124 | |||||||
Indoor Unit Weight | Kg | 25 | 27 | 27 | |||||||
Note: (1) Heating condition: water inlet/outlet temperature: 30℃/35℃, Ambient temperature: DB 7℃/WB 6℃; | |||||||||||
(2) Heating condition: water inlet/outlet temperature: 40℃/45℃, Ambient temperature: DB 7℃/WB 6℃; | |||||||||||
(3) Cooling condition: water inlet/outlet temperature: 23℃/18℃, Ambient temperature: DB35℃/WB24℃; | |||||||||||
(4) Cooling condition: water inlet/outlet temperature: 12℃/7℃, Ambient temperature: DB35℃/WB24℃. |
This SPRSUN DC Inverter Air to Water Heat Pump has a maximum heating capacity of 16.8-18.8KW and a maximum cooling capacity of 13.9-15.6KW. This heat pump is capable of hot water heating, house heating and cooling. It works well in low-temperature climates and yet consumes much less power. Hence, using this heat pump is cost effective. It’s convenient to install and easy to operate. Additionally, its spilt-type design can better avoid freezing problems during harsh days as the system implement automatic anti-freezing protection. SPRSUN DC Inverter Air to Water Low Temperature Spilt-type Heat Pump is safe and environmental-friendly, as well as bringing comfort to you and no pollution to the planet.
Model | | CGK030V2LS | CGK050V2LS | CGK060V2LS | |||||||
Power Supply / Refrigerant | V/Hz/Ph | 220-240/50/1 - R410A | 220-240/50/1 - R410A | 220-240/50/1 - R410A | |||||||
Max. Heating Capacity (1) | kW | 9.6 | 16.8 | 18.8 | |||||||
C.O.P (1) | W/W | 4.45 | 4.48 | 4.39 | |||||||
Heating Capacity Min./Max. (1) | kW | 4.416 | / | 9.6 | 7.728 | / | 16.8 | 8.648 | / | 18.8 | |
Heating Power Input Min./Max. (1) | W | 794 | / | 2157 | 1380 | / | 3750 | 1576 | / | 4282 | |
C.O.P Min./Max. (1) | W/W | 4.45 | / | 5.56 | 4.48 | / | 5.60 | 4.39 | / | 5.49 | |
Max. Heating Capacity (2) | kW | 9.0 | 15.8 | 17.7 | |||||||
C.O.P (2) | W/W | 3.60 | 3.58 | 3.40 | |||||||
Heating Capacity Min./Max. (2) | kW | 4.15 | / | 9.02 | 7.26 | / | 15.79 | 8.13 | / | 17.67 | |
Heating power input Min./Max. (2) | W | 982 | / | 2535 | 1707 | / | 4406 | 1949 | / | 5032 | |
C.O.P Min./Max. (2) | W/W | 3.56 | / | 4.23 | 3.58 | / | 4.26 | 3.51 | / | 4.17 | |
Max. Cooling Capacity (3) | kW | 7.9 | 13.9 | 15.6 | |||||||
E.E.R (3) | W/W | 3.50 | 3.48 | 3.30 | |||||||
Cooling Capacity Min./Max. (3) | kW | 3.65 | / | 7.94 | 6.39 | / | 13.90 | 7.15 | / | 15.55 | |
Cooling Power Input Min./Max. (3) | W | 919 | / | 2688 | 1598 | / | 4672 | 1825 | / | 5335 | |
E.E.R Min./Max. (3) | W/W | 2.95 | / | 3.97 | 2.97 | / | 4.00 | 2.91 | / | 3.92 | |
Max. Cooling Capacity (4) | kW | 6.3 | 11.1 | 12.4 | |||||||
E.E.R (4) | W/W | 2.62 | 2.61 | 2.48 | |||||||
Cooling Capacity Min./Max. (4) | kW | 2.91 | / | 6.32 | 5.09 | / | 11.05 | 5.69 | / | 12.37 | |
Cooling Power Input Min./Max. (4) | W | 831 | / | 2672 | 1444 | / | 4645 | 1649 | / | 5305 | |
E.E.R Min./Max. (4) | W/W | 2.36 | / | 3.50 | 2.38 | / | 3.52 | 2.33 | / | 3.45 | |
Rated Current | A | 10.3 | 17.9 | 20.5 | |||||||
Max Current | A | 14.97 | 26.02 | 29.71 | |||||||
Compressor | Type - Quantity/System | | Twin Rotary - 1 | Twin Rotary - 1 | Twin Rotary - 1 | ||||||
Fan | Quantity | | 1 | 2 | 2 | ||||||
Airflow | m3/h | 3000 | 5000 | 5500 | |||||||
Rated power | W | 100 | 200 | 210 | |||||||
Water Side Heat Exchanger | Type | | Plate Heat Exchanger | Plate Heat Exchanger | Plate Heat Exchanger | ||||||
Water Pressure Drop | kPa | 20 | 23 | 25 | |||||||
Piping Connection | Inch | G1" | G1" | G1" | |||||||
Allowable Water Flow | Min./Rated./Max. | L/S | 0.29 | 0.46 | 0.76 | 0.50 | 0.80 | 1.34 | 0.56 | 0.90 | 1.50 |
Noise Level | | dB(A) | 59 | 62 | 63 | ||||||
Expansion Tank | | L | 5 | 5 | 5 | ||||||
Electric Heater | | kW | 3 | 6 | 6 | ||||||
Grundfos Inverter Pump | | | UPMGEO 25-85-130 | UPMGEO 25-85-130 | UPMGEO 25-85-130 | ||||||
Outdoor Unit Size(L×D×H) | mm | 1100*490*810 | 1100*490*1350 | 1100*490*1350 | |||||||
Indoor Unit Size(L×D×H) | mm | 550*325*650 | 550*325*650 | 550*325*650 | |||||||
Outdoor Unit Weight | Kg | 88 | 124 | 124 | |||||||
Indoor Unit Weight | Kg | 25 | 27 | 27 | |||||||
Note: (1) Heating condition: water inlet/outlet temperature: 30℃/35℃, Ambient temperature: DB 7℃/WB 6℃; | |||||||||||
(2) Heating condition: water inlet/outlet temperature: 40℃/45℃, Ambient temperature: DB 7℃/WB 6℃; | |||||||||||
(3) Cooling condition: water inlet/outlet temperature: 23℃/18℃, Ambient temperature: DB35℃/WB24℃; | |||||||||||
(4) Cooling condition: water inlet/outlet temperature: 12℃/7℃, Ambient temperature: DB35℃/WB24℃. |
Our experienced engineering team provides good support for any questions concerning the products and installation before, during and after products are sold.
Before Selling
Set up customers file and arrange professional sales engineers to introduce company products and services to customers in details.
If customers are interested in our products, we will send professional technicians to survey the installation environment.
Provide solutions according to different customers' requirements.
During Selling
Machine installed and tested by QA engineers.
Ensure all the products we provide are qualified and new. The working life of the main engine is 15 years.
Construct and install the heat pump according to national relevant policies strictly and ensure high quality delivery on time.
Test and debug the equipments strictly to ensure the safety and stability.
During the delivery, provide comprehensive and professional technical training on instructions and maintenance to customers.
After Selling
We promise to offer free consulting call in 7x24 hours mode to solve the problems found in practice. The number is 86-20-82181867.
Sprsun offers standard 24-month warranty. Customers can choose to extend the warranty to 5 years with a small amount of fee. Within the warranty period since the delivery date, if the product has any failure under normal usage, Sprsun will provide free assembly parts.
After the expiration of the warranty period, we will continue to provide lifelong maintenance services, with just a small amount of charges.
