| Quantity: | |
|---|---|
CGK/D-9; CGK/D-12; CGK/D-18; CGK/D-22; CGK/D-12(H); CGK/D-18(H); CGK/D-22(H); CGK/D-28(H)
SPRSUN

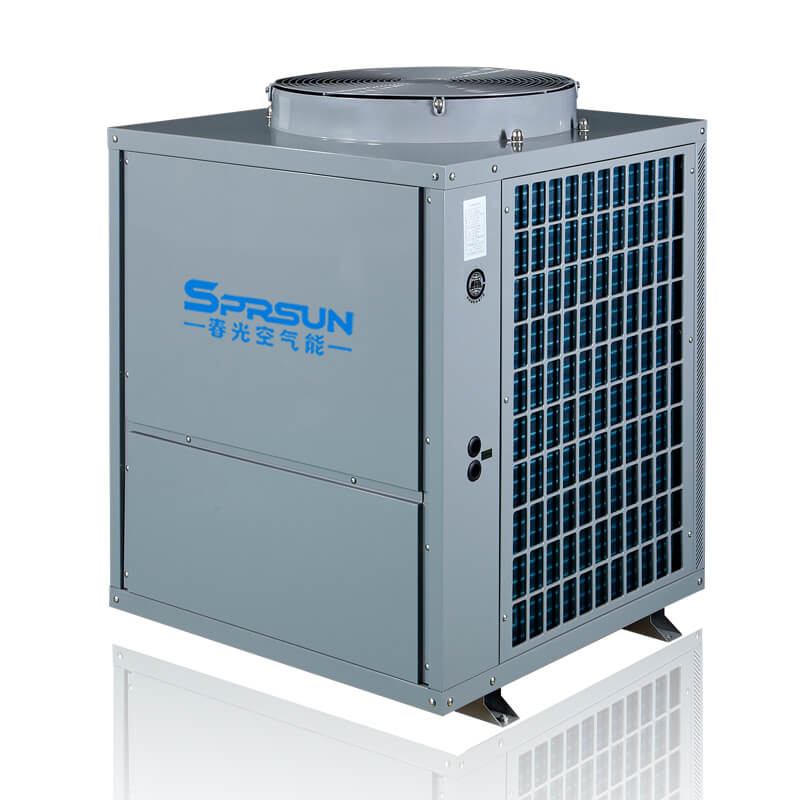

SPRSUN air source heat pump water heaters are designed for domestic hot water heating with max outlet water temperature 60℃. They have the following important features:
Heating mode, mono-block type;
COP up to 4.15;
Running temprature range: -10℃ to 45℃;
Max outlet water temperature can reach 60-80℃;
Electric heater backup function;
Multiple protections;
Refrigerant: R410A; R134A
Control object: hot water tank temperature; setting range: 30℃~75℃;
Control way: wire controller;
Water pump: stop when water reach preset temperature.
Rated working condition: dry-bulb temp: 20℃, wet-bulb temp: 15℃, cool water temp: 15℃, hot water temp: 55-75℃.
| Model | | CGK/D-9 | CGK/D-12 | CGK/D-18 | CGK/D-12 | CGK/D-18 | CGK/D-22 | CGK/D-12(H) | CGK/D-18(H) | CGK/D-12(H) | CGK/D-18(H) | CGK/D-22(H) | CGK/D-28(H) |
| Power Supply | V | 220V～240V/50Hz/1ph | 380V～415V/50Hz/3ph | 220V～240V/50Hz/1ph | 380V～415V/50Hz/3ph | ||||||||
| Refrigerant | | R410A | R134A | ||||||||||
| Heating Capacity | KW | 9.5 | 13.8 | 17.5 | 13.8 | 18.5 | 24.5 | 7.5 | 12.5 | 8.5 | 14 | 16 | 21 |
| Input Power | KW | 2.29 | 3.35 | 4.23 | 3.35 | 4.48 | 5.95 | 2.61 | 4.37 | 2.96 | 4.91 | 5.61 | 7.37 |
| COP | | 4.15 | 4.12 | 4.14 | 4.12 | 4.13 | 4.12 | 2.87 | 2.86 | 2.87 | 2.85 | 2.85 | 2.85 |
| Rated Current | A | 11.6 | 16.9 | 21.3 | 6.4 | 8.5 | 11.3 | 13.2 | 22.1 | 5.6 | 9.3 | 10.7 | 14 |
| Max Current | A | 15.6 | 22.8 | 28.8 | 8.6 | 11.5 | 15.2 | 17.8 | 29.8 | 7.6 | 12.6 | 14.4 | 18.9 |
| Max Input Power | KW | 3.2 | 4.7 | 5.9 | 4.7 | 6.3 | 8.3 | / | / | / | / | / | |
| Fan Motor Power | W | 90 | 90 | 250 | 90 | 250 | 250 | 90 | 250 | 90 | 250 | 250 | 100 |
| Fan Motor Quantity | Piece | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 |
| Condenser | | Tube in shell heat exchanger | Tube in shell heat exchanger | ||||||||||
| Water Flow | L/h | 1815 | 2637 | 3344 | 2637 | 3535 | 4681 | 1433 | 2388 | 1624 | 2675 | 3057 | 6019 |
| Water Rate | L/h | 204 | 297 | 376 | 297 | 398 | 527 | 107 | 179 | 122 | 201 | 229 | 301 |
| Water Pressure Drop | Kpa | ≤30 | ≤35 | ≤40 | ≤35 | ≤45 | ≤50 | ≤40 | ≤45 | ≤40 | ≤45 | ≤50 | ≤52 |
| Net Weight | kg | 95 | 100 | 140 | 100 | 140 | 148 | 112 | 164 | 112 | 164 | 180 | 200 |
| Gross Weight | kg | 101 | 106 | 150 | 106 | 150 | 158 | 118 | 174 | 118 | 174 | 192 | 215 |
| Noise | db | 52 | 52 | 57 | 52 | 57 | 58 | 52 | 56 | 52 | 56 | 57 | 59 |
| Waterproof Classification | | IPX4 | IPX4 | ||||||||||
| Electric Shock Proof Grade | | Ⅰ | Ⅰ | ||||||||||
| Pipe Size (Internal Thread) | mm | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Dimension | mm | 710*710*925 | 810*810*1055 | 710*710*925 | 810*810*1055 | 710*710*925 | 810*810*1055 | 710*710*925 | 810*810*1055 | 1237*480*1410 | |||
| Packing Dimension | mm | 780*780*1075 | 890*890*1205 | 780*780*1075 | 890*890*1205 | 780*780*1075 | 890*890*1205 | 780*780*1075 | 890*890*1205 | 1300*540*1580 | |||
| Compressor Model/Quantity | | ZW28KWP*1 | ZW42KWP*1 | ZW51KWP*1 | ZW42KWP*1 | ZW54KWP*1 | ZW72KWP*1 | ZW30KAE*1 | ZW52KSE*1 | ZW34KAE*1 | ZW61KAE*1 | ZW72KAE | ZW79KAE |
Our low cost air source heat pump water heaters use high quality components such as Copeland scroll compressor, Emerson thermal expansion valve, SANHUA 4-way valve, etc.
It is easy to install SPRSUN air source heat pump water heaters as below:
SPRSUN air source heat pump cop at different working conditions:
| Air Temp ℃ | COP ( Outlet temp. W45） |
| -7 | 2.33 |
| 0 | 2.69 |
| 2 | 2.89 |
| 5 | 3.11 |
| 7 | 3.38 |
| 12 | 3.75 |
| 20 | 4.17 |
| 30 | 4.59 |
We care every detail on what you need!
Super Low Noise: Fitted cut clothes for compressor and strong pads to avoid vibration
Anti-corrosion: Aluminum edging
Exellent Welding Guarantee No Leakage: Four-way valve welding protection
Energy Saving: 30mm thickness for insulation to prevent energy lost
User-friendly Design: Ram design using machine wire
Reliability of the Connection: Adopt automatic stamping machine from Taiwan
Energy Saving Up to 75%: Compared with solar water heaters, gas water heaters and electric water weaters, the energy cost saved by SPRSUN air source heat pump water heaters is shocking.
| Item | SPRSUN Heat Pump | Solar Water Heater | Gas Water Heater | Electric Water Heater | |
| Heat source | electicity | solar+electricity | natural gas | liquefield gas | electricity |
| Heat Value | 860kcal/kw/h | 860kcal/kw/h | 9000kcal/m³ | 1080kcal/kg | 860kcal/kw/h |
| Efficiency | 450% | 1/3 time use of electric heater | 90% | 85% | 90% |
| Energy consumption per day | 2.07kw/h | 3.45kw/h | 0.99m³ | 0.87kg | 10.34kw/h |
| Cost | $0.11/kw.h | $0.11/kw.h | $0.42/m³ | $1.1/kg | $0.11/kw.h |
| Cost per day | $0.23 | $0.38 | $0.42 | $0.96 | $1.14 |
| Annual cost | $84 | $139 | $153 | $350 | $416 |
