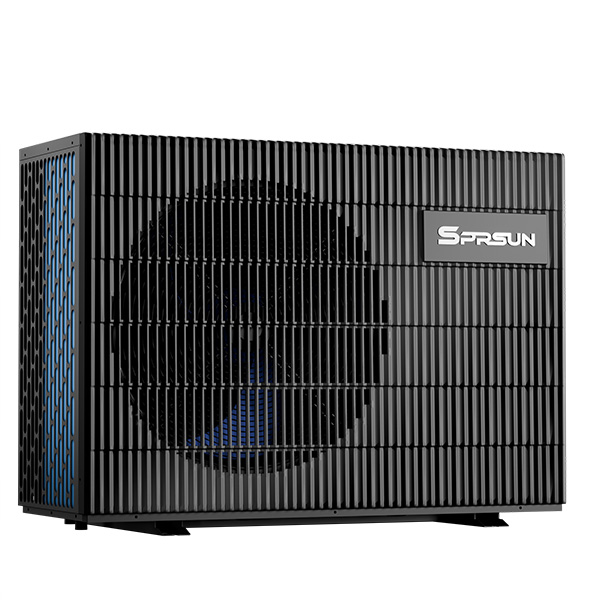

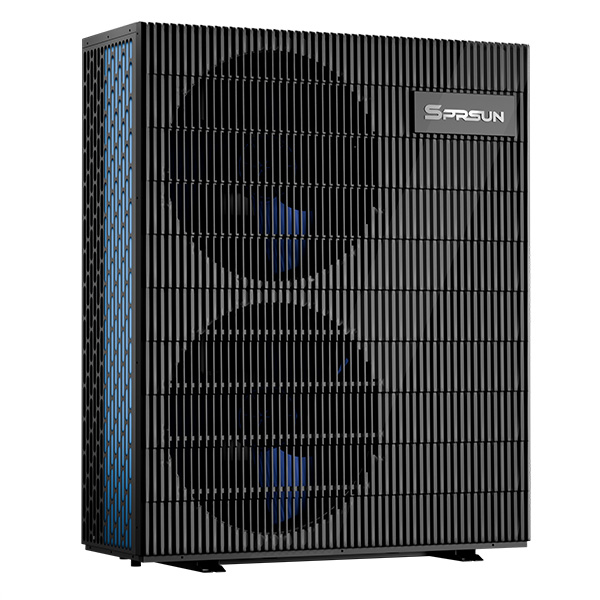

R290 Greenergy Evo Air-Source Heat Pump A+++

Name: R290 Greenergy Evo Air-Source Heat Pump A+++
Brand: SPRSUN
Rating: 5.0 (16 reviews)

This advanced R290 air-to-water heat pump boasts dual A+++ energy rating for outstanding efficiency. Adopting eco-friendly R290 natural refrigerant with ultra-low GWP, it fully complies with EU environmental regulations. Supporting heating, cooling and domestic hot water, it runs stably at -25°C, features full DC inverter, silent operation and smart control, ideal for European residential low-carbon solutions.

SKU:
Availability:

Quantity:



Inquire

Model:
CGKO3OV4P-A; CGKO40V4P-A; CGKO5OV4P-A; CGKO6OV4P-A; CGK-030V4P-A; CGK-040V4P-A; CGK-050V4P-A; CGK-060V4P-A
Brand:
SPRSUN

Boasting dual A+++ energy efficiency, this R290 air-to-water heat pump delivers outstanding eco-friendly performance for European households. Utilizing natural low-GWP R290 refrigerant and full DC inverter technology, it greatly cuts energy consumption and carbon footprints. Equipped with intelligent Carel control, AI defrost and Wi-Fi connectivity, it supports dual-zone regulation and multi-language operation for user-friendly smart management. Designed for all climates, it stably operates at -25°C with ultra-quiet running and comprehensive safety protection. The monobloc structure ensures easy installation, while SG Ready certification and boiler, PV compatibility make it ideal for new builds and retrofits, providing reliable heating, cooling and hot water solutions year-round.

Multifunctional Heat Pump (GreenergyEvo)_Brochure-2

Multifunctional Heat Pump (GreenergyEvo)_Brochure-4

Multifunctional Heat Pump (GreenergyEvo)_Brochure-5

Multifunctional Heat Pump (GreenergyEvo)_Brochure-6

Key Features:

1. Unrivaled Energy Efficiency & Eco Design

Dual ERP A+++ highest rating at 35°C & 55°C, lowering energy costs and carbon emissions to meet EU regulations.
Adopts natural R290 refrigerant with zero ODP and ultra-low GWP for sustainable heating.
Full DC inverter technology delivers higher efficiency, stable output and less heat loss in cold weather.
PV-ready design allows easy connection with solar systems to maximize renewable energy utilization.

2. Intelligent Climate Control

User-friendly 5-inch color touch panel with one-touch operation and OTA online updates.
Dual-zone control enables independent temperature settings for customized home comfort.
Multi-language support covering 25+ European languages for localised operation.
RS485 & Modbus compatible for seamless smart home and BMS system integration.

3. AI Smart Connection & Management

Advanced Carel control system automatically adjusts operation based on ambient conditions.
Smart AI defrost technology avoids frequent defrosting and maintains stable heating capacity.
Built-in IoT WiFi for remote monitoring, real energy data checking and remote after-sales support.
Dual dedicated APPs for end users and installers, supporting remote control and fast fault diagnosis.
Optional voice control provides hands-free operation for easier daily use.

4. All-weather Durability & Safety

Multi-level Class A safety protection, equipped with R290 leakage detection and automatic safety response.
Wide working range from -25°C to 45°C, max water temperature up to 75°C for year-round performance.
Optimized silent structure ensures ultra-low noise for quiet residential environments.
Wide voltage adaptation fits various European power grid conditions.
Hybrid compatible, easy to connect with existing gas boilers for renovation projects.

5. Easy Installation & Wide Application

Integrated monobloc structure simplifies installation and daily maintenance.
Multiple capacity options from 10kW to 19kW for different residential demands.
SG Ready certified, fully compliant with German and smart grid standards.
Perfect solution for new energy-saving buildings, renovations and low-carbon projects.

SPRSUN R290 DC Inverter Air Source Heat Pumps Parameter

Multifunctional Heat Pump (GreenergyEvo)_Brochure-7

Model			CGK030V4P-A			CGK040V4P-A			CGK050V4P-A			CGK060V4P-A			CGK-030V4P-A			CGK-040V4P-A			CGK-050V4P-A			CGK-060V4P-A
Power Supply / Refrigerant		V/Hz/Ph	220-240/50/1 - R290			220-240/50/1 - R290			220-240/50/1 - R290			220-240/50/1 - R290			380-420/50/3 - R290			380-420/50/3 - R290			380-420/50/3 - R290			380-420/50/3 - R290
Max. Heating Capacity (A7℃/W35℃)		kW	10			12			16			19			10			12			16			19
C.O.P (A7℃/W35℃)		W/W	4.46			4.48			4.48			4.25			4.46			4.48			4.48			4.25
Heating Capacity Min./Max (A7℃/W35℃)		kW	4.60	/	10.00	5.52	/	12.00	7.36	/	16.00	8.74	/	19.00	4.60	/	10.00	5.52	/	12.00	7.36	/	16.00	8.74	/	19.00
Heating Power Input Min./Max (A7℃/W35℃)		W	812	/	2242	970	/	2679	1264	/	3571	1523	/	4471	812	/	2242	970	/	2679	1264	/	3571	1523	/	4471
C.O.P Min./Max.(A7℃/W35℃)		W/W	4.46	/	5.66	4.48	/	5.69	4.48	/	5.82	4.25	/	5.74	4.46	/	5.66	4.48	/	5.69	4.48	/	5.82	4.25	/	5.74
Max. Heating Capacity(A7℃/W45℃)		kW	9.4			11.2			14.6			18.1			9.4			11.2			14.6			18.1
C.O.P (A7℃/W45℃)		W/W	3.70			3.81			3.76			3.68			3.70			3.81			3.76			3.68
Heating Capacity Min./Max (A7℃/W45℃)		kW	4.30	/	9.35	5.13	/	11.16	6.70	/	14.56	8.35	/	18.15	4.30	/	9.35	5.13	/	11.16	6.70	/	14.56	8.35	/	18.15
Heating power input Min./Max (A7℃/W45℃)		W	999	/	2526	1187	/	2931	1513	/	3869	1914	/	5337	999	/	2621	1187	/	3114	1513	/	4063	1914	/	5337
C.O.P Min./Max.(A7℃/W45℃)		W/W	3.70	/	4.30	3.81	/	4.32	3.76	/	4.43	3.40	/	4.36	3.57	/	4.30	3.58	/	4.32	3.58	/	4.43	3.40	/	4.36
Max. Cooling Capacity(A35℃/W18℃)		kW	8.9			10.6			13.8			17.2			8.9			10.6			13.8			17.2
E.E.R (A35℃/W18℃)		W/W	3.59			3.69			3.65			3.57			3.59			3.69			3.65			3.57
Cooling Capacity Min./Max.(A35℃/W18℃)		kW	4.09	/	8.88	4.88	/	10.60	6.36	/	13.83	7.93	/	17.24	4.09	/	8.88	4.88	/	10.60	6.36	/	13.83	7.93	/	17.24
Cooling Power Input Min./Max (A35℃/W18℃)		W	969	/	2474	1151	/	2870	1467	/	3789	1856	/	4829	969	/	2474	1151	/	2870	1467	/	3789	1856	/	4829
E.E.R Min./Max.(A35℃/W18℃)		W/W	3.59	/	4.22	3.69	/	4.24	3.65	/	4.34	3.57	/	4.27	3.59	/	4.22	3.69	/	4.24	3.65	/	4.34	3.57	/	4.27
Max. Cooling Capacity(A35℃/W7℃)		kW	7.8			9.4			11.8			14.8			7.8			9.4			11.8			14.8
E.E.R(A35℃/W7℃)		W/W	2.95			2.95			2.80			2.85			2.95			2.95			2.80			2.85
Cooling Capacity Min./Max.(A35℃/W7℃)		kW	3.59	/	7.80	4.32	/	9.40	5.43	/	11.80	6.81	/	14.80	3.59	/	7.80	4.32	/	9.40	5.43	/	11.80	6.81	/	14.80
Cooling Power Input Min./Max (A35℃/W7℃)		W	966	/	2644	1160	/	3186	1422	/	4214	1810	/	5193	966	/	2644	1160	/	3186	1422	/	4214	1810	/	5193
E.E.R Min./Max.(A35℃/W7℃)		W/W	2.95	/	3.71	2.95	/	3.73	2.80	/	3.82	2.85	/	3.76	2.95	/	3.71	2.95	/	3.73	2.80	/	3.82	2.85	/	3.76
Max Power Input		kW	4.36			5.05			6.80			7.83			4.36			5.05			6.80			7.83
Max Current		A	20.86			24.16			32.54			37.46			9.20			10.66			14.35			16.52
Wire diameter		mm²	4.0			6.0			6.0			6.0			2.5			2.5			4.0			4.0
Fuse or circuitbreakerer		A	32A			32A			40A			50A			13A			16A			20A			25A
Water Flow		m3/h	1.63			2.00			2.67			3.18			1.63			2.00			2.67			3.18
Hot Water Flow Rate		L/h	191			230			303			381			191			230			303			381
Compressor	Type - Quantity/System		Twin Rotary - 1			Twin Rotary - 1			Twin Rotary - 1			Twin Rotary - 1			Twin Rotary - 1			Twin Rotary - 1			Twin Rotary - 1			Twin Rotary - 1
Fan	Quantity		1			1			2			2			1			1			2			2
	Airflow	m3/h	3000			3500			5000			5500			3000			3500			5000			5500
	Rated power	W	100			120			200			210			100			120			200			210
Water Side Heat Exchanger	Type		Plate Heat Exchanger			Plate Heat Exchanger			Plate Heat Exchanger			Plate Heat Exchanger			Plate Heat Exchanger			Plate Heat Exchanger			Plate Heat Exchanger			Plate Heat Exchanger
	Water Pressure Drop	kPa	20			21			23			25			20			21			23			25
	Piping Connection	Inch	G1"			G1"			G1"			G1"			G1"			G1"			G1"			G1"
Pump model		/	APM25-9-130			APM25-9-130			APF25-12-130E			APF25-12-130E			APM25-9-130			APM25-9-130			APF25-12-130E			APF25-12-130E
Max Water Pump Head		m		9			9			10.5			10.5			9			9			10.5			10.5
Allowable Water Flow	Min./Rated./Max.	L/S	0.30	0.48	0.80	0.36	0.57	0.96	0.48	0.76	1.27	0.57	0.91	1.51	0.30	0.48	0.80	0.36	0.57	0.96	0.48	0.76	1.27	0.57	0.91	1.51
Sound pressure level(1m)		dB(A)	38			37			40			41			38			37			40			41
Sound power level(1m)		dB(A)	53			52			55			56			52			53			55			56
Net Dimension(L×D×H)		mm	1110475810			1110475960			11104751355			11104751355			1110475810			1110475960			11104751355			11104751355
Carton packing Dimension(L×D×H)		mm	1165505960			11655051110			11655051520			11655051520			1165505960			11655051100			11655051520			11655051520
Splint packing Dimension(L×D×H)		mm	1210540960			12105401110			12105401520			12105401520			1210540960			12105401110			12105401520			12105401520
Net Weight		kg	115			125			168			180			115			125			168			180
Carton gross Weight		kg	133			147			172			184			133			147			172			184
Splint gross Weight		kg	140			173			212			224			140			173			212			224
Pdesignh（35/55℃）		kW	7.596/7.032			8.254/7.846			10.699/10.097			12.869/12.086			7.626/7.032			8.231/7.846			10.719/10.097			12.766/12.086
SCOP（35/55℃）		kWh/kWh	5.02/3.90			5.03/3.93			5.06/3.88			5.08/3.97			5.02/3.90			5.03/3.93			5.06/3.88			5.08/3.97
SCOPon（35/55℃）		kWh/kWh	5.03/3.92			5.05/3.94			5.08/3.89			5.10/3.98			5.03/3.92			5.05/3.94			5.08/3.89			5.10/3.98
QH（35/55℃）		kWh/year	15680/14534			17045/16210			22106/20861			26651/24970			15680/14534			17045/16210			22106/20861			26651/24970
QHE（35/55℃）		kWh/year	3142/3723			3398/4122			4369/5370			5264/6286			3142/3723			3398/4122			4369/5370			5264/6286
Ƞs,h（35/55℃）		--	197.9%/153.1%			198.2%/154.3%			199.4%/152.4%			200.2%/155.9%			197.9%/153.1%			198.2%/154.3%			199.4%/152.4%			200.2%/155.9%
Seasonal space heating energyefficiency classes: (According (EU)No 811/2013 Table 2)		--	A+++			A+++			A+++			A+++			A+++			A+++			A+++			A+++
Seasonal space heating energyefficiency classes: (According (EU)No 811/2013 Table 1)		--	A+++			A+++			A+++			A+++			A+++			A+++			A+++			A+++
Operation Ambint Temp.(℃)		-25~45
Operation water Temp.(℃)		10~70(DHW)
Operation water Temp.(℃)		10~70(Heating)
Operation water Temp.(℃)		12~30(Cooling)
Note: (1) Heating condition: water inlet/outlet temperature: 30℃/35℃, Ambient temperature: DB 7℃/WB 6℃;
(2) Heating condition: water inlet/outlet temperature: 40℃/45℃, Ambient temperature: DB 7℃/WB 6℃;
(3) Cooling condition: water inlet/outlet temperature: 23℃/18℃, Ambient temperature: DB35℃/WB24℃;
(4) Cooling condition: water inlet/outlet temperature: 12℃/7℃, Ambient temperature: DB35℃/WB24℃;

The information in this document is just for reference. Since the continuous improvement and control in the production process, the information contained in this document may be subject to change. Please refer to the nameplate on the machine for model specifications.
