Heat pump water heaters (HPWH) are an excellent alternative to traditional electric or gas water heaters, as they effectively save costs and are highly energy-efficient. With the right tools and knowledge, you can successfully install it and enjoy numerous benefits like reduced energy bills, reliable hot water supply, etc.
If you’re considering installing a heat pump water heater, it is important that you understand the installation process. This guide will walk you through how to install heat pump water heater, covering the necessary steps and considerations.
Before you begin, there are key factors that you must evaluate. This is to ensure that the heating system is suitable for your home or office, meets your needs, and complies with local regulations in your community.
Below is a concise list of things to consider:
First, make sure that the designated installation area has enough space for airflow & maintenance access, and is devoid of obstructions. HPWHs are taller and wider than traditional water heaters so they typically require about 450–700 cubic feet of air volume and 6–12 inches clearance. Ideal locations to place a HPWH include the basement, garage, or utility room in your house.
Heat pump water heaters work by extracting heat from surrounding air, so you must consider the average temperature of the installation area. They perform best in ambient temperatures, between 40°F and 90°F, and if the installation area gets too cold or hot, efficiency drops. However, advanced heat pump technology, such as the R290 heat pump hot water, delivers efficient, cost-saving hot water year-round.
Verify if your electrical system meets the specific power requirement of the heat pump you want to install or if an upgrade is needed. Most HPWHs require a 240V, 30A circuit, while some models work with 120V. Also, ensure there is proper wiring and a dedicated circuit breaker for the water heater to function optimally. You should get a licensed electrician to help you assess these.
Confirm that the existing plumbing system in your home or business place matches the heat pump’s connection. After doing this, you need to get a few plumbing materials e.g., copper or PEX pipes, shut-off valves, a temperature and pressure (T&P) relief valve, etc. HPWHs also produce condensate (like an air conditioner), so you’ll need a nearby floor drain, a condensate pump, or a drain line routed to a safe discharge point.
Many areas require permits for heat pump hot water installation. So, contact your local building department to confirm and get yours. Also, check your building codes for plumbing, electrical & seismic requirements, and follow it religiously. Assess your skills and consider hiring licensed professionals to avoid safety risks or code violations.
Hot water heater costs with installation ranges between $1,000–$3,000. There will be additional cost if electrical or plumbing upgrades are needed. In spite of that, HPWHs are 2–3 times more efficient than standard electric water heaters, with the potential to help you save $300–$500 annually on energy bills. Also, you have access to rebates and incentives put in place for people who make qualified energy-efficient improvements to their home e.g., U.S. Inflation Reduction Act offers up to $2,000 for HPWHs in 2025.
Here is a step-by-step guide on how to install heat pump water heater:
Before installation, confirm that the installation site meets space, ventilation, and structural requirements of the HPWH unit. The floor of the site should be flat and level to prevent tipping or uneven operation. It should also be able to support the weight of the HPWH, and the water it holds (for example, a 50-gallon tank weighs approximately 400-500 lbs when full). Choose an installation site that is close to a floor drain and has access to an appropriately rated electrical circuit.
For domestic units, common locations include basements, garages, utility rooms, or outdoor areas (for outdoor-rated models. While, for commercial heat pump water heaters, you should consider mechanical rooms or designated utility spaces with adequate ventilation.

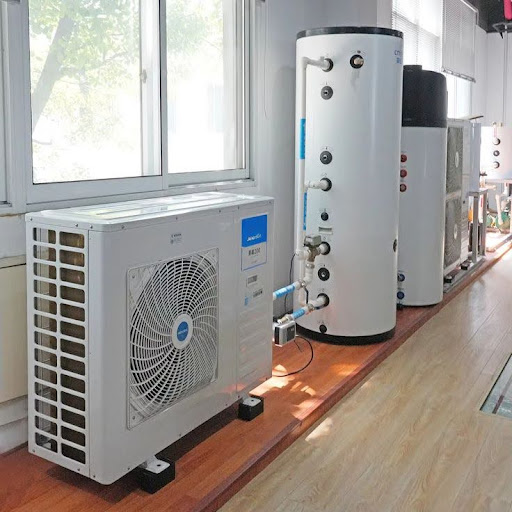

Follow the heat pump water heater manufacturer’s instructions to install the heat pump unit. It should be placed in a place with a solid foundation, positioned upright, and fixed with anchor bolts. There should be a reasonable distance from the surrounding wall.
The water storage tank must be installed on the ground, appropriately on a concrete slab that is large enough for its base; it cannot be hung on the wall. Ensure that the distance between the heat pump unit and the water storage tank is between 3-5 meters.

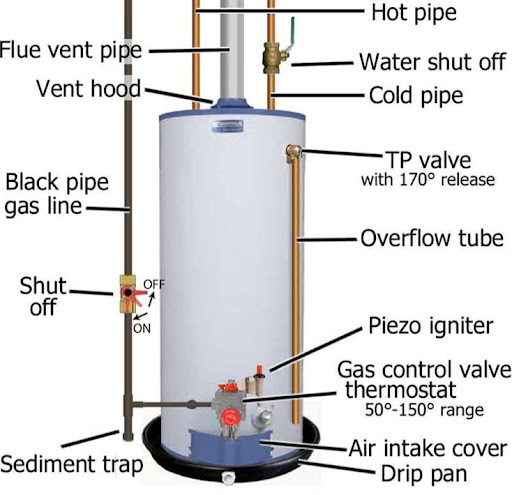

Connect the pipe (copper or PEX pipes) that supplies cold water to the bottom inlet of the tank using a shutoff valve and flexible connector. You can apply Teflon tape to threaded connections to ensure a tight seal.
Next, connect the hot water line from the tank’s top outlet to your home or office plumbing system. Install a temperature & pressure (T&P) relief valve to the top or side of the water tank, and connect it to a discharge pipe that runs to a safe drainage point (depending on your local building codes).
HPWHs produce condensate as they extract heat from the air, so connect a condensate drain line (usually ¾-inch PVC or flexible tubing) to the heating unit’s drain port. Direct the drain line to a floor drain or external drainage point, in a downward slope to ensure proper drainage.

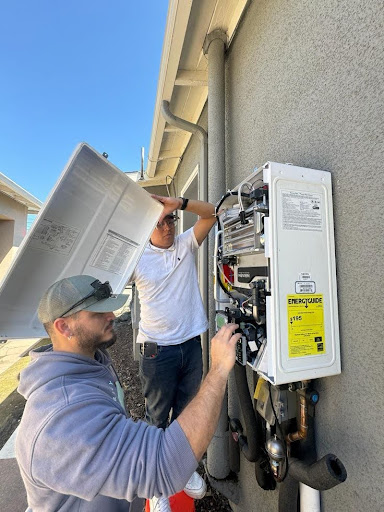

First, confirm if the circuit breaker and wiring of your home or business place match the requirement of the HPWH (e.g., 240V, 30A). If it does, then run appropriately sized electrical conduit and wire (use 10-gauge wire for the 30-amp 240V circuit) from the breaker panel of your home or office to the HPWH. After doing this, connect the wiring to the unit’s terminal block, following the manufacturer’s wiring diagram.
Ensure proper grounding while doing these connections and make sure power is off before connecting. You are advised to work with a licensed professional in connecting the heat pump water heater to your home or office’s electrical system.
Open the cold-water supply valve and fill the tank. While doing this, check for leaks along the plumbing connection. Power on the unit afterward by turning on the circuit breaker which powers it. Then, set the tank temperature initially to 120oF and set the unit to the desired operating mode (heat pump-only) via the control panel.
Once operation starts, verify if the unit is heating the cold water (most units take 1–2 hours to fully heat a tank). Also, check if it is drawing air and expelling cooler air. In addition, check if the T&P relief valve and condensate drain are functioning properly.
Here are a few practices that will ensure optimal operation and extend the lifespan of your newly installed HPWH.
Insulate the cold and hot water supply pipes to prevent heat loss and improve energy efficiency.
Ensure that the heating unit is at a reasonable distance from any flammable material.
Inspect the unit every 3-6 months for signs of leaks, corrosion, or damage to the exterior, piping, or electrical connections.
Clean or replace the air filter every 3-6 months to ensure efficient airflow and prevent dust build-up.
Ensure the area around the HPWH remains clean and clear of debris, dust, or obstructions to maintain proper airflow.
Flush the water storage tank once a year to prevent sediment from building up in it.
Turn off power at the circuit breaker before performing any maintenance to avoid electric shock.
A HPWH is a valuable investment for all homeowners, providing hot water while reducing your environmental footprint.
With the steps outlined above, you can successfully install heat pump water heater with no hassle. But, remember to follow safety guidelines and manufacturer instructions for a successful installation. Don’t hesitate to hire a licensed professional if you lack adequate experience with plumbing or electrical work.
