| Quantity: | |
|---|---|

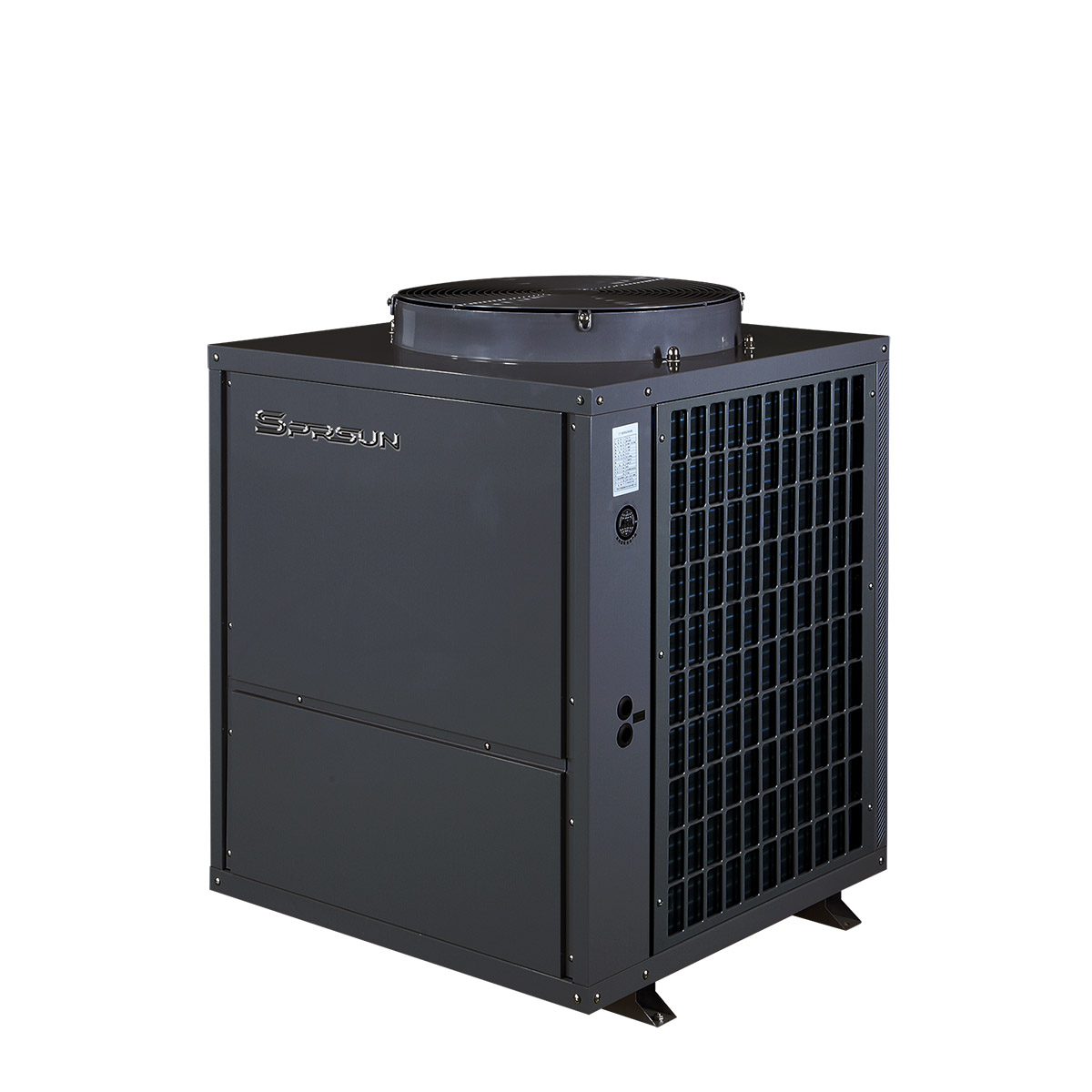

CGK/D-9; CGK/D-12
SPRSUN
| Model | CGK/D-9 | CGK/D-12 | |
| Power supply | V | 220-240V/50Hz/1ph | 380V～415V/50Hz/3ph |
| Heating capacity | KW | 10 | 12 |
| Input power | KW | 2.41 | 2.89 |
| COP | 4.15 | 4.15 | |
| Rated current | A | 11.2 | 5.5 |
| Max current | A | 15.1 | 7.4 |
| Max input power | KW | 3.4 | 4 |
| Fan motor power | W | 90 | 90 |
| Fan motor quantity | Piece | ||
| Water flow | L/h | 1911 | 2293 |
| Water rate | L/h | 215 | 258 |
| Water pressure drop | Kpa | ≤45 | ≤45 |
| Net weight | kg | 100 | 100 |
| Gross weight | kg | 106 | 106 |
| Noise | db | 51 | 52 |
| Condenser | Tube in shell heat exchanger/Double pipe exchanger | ||
| Refrigerant | R410A | ||
| Classification of waterproof | IPX4 | ||
| Electric shock proof grade | I | ||
| Pipe size (internalmmthread) | mm | DN25 | DN25 |
| Dimension | mm | 710*710*925 | 710*710*925 |
| Packing Dimension(L×D×H) | mm | 780*780*1075 | 780*780*1075 |
The information in this document is just for reference. Since the continuous improvement and control in the production process, the information contained in this document may be subject to change. Please refer to the nameplate on the machine for model specifications.
